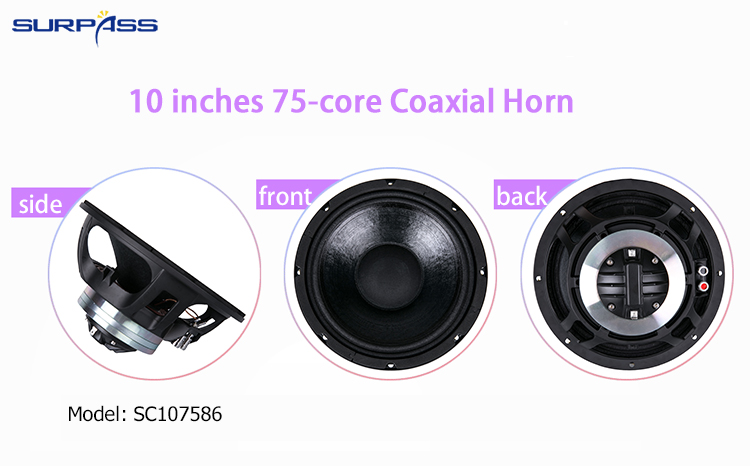

SC107586 10 inches 75-core Coaxial Horn
10 inches 75-core Coaxial Horn with High 44 core Low 65 core
10 inches 75-core Coaxial Horn with High 44 core Low 65 core
SC107586 10 inches 75-core Coaxial Horn Specification:
Model | SC107586 |
Description | 10 inches 75-core Coaxial Horn |
Installation aperture | About 231mm |
Outer diameter | About 263mm |
Diagonal screw hole | About 250mm |
Height | About 135mm |
Magnet | High 85 magnetism, low 124 magnetism |
Voice Coil | High 44 core, low 65 core |
Drum paper | Imported edged paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
Minimum Impedance | 6 ohm |
AES Rated Power | Treble 50 Watts /bass 250 Watts |
Maximum power | Treble 100 Watts /bass 500 Watts |

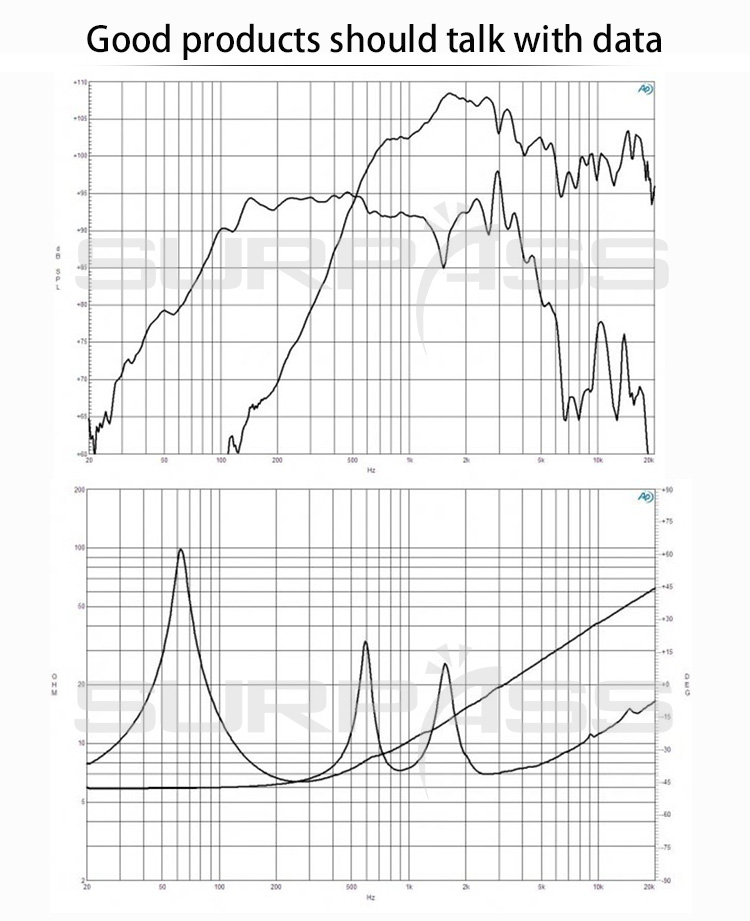

Sensitivity | Treble 95 dB /bass 104 dB (1W/1m) |
Frequency range | 65-18K Hz |
Resonant frequency | 63Hz |
Electrical Quality Factor Number | 0.44 |
Mechanical Quality Factor Value | 7.9 |
Total Quality Factor Number | 0.43 |
Effective Volume | 250 liters |
Vibration Area | 310cm2 |
Magnetic Force | 13.2Txm |
Effective Mobile Quality | 36g |
Place of Origin | Guangzhou, China |
Net Weight | About 3.3KG (No packaging) |
SC107586 10 inches 75-core Coaxial Horn Features:
1. Rich sense of hierarchy and permeability
The physical structure of coaxial loudspeaker is to design the tweeter and bass loudspeaker in the same speaker skillfully according to the law of sound expression.
2. High Quality Simple Connection Column
The use of convenient and high-quality terminals can effectively reduce the vibration and expansion of the magnetic field and reduce the distortion of the magnetic field.
3. Imagine the future, Professional Loudspeaker Brand
Reduce distortion and let music touch your soul.
