6.5 inches 50-core Neodymium Pure MF Driver
SM0655019 6.5 inches 50-core Neodymium Pure MF Driver Features:
1. Restore Real Good Sound
This 6.5-inch speaker is well-made and can not be overstated in terms of excellence.
2. Imported RMD paper basin from UK
The speaker is made of composite material with matte coating, which 100% eliminates interference from other loudspeakers in the horn by air to the vibration basin at work.
3. High and low frequencies have nothing to do with it
This speaker is a pure mediant speaker. It is only responsible for the most faithful restoration of its own voice.
4. Professional MF Driver, born for lover
Easily upgrade the sound quality level, enjoy the high quality music life, let yourself immediately hey up.
SM0655019 6.5 inches 50-core Neodymium Pure MF Driver Specification:
Model | SM0655019 |
Description | 6.5 inches 50mm Neodymium pure middle frequency Speaker |

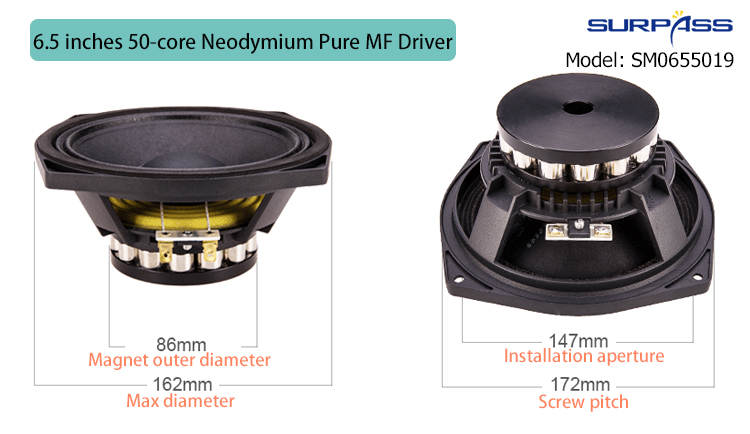

Installation aperture | About 147mm |
Diagonal screw hole | About 172mm |
Height | About 70mm |
Magnet | Neodymium |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 120 Watts |
Maximum power | 240 Watts |
Sensitivity | 94 dB/1W/1m |
Frequency range | 70-5K Hz |
Resonant frequency | 71Hz |
Electrical Quality Factor Number | 0.34 |
Mechanical Quality Factor Value | 12.5 |
Total Quality Factor Number | 0.33 |
Effective Volume | 7 dm3 |
Vibration Area | 132cm2 |
Magnetic Force | 11Txm |
Effective Mobile Quality | 18g |
Place of Origin | Guangzhou, China |
Net Weight | About 1KG (No packaging) |

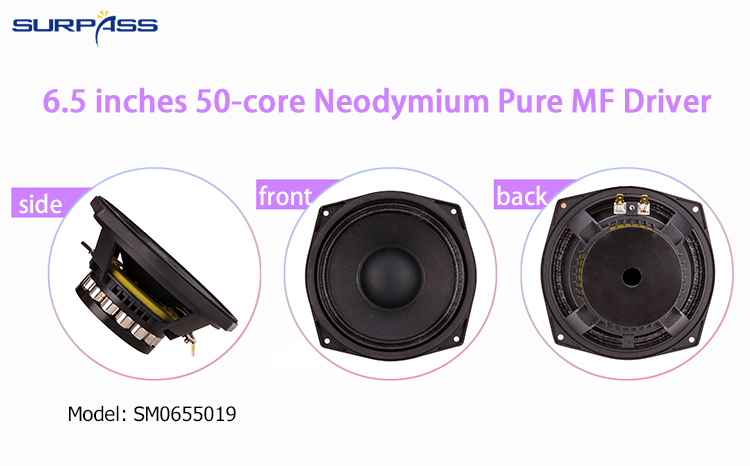

High Definition Pictures:
Brochure/Data Sheet:
SM06550196.5inches50mmPureMFDriver.pdf、
Operation Manual:
