6.5 inches 50mm Pure Middle Frequency Speaker
SM0655017 6.5 inches 50mm Pure MF Driver Features:
1. Strong magnetic material, clear sound quality
Delicate tone, close to the original sound, restore the true color, easily improve the quality of tone.
2. Imported RMD paper basin from UK
Quality imported paper basin, strong and durable, processing more optimally high frequency and low frequency of the loudspeaker, which makes the treble more imaginative.
3. Heavyweight 140 magnets
Using high-performance heavyweight magnet, the sound quality is mellow and natural.
4. Sweet mediant, never tired of listening
Easily upgrade the sound quality level, enjoy the high quality music life, let yourself immediately hey up.
SM0655017 6.5 inches 50mm Pure MF Driver Specification:
Model | SM0655017 |
Description | 6.5 inches 50mm pure middle frequency Speaker |
Installation aperture | About 145mm |
Diagonal screw hole | About 172mm |
Height | About 80mm |
Magnet | Ferrite |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 120 Watts |
Maximum power | 240 Watts |
Sensitivity | 93 dB/1W/1m |
Frequency range | 70-5K Hz |
Resonant frequency | 97Hz |
Electrical Quality Factor Number | 0.39 |
Mechanical Quality Factor Value | 5.5 |
Total Quality Factor Number | 0.33 |
Effective Volume | 5 dm3 |
Vibration Area | 132cm2 |
Magnetic Force | 12.9 Txm |
Effective Mobile Quality | 15.4g |
Place of Origin | Guangzhou, China |
Net Weight | About 3.2KG (No packaging) |

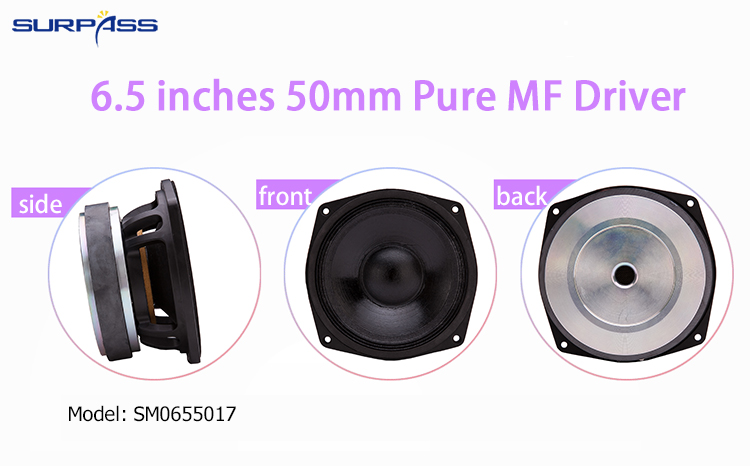

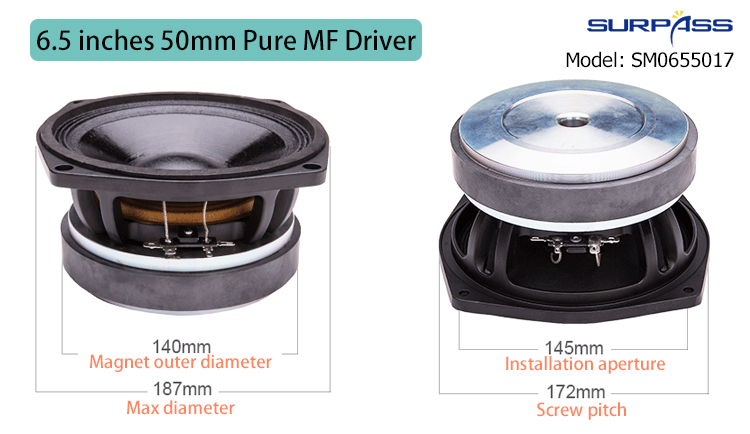

High Definition Pictures:
Brochure/Data Sheet:
SM06550176.5inches50mmPureMFDriver.pdf、
Operation Manual:
