Neodymium magnet 5 inches 38mm MF Driver
SM053889 5 inches 38mm MF Driver Features:
1. The timbre is warm and thick
The sound is natural and audible, the mediant is full and sensitive, flexible and responsive.
2. Imported RMD paper basin from UK
Quality imported paper basin, strong and durable, processing more optimally high frequency and low frequency of the loudspeaker, which makes the treble more imaginative.
3. Nd magnetic high performance magnetic steel
Using high performance Nd magnet steel, small size, light weight, easy to carry.
4. Surging Power Design
The MF aspect of this unit is clear and pleasant, bright but not spiky, which makes the sound penetrating and explosive at the same time.
SM053889 5 inches 38mm MF Driver Specification:
Model | SM053889 |
Description | 5 inches 38mm middle frequency Speaker |

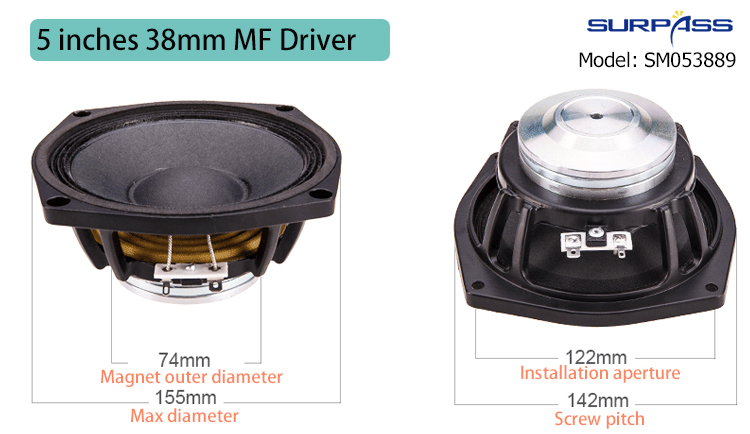

Installation aperture | About 122mm |
Diagonal screw hole | About 142mm |
Height | About 65mm |
Magnet | Neodymium magnet |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 50 Watts |
Maximum power | 160 Watts |
Sensitivity | 92 dB/1W/1m |
Frequency range | 8-7K Hz |
Resonant frequency | 80Hz |
Electrical Quality Factor Number | 0.37 |
Mechanical Quality Factor Value | 9.2 |
Total Quality Factor Number | 0.36 |
Effective Volume | 4.3 dm3 |
Vibration Area | 95cm2 |
Magnetic Force | 9.2 Txm |
Effective Mobile Quality | 11g |
Place of Origin | Guangzhou, China |
Net Weight | About 0.7KG (No packaging) |

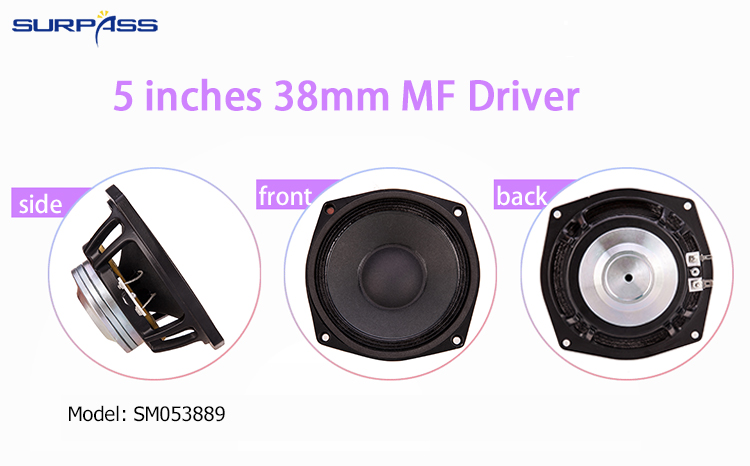

High Definition Pictures:
Brochure/Data Sheet:
SM0538895inches38mmMFDriver.pdf、
Operation Manual:
