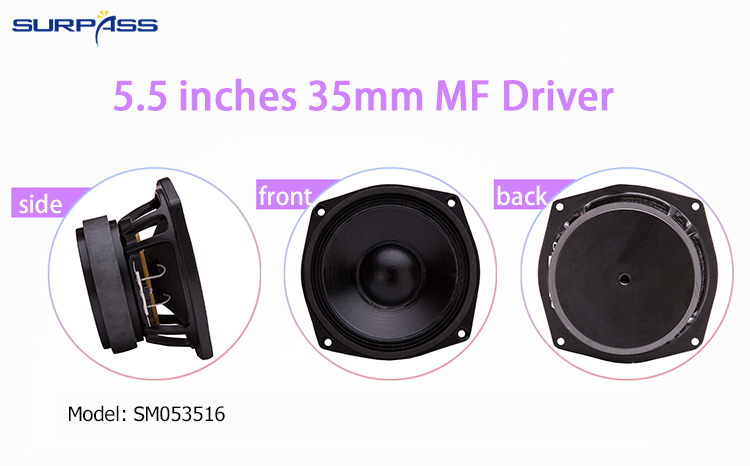

SM053516 5.5 inches 35mm MF Driver
5.5 inches 35mm MF Driver
5.5 inches 35mm MF Driver
SM053516 5.5 inches 35mm MF Driver Specification:
Model | SM053516 |
Description | 5.5 inches 35mm MF speaker |
Nominal Diameter | 135mm |
Overall Diameter | Φ119*137mm |
Depth | 68mm |
Magnet material | Ferrite |
Voice Coil Diameter | 35mm |
Voice Coil Material | Aluminium Edge Wound |
Rated Impedance | 8 ohm |
DC Impedance | 6.8 ohm |
Power handing capacity | 60 Watts |
Sensitivity | 93 dB/1W/1m |
Frequency range | 120-1.2K Hz |
Resonant frequency | 120Hz |
Electrical Quality Factor Number | 0.67 |
Mechanical Quality Factor Value | 4.9 |
Total Quality Factor Number | 0.59 |
Effective Cas air load | 2.86 liters |
Effective piston area | 0.007m2 |
BL factor | 5.4 T.M |
Effective Mobile Quality | 29g |
Place of Origin | Guangzhou, China |
Net Weight | 20KG (16 units) |
SM053516 5.5 inches 35mm MF Driver Features:
1. Full tone, exquisite and rich
Quality imported paper basin, strong and durable, processing more optimally high frequency and low frequency of the loudspeaker, which makes the treble more imaginative.
2. Aerospace Magnetism Professional Horn
As far as electrical properties are concerned, ferrites have high dielectric properties and magnetic conductivity.
3. Love music, impeccable
Designers and acoustics experts create professional speakers that focus on acoustic performance, bringing you two enjoyments of vision and hearing
