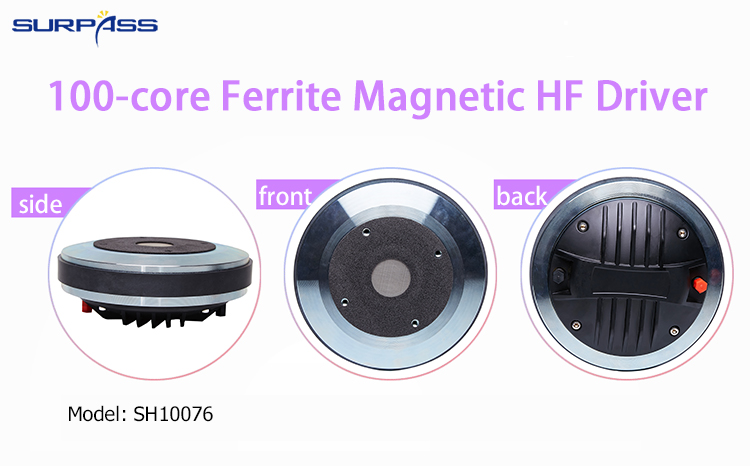

SH10076 100-core Ferrite Magnetic HF Driver
100-core Ferrite Magnetic Tweeter
100-core Ferrite Magnetic Tweeter
SH10076 100-core Ferrite Magnetic HF Driver Specification:
Model | SH10076 |
Description | 100-core Ferrite Magnetic Tweeter |
Throat diameter | 50mm |
Diagonal screw hole | 100mm |
Magnet | Ferrite 190 Magnetism |
Voice coil | 100-core copper clad aluminium coil |
Height | About 7.2cm |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 120 Watts |
Maximum power | 240 Watts |
Sensitivity | 107.5 dB/1W/1m |
Frequency range | 0.5K-18K Hz |
Place of Origin | Guangzhou, China |
Net Weight | 6.3KG |
SH10076 100-core Ferrite Magnetic HF Driver Features:
1. High frequency and exquisite, strong penetration
The improved 100-core tweeter has more excellent analytical ability and high sensitivity.
2. Copper-clad Aluminum flat wire voice coil
The tweeter is thick without noise, rich in sound quality, clear and clean, bright and prominent, rich and full and not stiff.
3. Thickening Neodymium magnetism, Ultra high power
This tweeter is designed with 100 voice coils and has high temperature resistance. The high-frequency effect of the large 50mm throat tweeter is incomparable to that of the small tweeter. The tweeter is clear loud and penetrating.
4. Love music, impeccable
Designers and acoustics experts create professional speakers that focus on acoustic performance, bringing you two enjoyments of vision and hearing
