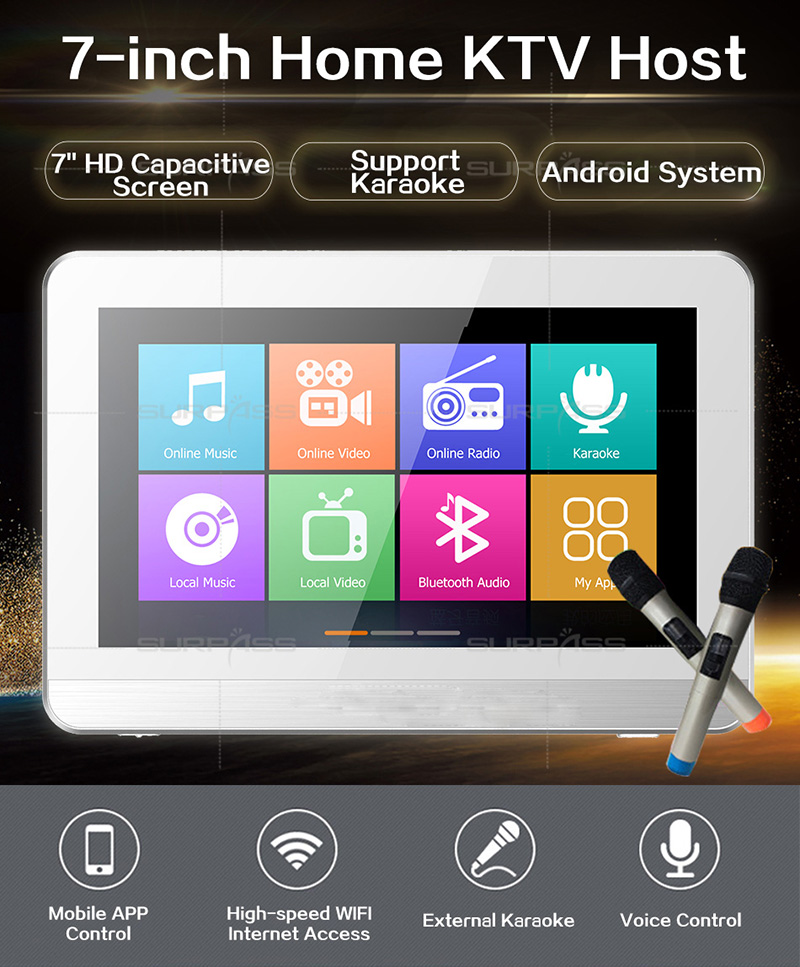

SP-PW7425K Intelligent Home Video and Audio System
Intelligent Home Video and Audio System
Intelligent Home Video and Audio System
Intelligent Home Video and Audio System Features:

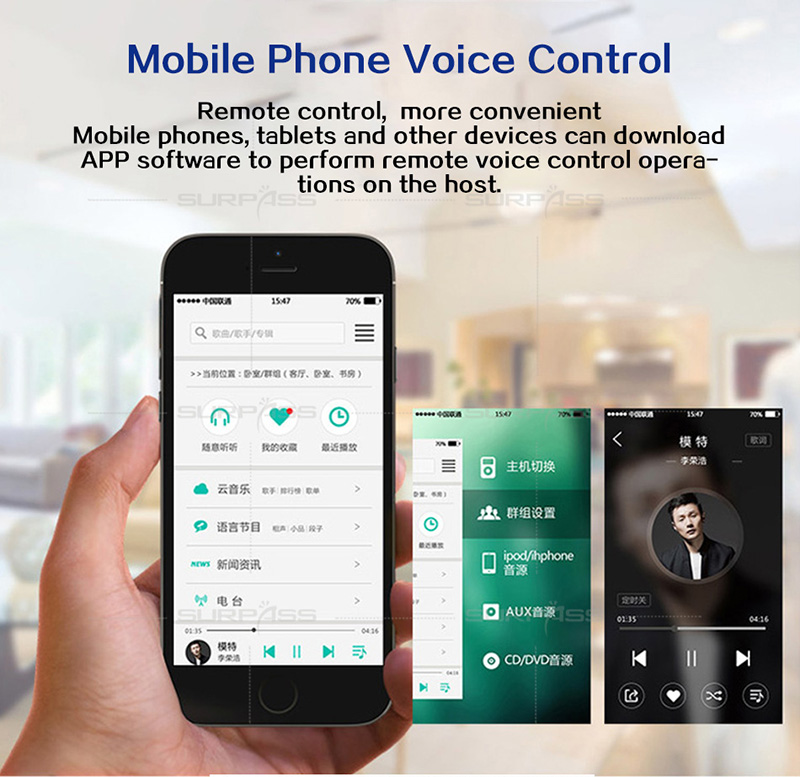

1. APK software supports remote control of mobile devices such as mobile phones and Pads;
2. Support DLNA, Airplay, Qplay and other protocols, can push music, video, picture files, APK to the host for playback or installation;
3. App installed on mobile devices can turn mobile devices into wireless mouse, flying mouse, wireless touch pad, remote control, wireless keyboard, wireless camera, wireless microphone, and the same screen image;

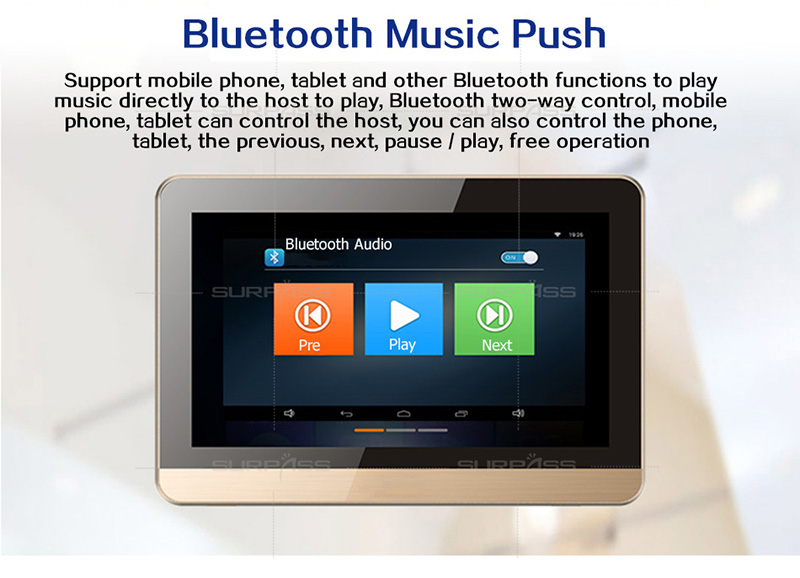

4. Bluetooth Player, the host can control the Bluetooth Player device to switch music;
5. Support trigger doorbell function;
6. Support Linkage Trigger Playing Music;
7. Support linkage trigger shutdown;
8. Support timing output level signal interacting with other devices;
9. Supporting external devices to control the machine through 485;
10. Timing Switch-on, Self-timed Start-up Song;

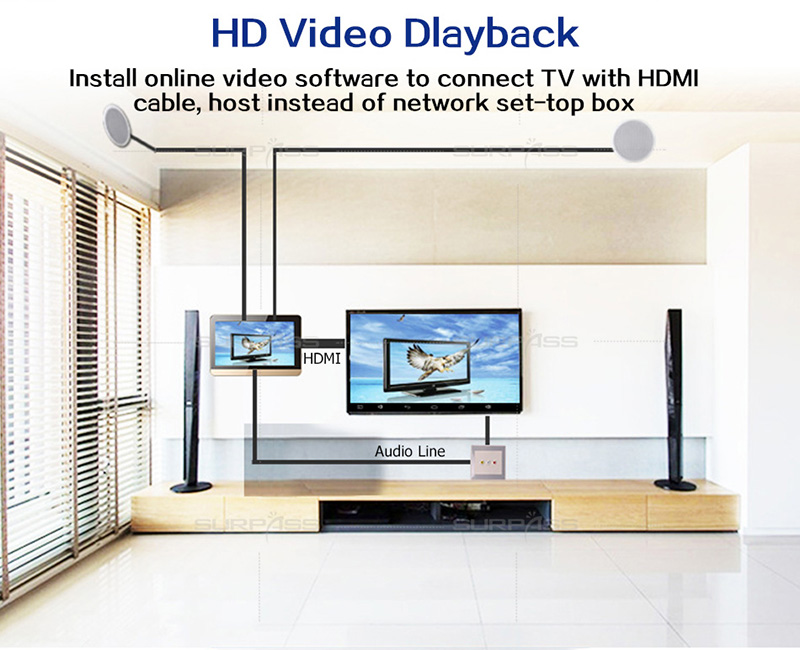

11. Support network set-top box function, network movies, TV programs;
12. APP installation.

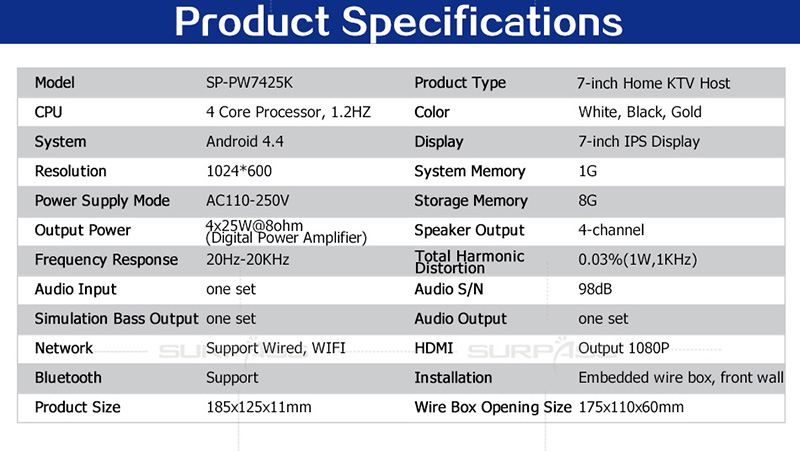

Intelligent Home Video and Audio System Specification:

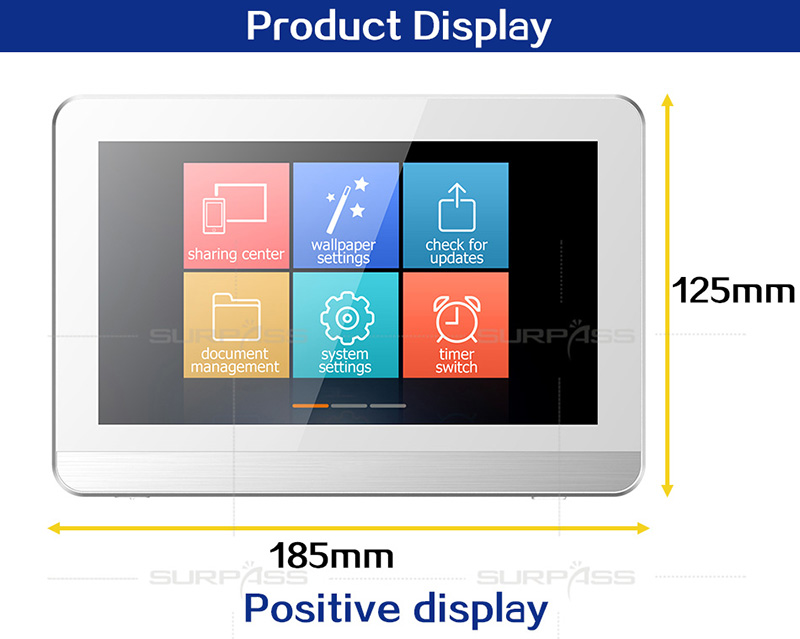

Size | L185MM*W125*H11MM |
Weight | 1.05KG |
Wire box opening size | 175*110*60MM |
Operating system | Android 4.4 System |
CPU Model | Cortex1.2G |
CPU Frequency | 1.2G |
CPU Core Number | Quad core |

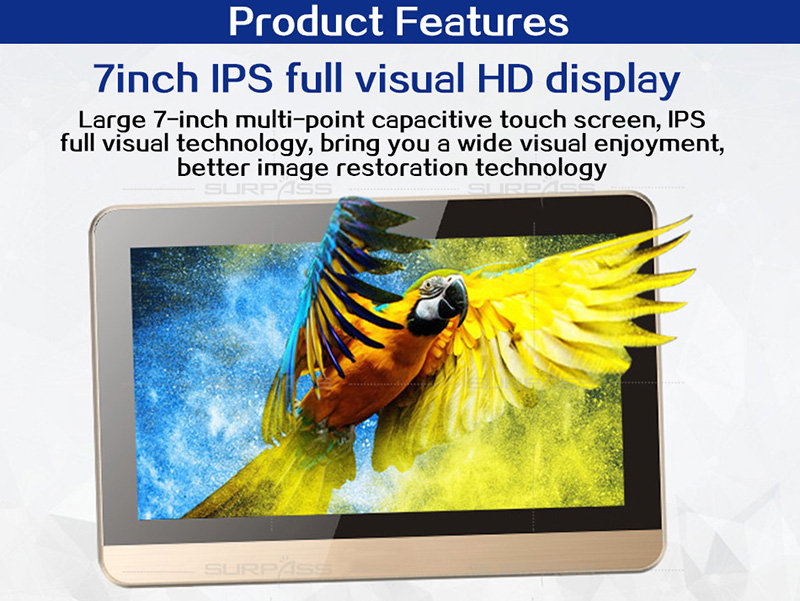

Main screen size | 7inch |
Resolution | 1024*600 |
Screen material | IPS（Full perspective） |
Touch screen | Multipoint Touch Capacitance Screen |
ROM | 1GB |
Extended TF Card Memory | 8GB |
USB | 2.0 interface, readable 120G |
Wired net port | Support |
WIFI | Support |
Output power | 4*25W（Yamaha Digital Amplifier） |
Output impedance | 4-8Ω |
Total harmonic distortion | 0.03%(1W.1KHZ) |
Frequency response | 20Hz-20KHz |
Audio Signal-to-Noise Ratio | 98db |

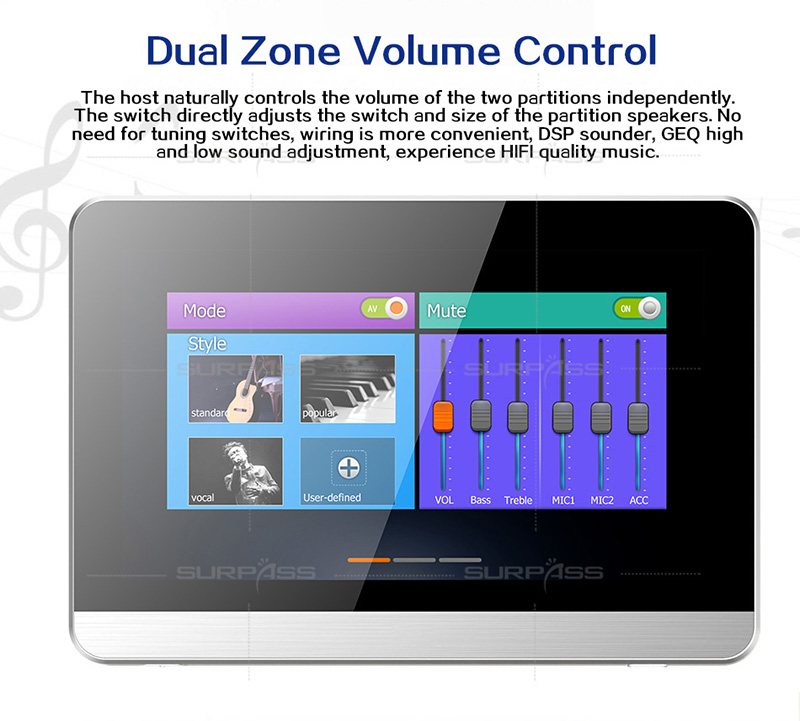

Partition | Two groups of loudspeaker volume zoning adjustment |
Speaker | Four-channel output, two sets of output can be connected to eight fixed-impedance horns |
Karaoke | Support |
Voice choose song | Support |
Bluetooth | Version4.0 |
Audio Format | MP3,WAV,WMA,FLAC,APE,,ACC,AC3,OGG, etc |
Video Format | MPEG-1/2/3/4，RM/RMVB,WMV,MOV,MK,VOB,AVI,3GP,H,264, etc |
Power Input | AC110-250V |
Audio Input | AUX，one set |
Audio Output | one set |
Simulation Subwoofer Output | one set |
HDMI | High Definition Video Output 1080P |
Infrared remote control | Support |
Packing | Standard accessories: 1 Instructions+Warranty card, A Black Remote Controller, 1 Wire boxes+mounting bracket+1 bags of screws+1 pair of microphones |
Single package | full telescope +EVA Internal support |
Single package Size | 210*150*85MM |
Single package Weight | 1.2KG |
Whole box package | Loading rate：sets/CTN 10 |
Whole box package Size | 215*430*305MM |
Whole box package Weight | 12.2KG |
Place of Origin | Guangzhou, China |

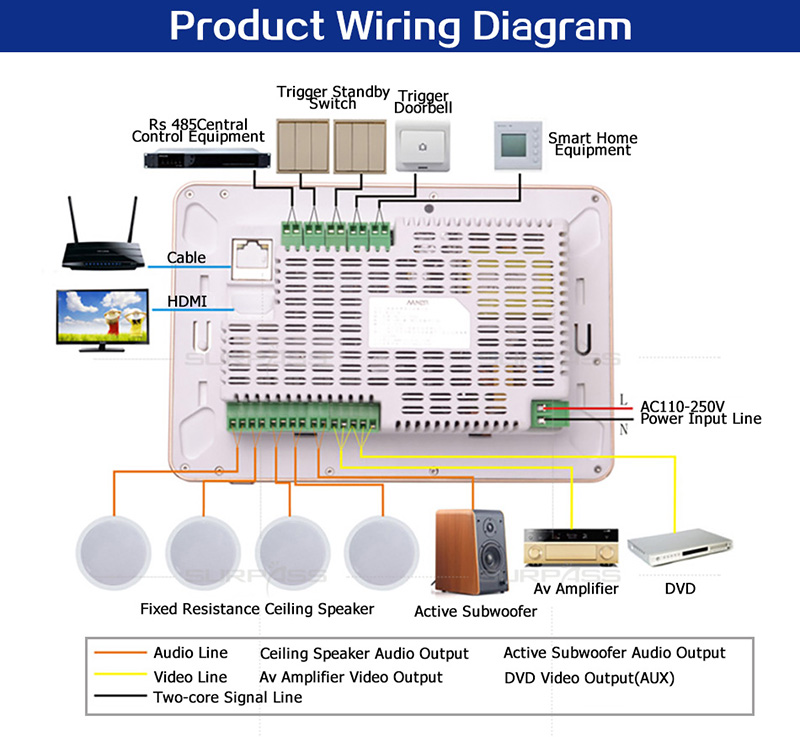

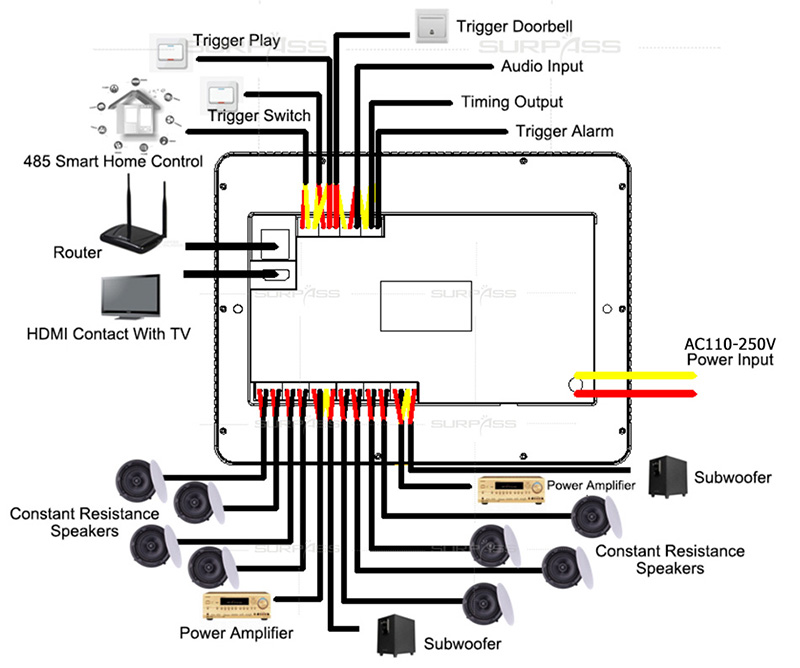

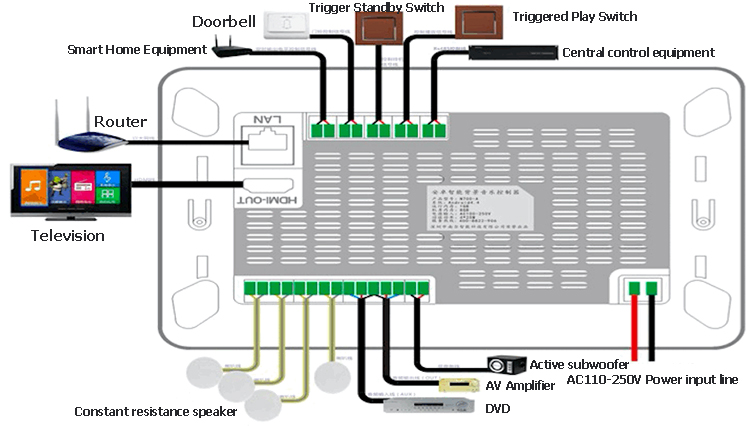

Intelligent Home Video and Audio System Installation wiring diagram
