SP-PW7425V Android Family Film Music System
Android Family Film Music System
Android Family Film Music System
Android Family Film Music System Features:
1. Cortex1.2G Quad core CPU,10inch multipoint Touch Capacitance Screen，1024*600ＩＰＳHD Resolution Display Screen;
2. System: Android 4.4 System;
3. Speech Algorithms，Linear Four Digital Silicon Wheat，Kuwo music content docking;
4. Voice far-field wake-up, music playing, weather query, alarm clock settings, event reminders, mathematical operations, storytelling, etc.
5. Multi-protocol Intelligent Home Docking, 485, ZIGBEE, WIFI, etc.
6. Support DLNA, Airplay, Qplay, etc. agreement, Mobile music, video, pictures, files, APK can be pushed to the host for playback or installation;

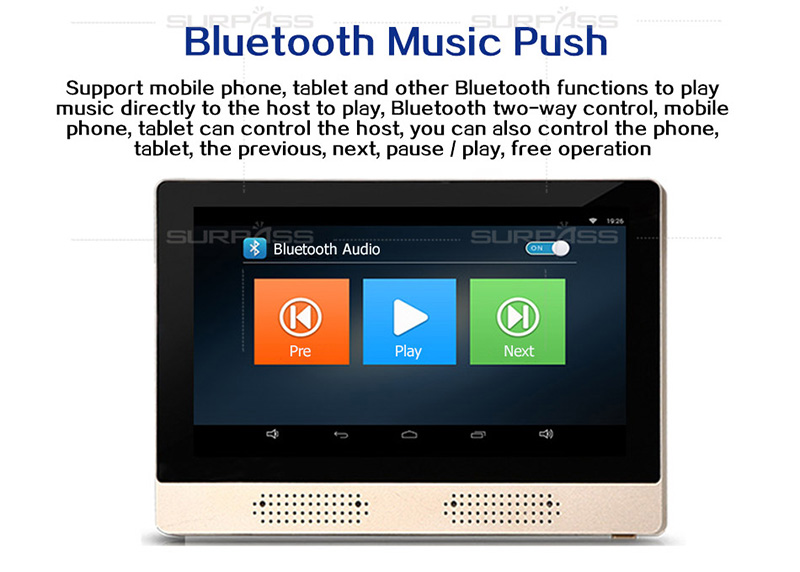

7. Support external Bluetooth devices such as mobile phones for audio playback，Two-way control for playing music from external Bluetooth devices，Bluetooth can be set to turn on or off;
8. Supporting wireless microphone function，Supporting family karaoke（Selection function）;

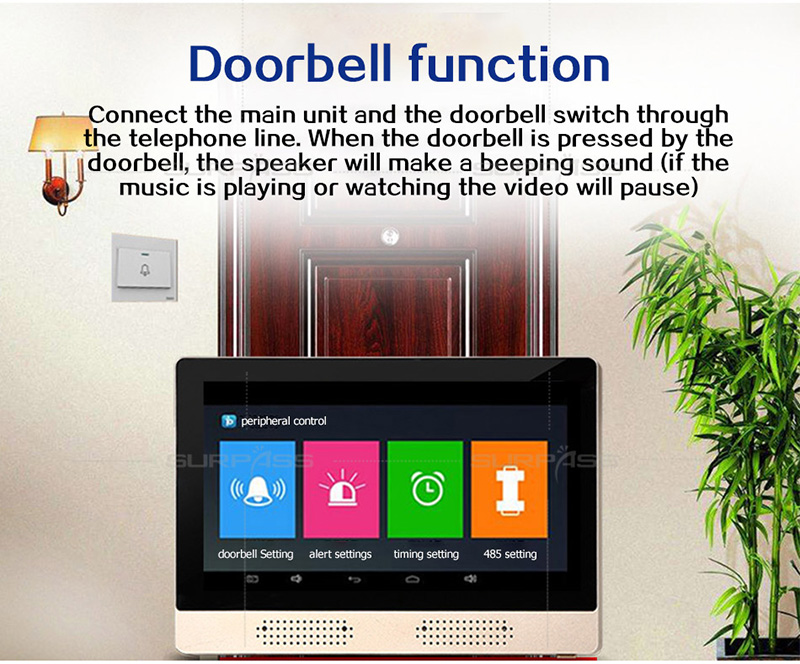

9. Support trigger doorbell function;
10. Four-channel speaker output;
11. Support Audio input and output；Support subwoofer output;
12. Support TF card and OTG 2.0USB interface, USB External Hard Disk.

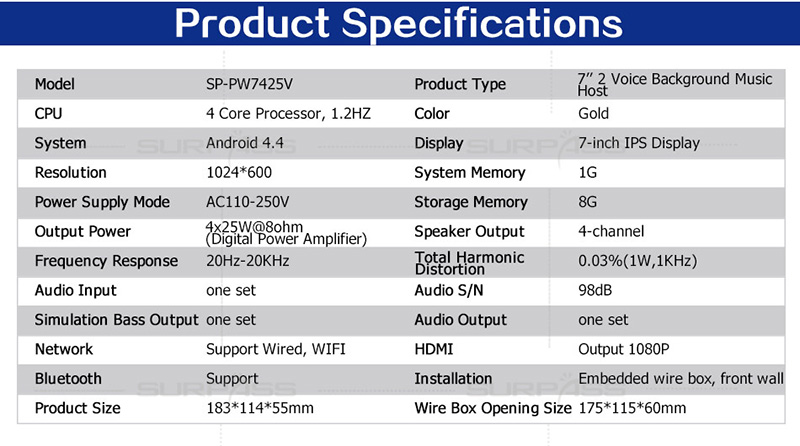

Android Family Film Music System Specification:

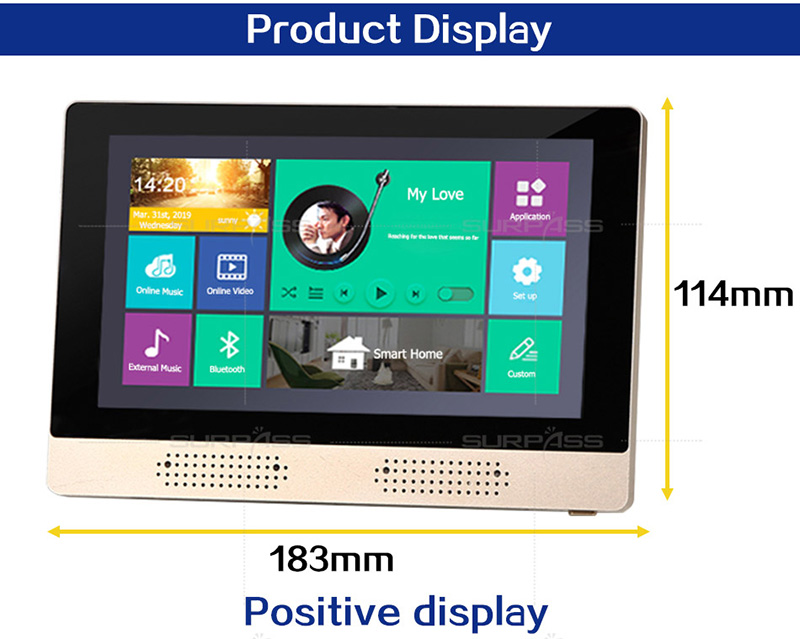

Size | L185*W124.5*H12MM |
Weight | 1.05KG |

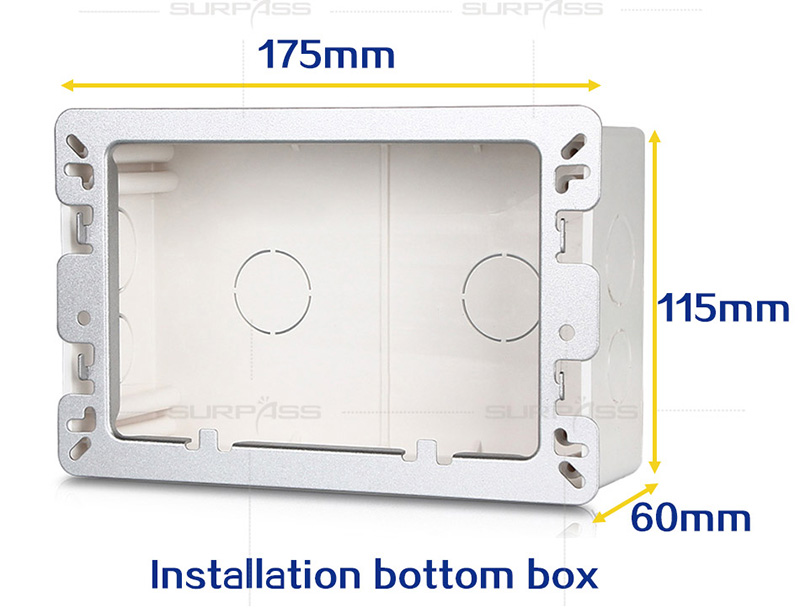

Wire box opening size | 175*110*60MM |
Operating system | Android 4.4 System |
CPU Model | Cortex1.2G |
CPU Frequency | 1.2G |
CPU Core Number | Quad core |

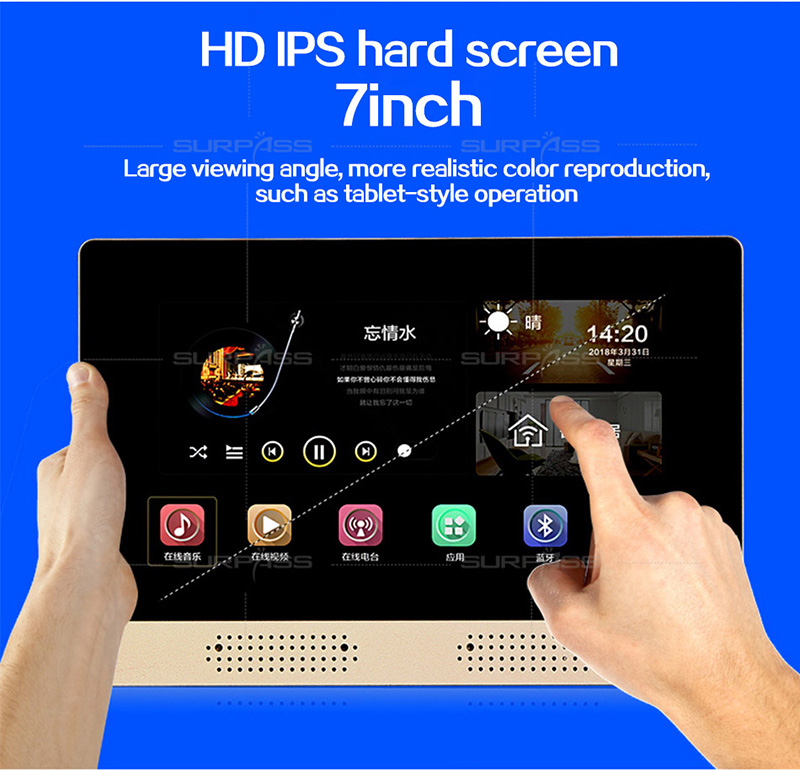

Main screen size | 7inch |
Resolution | 1024*600 |
Screen material | IPS（Full perspective） |
Touch screen | Multipoint Touch Capacitance Screen |
ROM | 1GB |
Extended TF Card Memory | 8GB |
USB | MICRO USB |
Wired net port | Support |
WIFI | Support |
Output power | 4*25W（Yamaha Digital Amplifier） |
Output impedance | 4-8Ω |
Total harmonic distortion | 0.03%(1W.1KHZ) |
Frequency response | 20Hz-20KHz |
Audio Signal-to-Noise Ratio | 98db |
Speaker | Four-channel output, two sets of output can be connected to eight fixed-impedance horns |
Bluetooth | Version4.0 |
Voice | HKUST News Flight 4MIC5-8m Far-field Wake-up, Wake-up Words: Ding Ding Ding Ding Ding |
Music Resources | Authentic Kuwo Music |

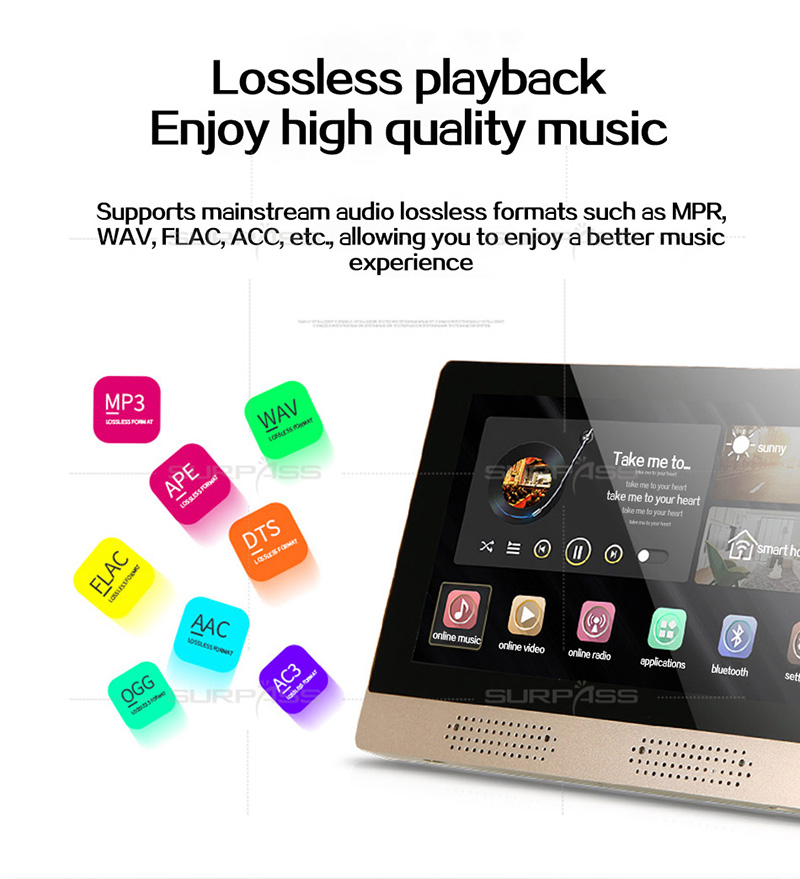

Audio Format | MP3,WAV,WMA,FLAC,APE,,ACC,AC3，OGG, etc |
Video Format | MPEG-1/2/3/4，RM/RMVB,WMV,MOV,MK,VOB,AVI,3GP,H,264, etc |
Power Input | AC110-250V |
Audio Input | AUX，one set |
Audio Output | one set |
Simulation Subwoofer Output | one set |
Trigger the Doorbell | Support（Customizable） |
Packing | Standard accessories: 1 Instructions+Warranty card, A Black Remote Controller, 1 Wire boxes+mounting bracket+1 bags of screws |
Single package | full telescope +EVA Internal support |
Single package Size | 212*152*86MM |
Single package Weight | 1.2KG |
Whole box package | Loading rate：sets/CTN 10 |
Whole box package Size | 215*430*305MM |
Whole box package Weight | 12.2KG |
Place of Origin | Guangzhou, China |

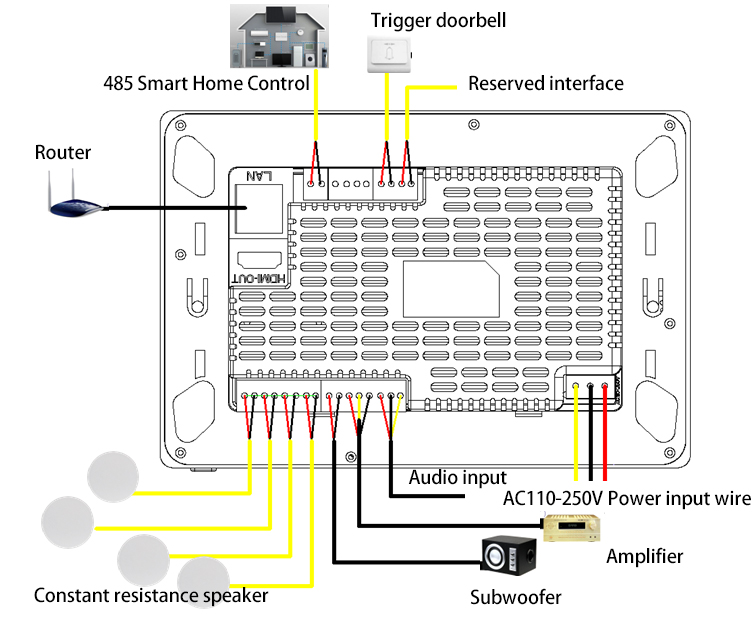

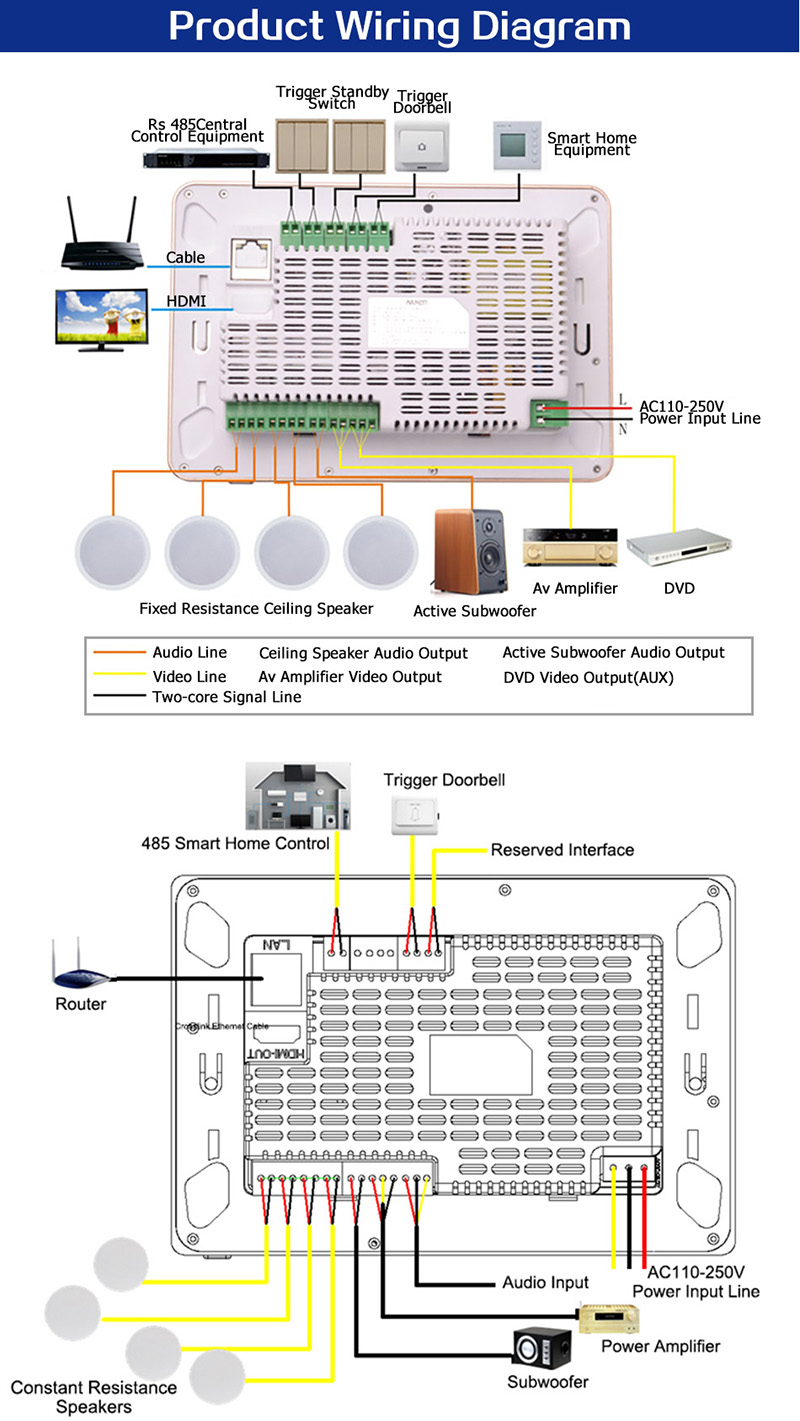

Android Family Film Music System Installation wiring diagram
