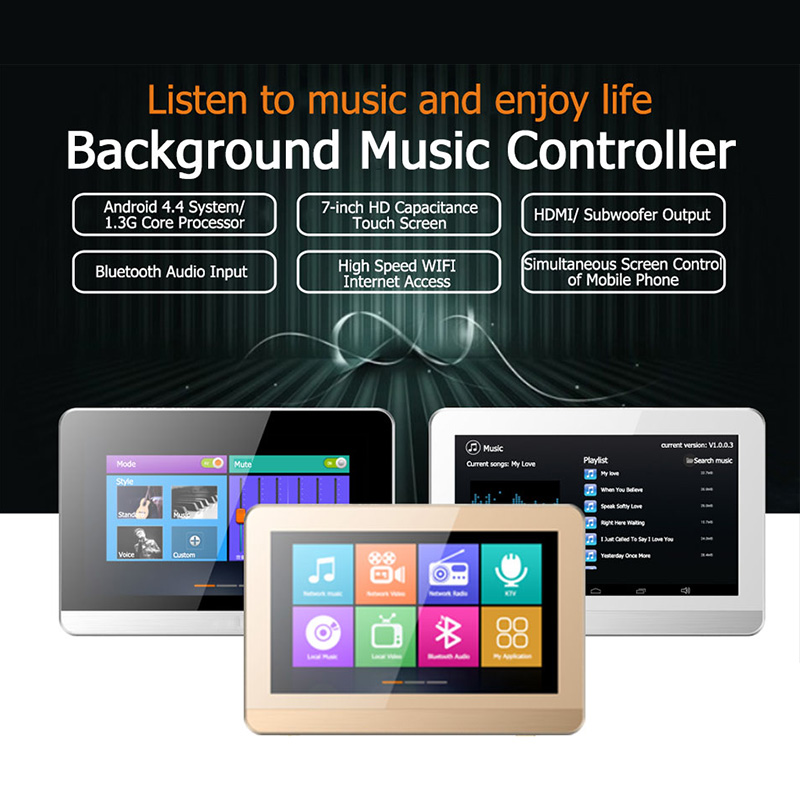

SP-PW7425A Android Home Music System Controller
Android Home Music System Controller
Android Home Music System Controller
SP-PW7425A Android Home Music System Controller Features:
1. APK software supports remote control of mobile devices such as mobile phones and tablets.
2. Support DLNA, Airplay, Qplay and other protocols, can push mobile phone music, video, photo files, APK to the host for playback or installation.
3. Mobile device installation APP can turn mobile device into wireless mouse, flying mouse, wireless touchpad, remote control, wireless keyboard, wireless camera, wireless microphone, mirror image.
4. Bluetooth playback, the host can control the Bluetooth playback device for music switching.

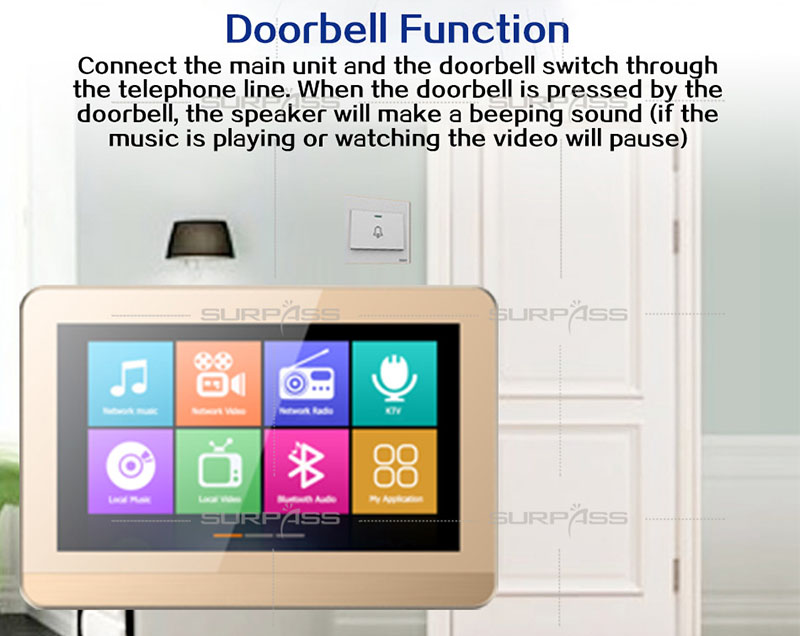

5. Support trigger doorbell function.
6. Support linkage trigger to play music.
7. Support linkage trigger shutdown.
8. Support timing output level signal linkage with other devices.
9. Support external devices to control the unit through RS485.
10. Time switch machine, custom timing boot song.
11. Support network set-top box features, online movies, TV shows.
12. APP installation.

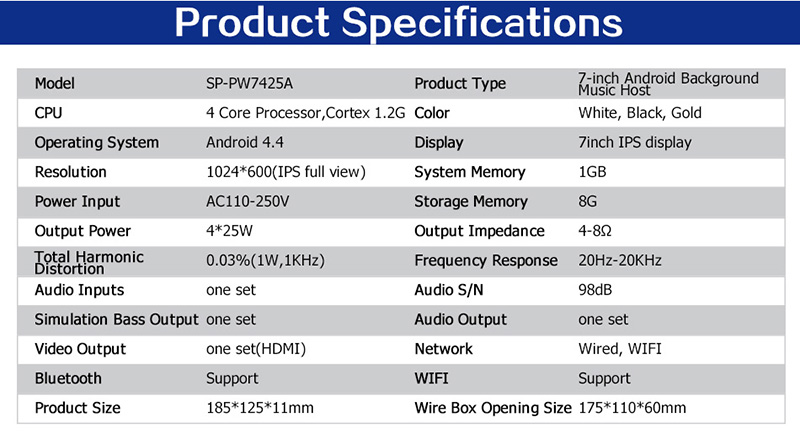

SP-PW7425A Android Home Music System Controller Specification:
Size | L185MM*W125*H11MM |
Weight | 1.05KG |
Wire box opening size | 175*110*60MM |
Operating system | Android 4.4 System |
CPU Model | Cortex1.2G |
CPU Frequency | 1.2G |
CPU Core | 4 core |
Main screen size | 7inch |
Resolution | 1024*600 |
Screen material | IPS（Full perspective） |
Touch screen | Multipoint Touch Capacitance Screen |
ROM | 1GB |
Extended TF Card Memory | 8GB |
USB | 2.0 port，can read 120G |
Wired port | Support |
WIFI | Support |
Output power | 4*25W（Yamaha Digital Amplifier） |
Output impedance | 4-8 ohm |
Total harmonic distortion | 0.03%(1W.1KHZ) |
Frequency response | 20Hz-20KHz |
Audio Signal-to-Noise Ratio | 98db |

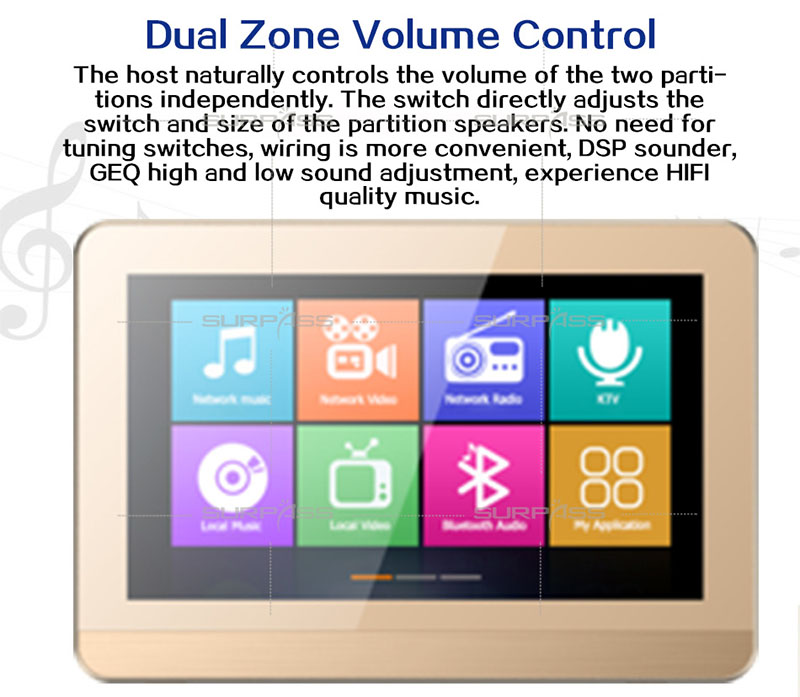

Partition | Two sets of speaker volume zone adjustment |
Speaker | Four-channel output, two sets of outputs can be connected to 8 ohm speakers |
Bluetooth | Version4.0 |
Voice song | Support |
Audio Format | MP3,WAV,WMA,FLAC,APE,,ACC,AC3,OGG, etc |
Video Format | MPEG-1/2/3/4，RM/RMVB,WMV,MOV,MK,VOB,AVI,3GP,H,264, etc |
Power Input | AC110-250V |
Audio Input | AUX，one set |
Audio Output | one set |
Simulation Subwoofer Output | one set |
HDMI | High Definition Video Output 1080P |
Infrared remote control | Support |
Packing | Accessories: 1 user manual, 1 remote controller, 1 wire cabinet +1 installation stand+1 pack of screws |
Inner box Dimension | 210*150*85MM |
Inner box Weight | 1.2KG |
10pcs/CTN Dimension | 215*430*305MM |
10pcs/CTN Weight | 12.2KG |
Place of Origin | Guangzhou, China |

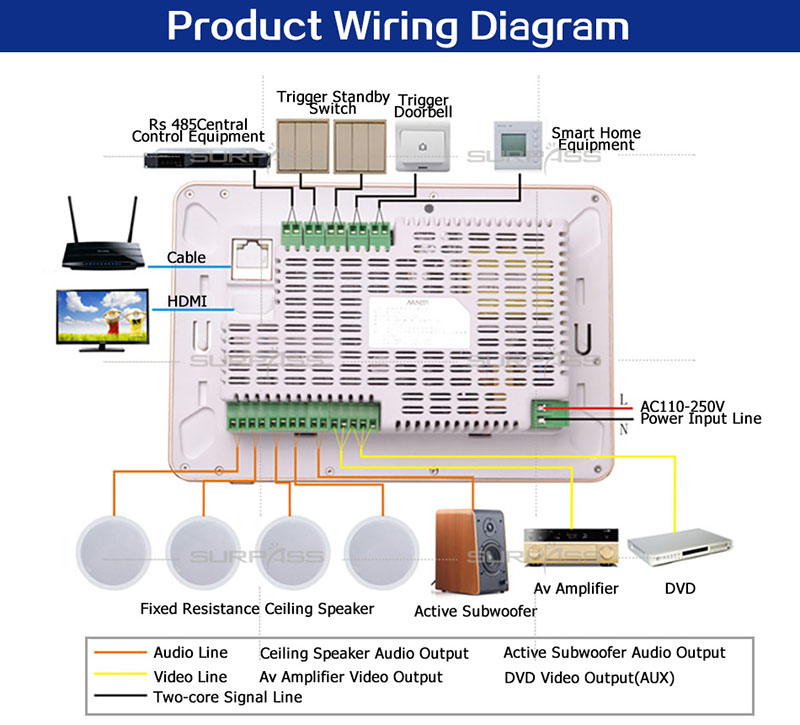

SP-PW7425A Android Home Music System Controller Installation Wiring Diagram
