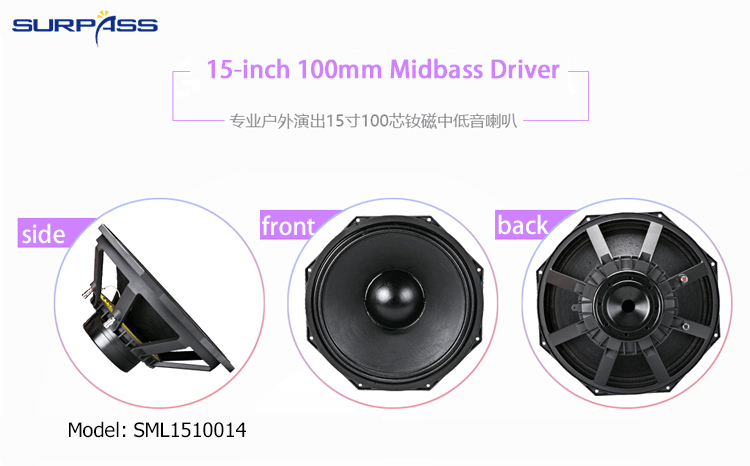

SML1510014 15-inch 100mm Midbass Driver
15-inch 100-core midbass speaker 15-inch 100mm Midbass Driver
SML1510014 15-inch 100mm Midbass Driver Specification:
Model | SML1510014 |
Description | 15-inch 100-core midbass speaker |

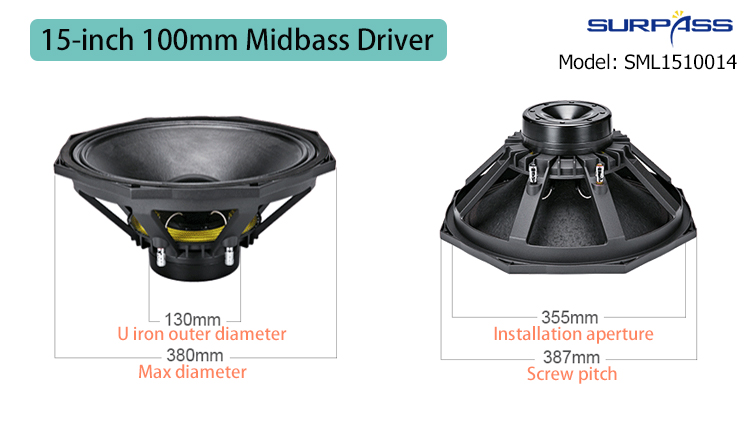

Installation aperture | About355mm |
Diagonal screw hole | About 387mm |
Height | About 175mm |
Magnet material | Ferrite |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 500 Watts |
Maximum power | 1K Watts |
Sensitivity | 96 dB/1W/1m |
Frequency range | 40-3K Hz |
Resonant frequency | 37Hz |
Electrical Quality Factor Number | 0.25 |
Mechanical Quality Factor Value | 12.2 |
Total Quality Factor Number | 0.24 |
Effective Volume | 250 liters |
Vibration Area | 892.0cm2 |
Magnetic Force | 22.2 Txm |
Effective Mobile Quality | 95g |
Place of Origin | Guangzhou, China |
Net Weight | About 6.5KG (No packaging) |
SML1510014 15-inch 100mm Midbass Driver Features:
1. Excellent performance of Nd magnetic speaker
Make the whole sound field wider, ensure the service life, sound quality clear and no noise
2. Thickening and overstriking basin frame
Sound transmission far, balanced audio band, it can do well at any time, clear and beautiful sound quality without distortion
3. NdFeB magnet
Neodymium magnetism can obtain better magnetic density while guaranteeing heat dissipation.
4. Strong motivation, shock feeling
Focus on speakers manufacture for 11 years, this unit is manufactured by imported 97 magnetic octagonal speaker, the bass effect is powerful and shocking and the midbass is crisp and comfortable.
