SML1510013 15-inch 100mm Midbass Driver
600 Watts 15-inch 100mm Midbass Driver
SML1510013 15-inch 100mm Midbass Driver Specification:
Model | SML1510013 |
Description | 15-inch 100-core midbass speaker |

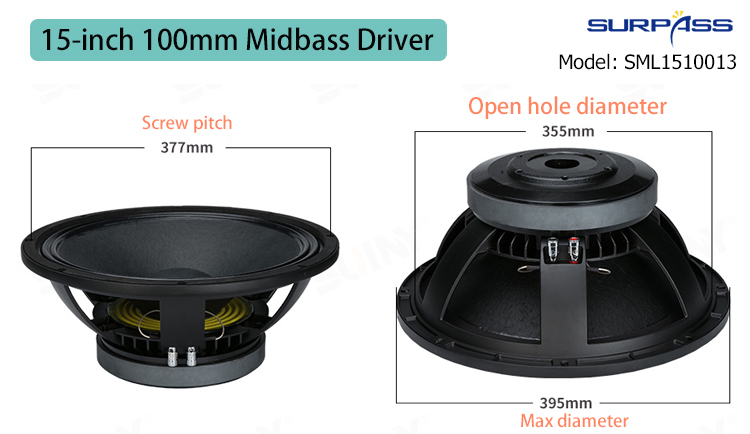

Outer diameter | About 395mm |
Diagonal screw hole | About 374mm |
Installation aperture | About 352mm |
Height | About 177mm |
Magnet material | Ferrite 220 magnetism |
Voice coil | 100-core pure copper coil |
Paper basin material | Imported M-edged basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 600 Watts |
Maximum power | 1.2K Watts |
Sensitivity | 97 dB/1W/1m |
Frequency range | 40-2.5K Hz |
Resonant frequency | 37Hz |
Electrical Quality Factor Number | 0.25 |
Mechanical Quality Factor Value | 12.2 |
Total Quality Factor Number | 0.24 |
Effective Volume | 250 liters |
Vibration Area | 855.0cm2 |
Magnetic Force | 22.2 Txm |
Effective Mobile Quality | 95g |
Place of Origin | Guangzhou, China |
Net Weight | About 13KG (No packaging) |
SML1510013 15-inch 100mm Midbass Driver Features:
1. Constant temperature magnetron cooling hole
Enjoy the song and give you a more realistic voice.
2. It's so powerful that you can't help dancing.
This 15-inch bass speaker 220 Magnetically Super Shock, 600W rated power is very shocking, the sound is thick and diffusive, that kind of delicate and gorgeous, full of air feeling cover all at a glance, excellent sound quality.
3. We have only one goal: to motivate our audience
High-end 100-core Nd-magnetic bass full-frequency speaker, basin stand use 395mm reinforced cast aluminium material, loose-pressed imported paper basin. The voice coil is made of 100-core Taiwan pure six-bit copper-clad aluminium coil, high temperature resistance and good conductivity.
