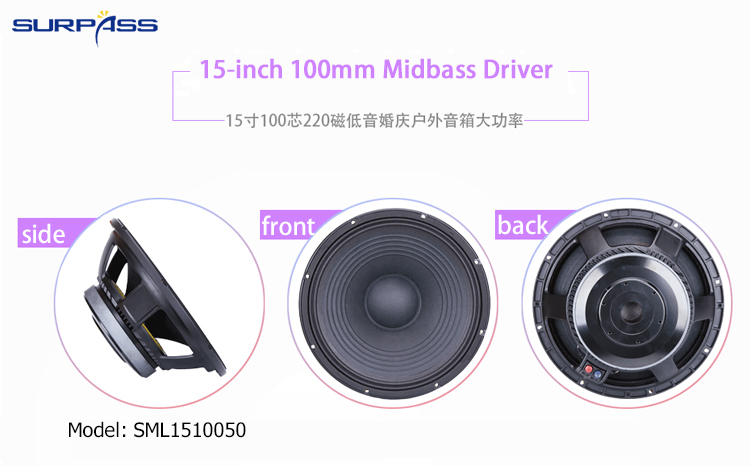

SML1510050 15-inch 100mm Midbass Driver
Ferrite 220 magnetism 15-inch 100mm Midbass Driver
SML1510050 15-inch 100mm Midbass Driver Specification:
Model | SML1510050 |
Description | 15-inch 100-core midbass speaker |

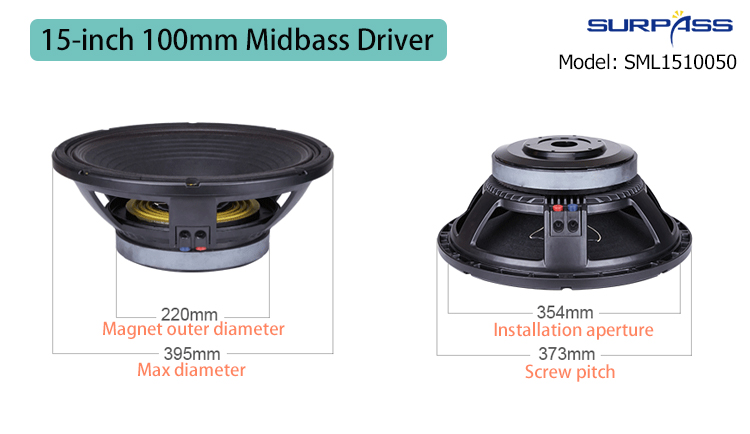

Installation aperture | About354mm |
Diagonal screw hole | About 373mm |
Height | About 150mm |
Magnet material | Ferrite 220 magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 600 Watts |
Maximum power | 1.2K Watts |
Sensitivity | 96.5 dB/1W/1m |
Frequency range | 57-2.8K Hz |
Resonant frequency | 45Hz |
Electrical Quality Factor Number | 0.37 |
Mechanical Quality Factor Value | 3.69 |
Total Quality Factor Number | 0.34 |
Effective Volume | 137 liters |
Vibration Area | 855.0cm2 |
Magnetic Force | 18.7 Txm |
Effective Mobile Quality | 132g |
Place of Origin | Guangzhou, China |
Net Weight | About 12KG (No packaging) |
SML1510050 15-inch 100mm Midbass Driver Features:
1. New improved bass unit
Use aerospace magnetism 220 magnetism and 25 thick magnetism steel, voice coil is 100 core high power coil.
2. Let you feel thunderous shock
The elastic wave is made of Dupont blended material, which has a balanced transverse steel property and accurate positioning.
3. 220 magnetic stage audio special use
Iron core, also known as T-iron, plays a magnetic conducting role in magnetism circuit addition. In design, the requirements vary according to the usage, power and performance.
4. Invulnerable shock bass
The performance of the overall technical indicators of the audio system depends on the performance of each unit itself. If the technical indicators of each unit in the system are all high, then the overall technical indicators of the system are very good.
