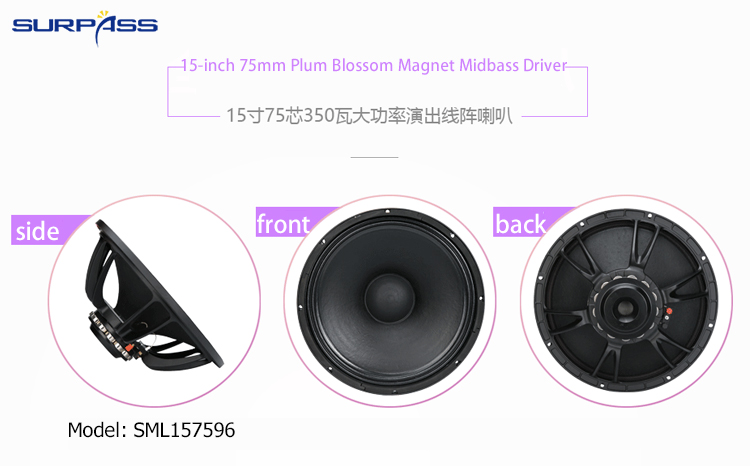

SML157596 15-inch 75mm Plum Blossom Magnet Midbass Driver
75-core speaker 15-inch 75mm Plum Blossom Magnet Midbass Driver

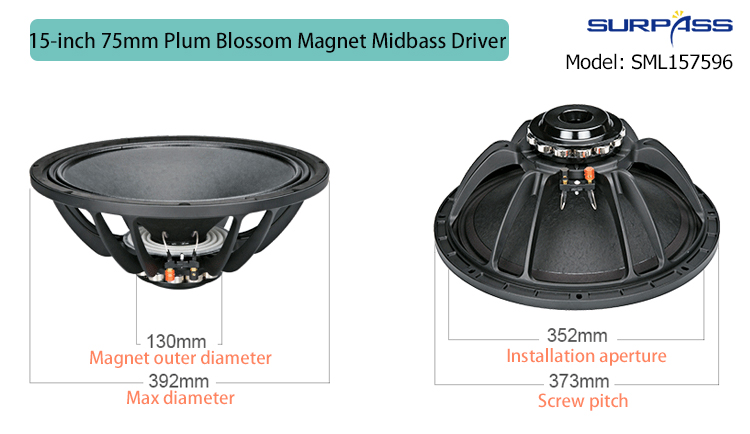

15-inch 75mm Plum Blossom Magnet Midbass Driver Specification:
Model | SML157596 |
Description | 15-inch 75-core plum blossom magnet midbass speaker |
Installation aperture | About352mm |
Diagonal screw hole | About 373mm |
Height | About 160mm |
Magnet material | Neodymium |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 98.5 dB/1W/1m |
Frequency range | 45-3.2K Hz |
Resonant frequency | 43Hz |
Electrical Quality Factor Number | 0.5 |
Mechanical Quality Factor Value | 3 |
Total Quality Factor Number | 0.49 |
Effective Volume | 163 liters |
Vibration Area | 830.0cm2 |
Magnetic Force | 14.5 Txm |
Effective Mobile Quality | 84g |
Place of Origin | Guangzhou, China |
Net Weight | About 7.5KG (No packaging) |
15-inch 75mm Plum Blossom Magnet Midbass Driver Features:
1. High power 15 inches, suitable for outdoor stage
Internal and external coils, Nd-ferrite, 75-core 350-watt midbass speaker.
2. Long stroke, for big scene
Source of surging voice, hot heartquake bass effect, go through multiple processing from inside to outside.
3. High performance plum blossom magnets
Playing non-destructive music is clear and rich hierarchy, allowing you to experience shocking sound effects.
4. Adjust and upgrade to create professional sound quality
Plum blossom magnet unit has KTV, nightclub, bar outdoor sound reinforcement applications and wide practicability.
