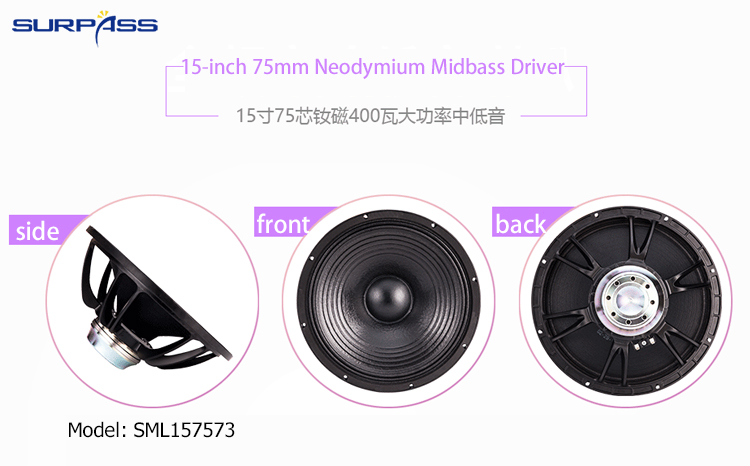

SML157573 15-inch 75mm Neodymium Midbass Driver
High-end loudspeakers 15-inch 75mm Neodymium Midbass Driver
SML157573 15-inch 75mm Neodymium Midbass Driver Specification:
Model | SML157573 |
Description | 15-inch 75-core Neodymium midbass speaker |

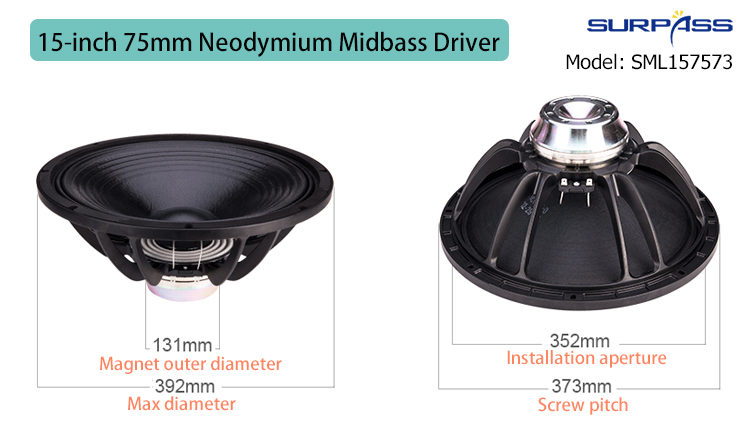

Installation aperture | About352mm |
Diagonal screw hole | About 373mm |
Height | About 170mm |
Magnet material | Neodymium magnetic 131 |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 99.5 dB/1W/1m |
Frequency range | 40-2K Hz |
Resonant frequency | 42Hz |
Electrical Quality Factor Number | 0.23 |
Mechanical Quality Factor Value | 4.3 |
Total Quality Factor Number | 0.22 |
Effective Volume | 130 liters |
Vibration Area | 855.0cm2 |
Magnetic Force | 25.5 Txm |
Effective Mobile Quality | 104g |
Place of Origin | Guangzhou, China |
Net Weight | About 5.3KG (No packaging) |
SML157573 15-inch 75mm Neodymium Midbass Driver Features:
1. Because of concentration, so professional
Increase low frequency reaching lower and the smoothness of speaker, use new technology to make the speaker not easy to fatigue or aging.
2. Quality imported paper basin
Natural fabric edge paper basin and imported damping adhesive, consideration of flexibility and strength, and its high fatigue resistance is enough to ensure the stability of large dynamic vibration range.
3. High performance magnets
Using 131mm Nd magnet steel, it is small in size, light in weight and easy to carry. It provides strong sound pressure for stage performance.
4. High-end loudspeakers for professional outdoor performances
Surging voice, super shock, love infinite music.
