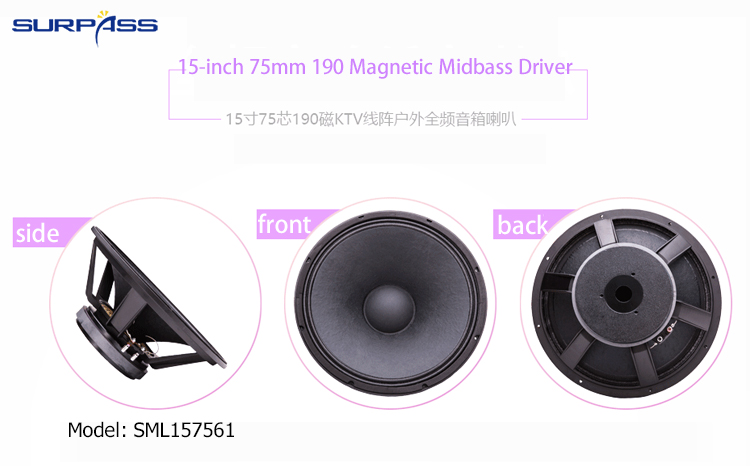

SML157561 15-inch 75mm 190 Magnetic Midbass Driver
midbass speaker 15-inch 75mm 190 Magnetic Midbass Driver
SML157561 15-inch 75mm 190 Magnetic Midbass Driver Specification:
Model | SML157561 |
Description | 15-inch 75-core 190 magnetic midbass speaker |

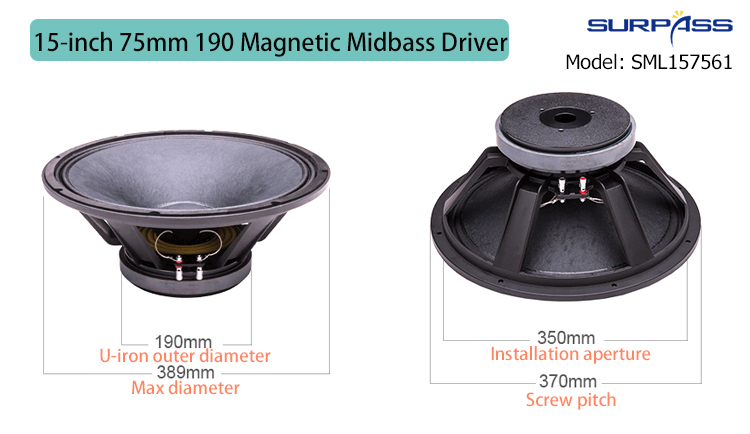

Installation aperture | About350mm |
Diagonal screw hole | About 370mm |
Height | About 122mm |
Magnet material | Ferrite |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 98 dB/1W/1m |
Frequency range | 32-3K Hz |
Resonant frequency | 32Hz |
Electrical Quality Factor Number | 0.43 |
Mechanical Quality Factor Value | 15.8 |
Total Quality Factor Number | 0.42 |
Effective Volume | 140 liters |
Vibration Area | 870.0cm2 |
Magnetic Force | 17 Txm |
Effective Mobile Quality | 67g |
Place of Origin | Guangzhou, China |
Net Weight | About 6.6KG (No packaging) |
SML157561 15-inch 75mm 190 Magnetic Midbass Driver Features:
1. 15 inch professional 190 magnetic bass speaker
Add a wonderful enjoyment to your speaker, whether it's a performance or a wedding, it's all right.
2. Make of high quality DuPont ballistic wave material
Don't be afraid to compare your speakers any more. SURPASS speakers achieves domestic high-end speaker level.
3. 75.5 core high temperature resistant voice coil
Use high power high temperature resistant voice coil, ensure full power margin and long-term large dynamic stability.
4. Taiwan imported loose pressed paper basin
Paper basin use Taiwan's high-end new technology loose press paper basin, the degree of compression of fibers is low, vibrating diaphragm is thicker and heavier as a whole, so that it can endure larger vibration stroke.
