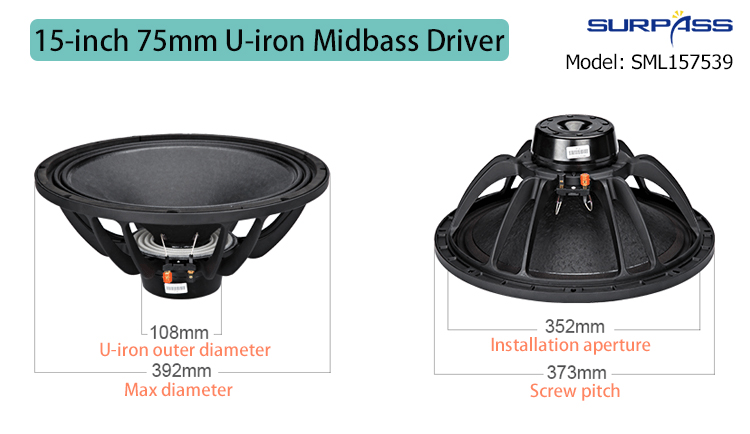

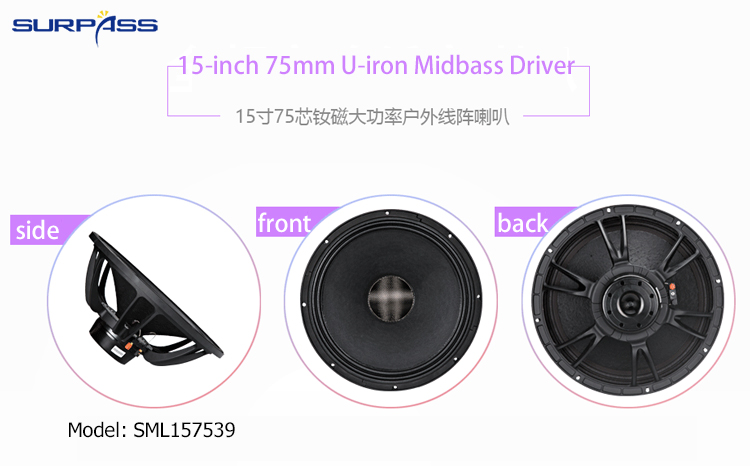

SML157539 15-inch 75mm U-iron Midbass Driver
75-core U-iron midbass speaker 15-inch 75mm U-iron Midbass Driver
SML157539 15-inch 75mm U-iron Midbass Driver Specification:
Model | SML157539 |
Description | 15-inch 75-core U-iron midbass speaker |
Installation aperture | About352mm |
Diagonal screw hole | About 373mm |
Height | About 171mm |
Magnet material | Neodymium magnetic 74 |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 98 dB/1W/1m |

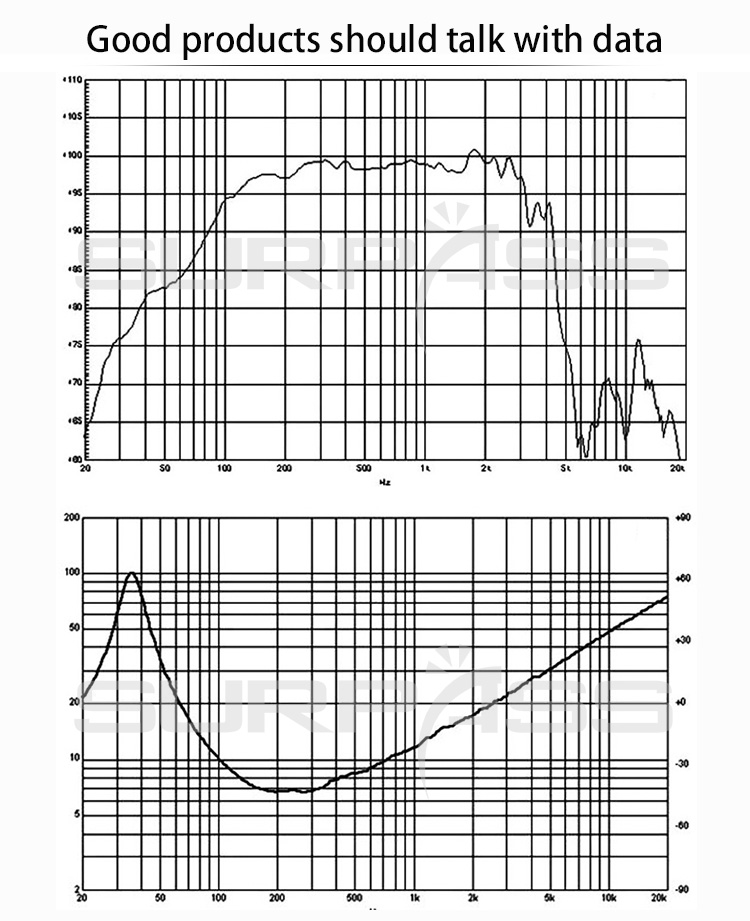

Frequency range | 40-2.5K Hz |
Resonant frequency | 37Hz |
Electrical Quality Factor Number | 0.24 |
Mechanical Quality Factor Value | 4.5 |
Total Quality Factor Number | 0.22 |
Effective Volume | 195 liters |
Vibration Area | 865.0cm2 |
Magnetic Force | 22.5 Txm |
Effective Mobile Quality | 96g |
Place of Origin | Guangzhou, China |
Net Weight | About 4.6KG (No packaging) |
SML157539 15-inch 75mm U-iron Midbass Driver Features:
1. Voltage enough, wide sound dynamic range
Sound pressure level is distinct, low-frequency response speed is fast, reaches pretty low.
2. Making of high quality materials
It's burnable, bass shocked, and it can give you whatever you want.
3. High performance magnets
15-inch circular cast aluminium basin with internal magnetic midbass speaker, firm and steady.
4. Using wool and natural fibers
Under the design of acoustic space, the resolution has been greatly improved. Deep and powerful sound sensation, accurate and efficient grasp of all kinds of music.
