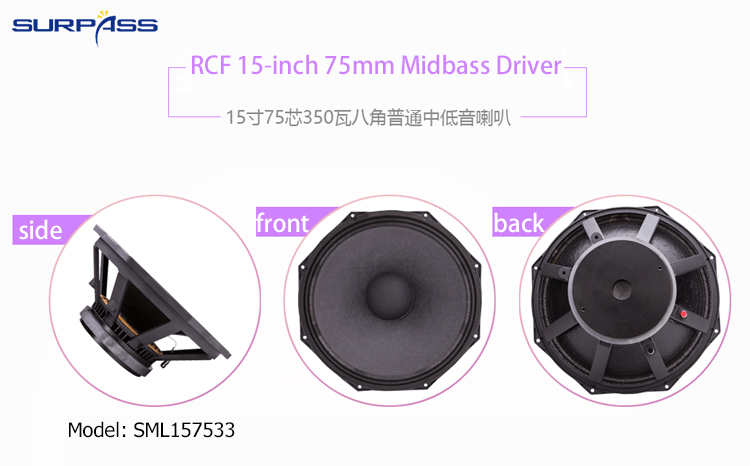

SML157533 RCF 15-inch 75mm Midbass Driver
Ferrite RCF 15-inch 75mm Midbass Driver
SML157533 RCF 15-inch 75mm Midbass Driver Specification:
Model | SML157533 |
Description | RCF 15-inch 75-core midbass speaker |

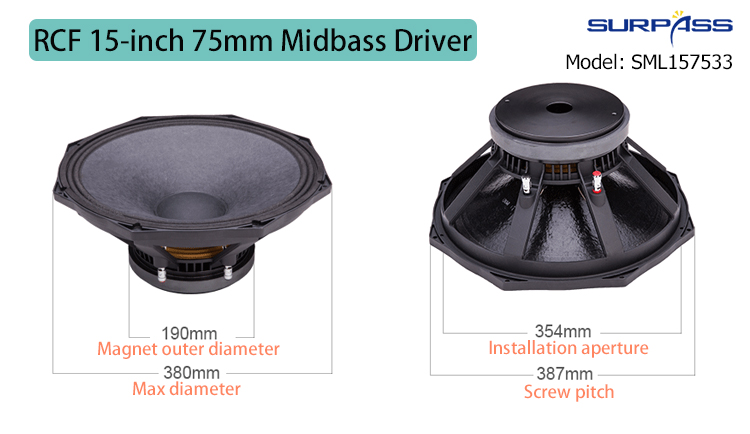

Installation aperture | About354mm |
Diagonal screw hole | About 387mm |
Height | About 170mm |
Magnet material | Ferrite |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 97 dB/1W/1m |
Frequency range | 45-3K Hz |
Resonant frequency | 43Hz |
Electrical Quality Factor Number | 0.44 |
Mechanical Quality Factor Value | 7.6 |
Total Quality Factor Number | 0.43 |
Effective Volume | 156 liters |
Vibration Area | 810.0cm2 |
Magnetic Force | 16.2 Txm |
Effective Mobile Quality | 80g |
Place of Origin | Guangzhou, China |
Net Weight | About 7.5KG (No packaging) |
SML157533 RCF 15-inch 75mm Midbass Driver Features:
1. Stereoscopic presentation voice expression
Natural equilibrium frequency spectrum curve, high quality detail resolution.
2. RDM paper basin imported from UK
Naturally mellow voice , soft and unmodified, mature bass, stirring every music cell.
3. Heat dissipation and constant temperature technology
Large heat dissipation and constant temperature magnetron technology is adopted to provide low valley outlet for air flow and reduce distortion rate.
4. Simple and elegant, stable sound quality
Factory direct supply, product quality assurance, welcome to listen, OEM or ODM.
