SML157529 RCF 15-inch 75mm Midbass Driver
15-inch 75-core midbass speaker RCF 15-inch 75mm Midbass Driver
SML157529 RCF 15-inch 75mm Midbass Driver Specification:
Model | SML157529 |
Description | RCF 15-inch 75-core midbass speaker |

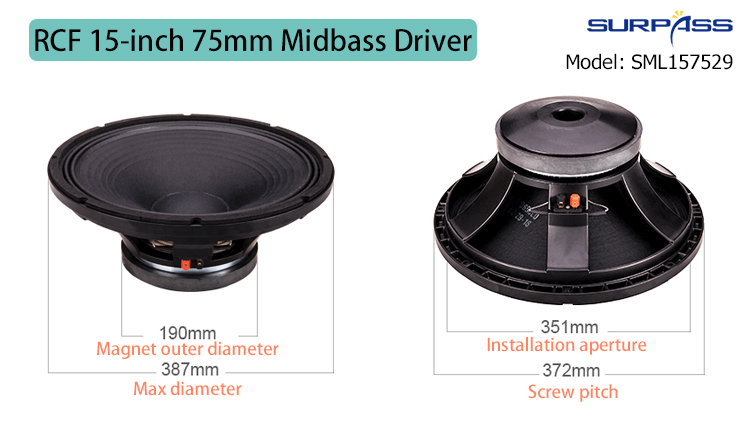

Installation aperture | About351mm |
Diagonal screw hole | About 372mm |
Height | About 170mm |
Magnet material | Ferrite |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 400 Watts |
Maximum power | 700 Watts |
Sensitivity | 99 dB/1W/1m |
Frequency range | 40-3K Hz |
Resonant frequency | 45Hz |
Electrical Quality Factor Number | 0.52 |
Mechanical Quality Factor Value | 7.6 |
Total Quality Factor Number | 0.5 |
Effective Volume | 160 liters |
Vibration Area | 830.0cm2 |
Magnetic Force | 15.3 Txm |
Effective Mobile Quality | 83g |
Place of Origin | Guangzhou, China |
Net Weight | About 8.5KG (No packaging) |
SML157529 RCF 15-inch 75mm Midbass Driver Features:
1. Excellent sound quality, high cost-effective
Choose large heat dissipation constant temperature magnetron technology, sound performance is clearer
2. Imported selvage
Use thickened cast Aluminum basin frame, imported DuPont elastic wave, high power 75.5 core high temperature eesistant copper-clad Aluminum flat wire voice coil, 36 high strength braided yarn, let the voice flow smoothly and calmly, gently and pleasantly.
3. Real capture of human voice restoration
Excellent sound quality, with ultra-high cost-effective, delicate to every breath can be perceived.
4. High transmission efficiency and excellent resolution
High quality detail resolution, whether rock or pop or lyric music can bring you high restoring sound effect.
