SML127593 12-inch 75mm PHL Midbass Driver Specification:
Model | SML127593 |
Description | 12-inch 75-core PHL midbass speaker |

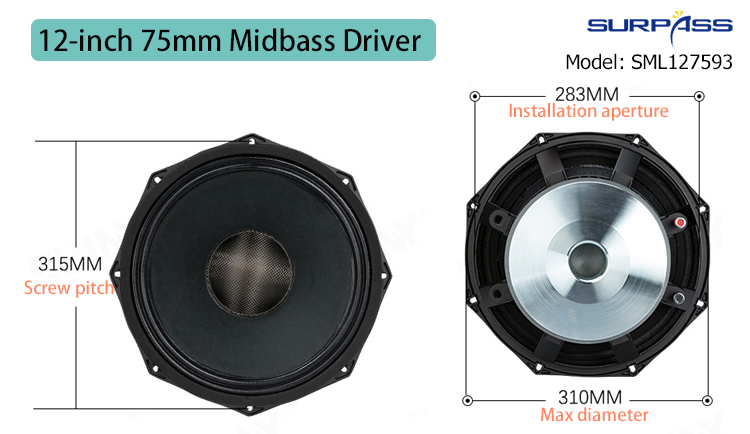

Installation aperture | About 282mm |
Diagonal screw hole | About 298mm |
Height | About 140mm |
Magnet material | Ferrite 190 Magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 97.5 dB/1W/1m |
Frequency range | 55-3K Hz |
Resonant frequency | 54Hz |
Electrical Quality Factor Number | 0.18 |
Mechanical Quality Factor Value | 6.8 |
Total Quality Factor Number | 0.17 |
Effective Volume | 45 liters |
Vibration Area | 562.0cm2 |
Magnetic Force | 26 Txm |
Effective Mobile Quality | 75g |
Place of Origin | Guangzhou, China |
Net Weight | About 6.8KG (No packaging) |
SML127593 12-inch 75mm PHL Midbass Driver Features:
1. Excellent sound quality, clear and harmonious voice
Pertinence controlling the direction of playing music, create a full range of mid-bass sound effects, reduce distortion, mid-bass surging and strong.
2. High performance magnetic steel, better sound quality
High-end 75-core ordinary magnetic bass speaker, high performance Aerospace magnetism, super strong magnetic field keeps current signal stable, transmission process ensures no distortion and longer service life of the speaker.
3. Excellent sound quality, shock and enjoyment
Personally on the scene audio feast, stir up your auditory nerves, everywhere is a wonderful melody. Lightweight material, exquisite workmanship, wonderful original sound, shocking experience. Beginning with material selection, it's all for better music.
High Definition Pictures:
Brochure/Data Sheet:
SML127593 12-inch 75mm Midbass Driver.pdf、
Operation Manual:
