12-inch 100mm Midbass Driver Specification:
Model | SML1210045 |
Description | 12-inch 100-core midbass speaker |

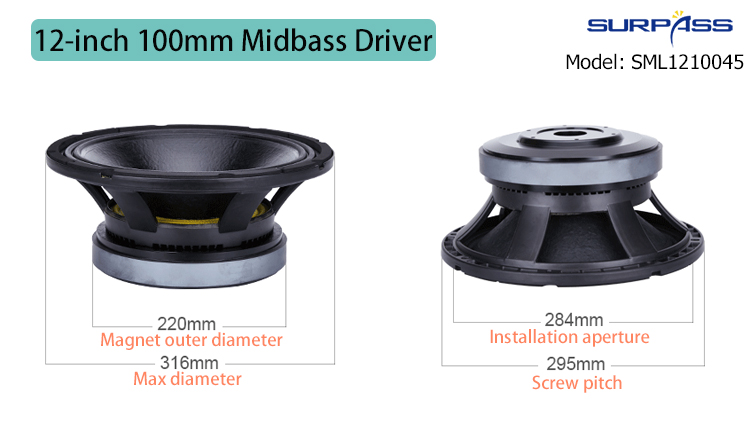

Installation aperture | About 284mm |
Diagonal screw hole | About 295mm |
Height | About 140mm |
Magnet material | Ferrite 220 Magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 500 Watts |
Maximum power | 1K Watts |
Sensitivity | 96 dB/1W/1m |
Frequency range | 53-2K Hz |
Resonant frequency | 53Hz |
Electrical Quality Factor Number | 0.26 |
Mechanical Quality Factor Value | 3.2 |
Total Quality Factor Number | 0.25 |
Effective Volume | 47 liters |
Vibration Area | 540.0cm2 |
Magnetic Force | 22.3 Txm |
Effective Mobile Quality | 83g |
Place of Origin | Guangzhou, China |
Net Weight | About 11.2KG (No packaging) |
12-inch 100mm Midbass Driver Features:
1. New improved bass unit
Sound quality is stable and mature. 100-core 12-inch loudspeaker with increased big power
2. Let you feel thunderous shock
The elastic wave is made of Dupont blended fabric, transverse rigid balance, accurate positioning
3. 220 magnetic bass special use
The sound is as clear as a spring, clear waves ripple, and the description of the sound field is very real.
4. Invulnerable shock bass
The subwoofer's audibility to the human ear is positive and limited. On the contrary, other human senses will feel it. This is the feeling of shock.

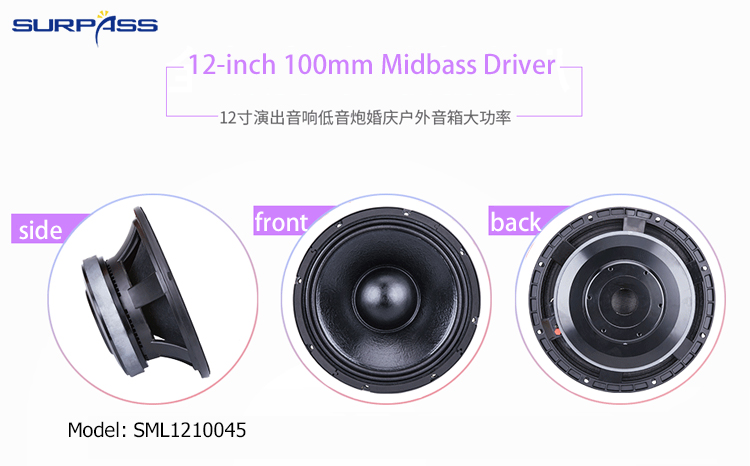

High Definition Pictures:
Brochure/Data Sheet:
SML1210045 12-inch 75mm Midbass Driver.pdf、
Operation Manual:
