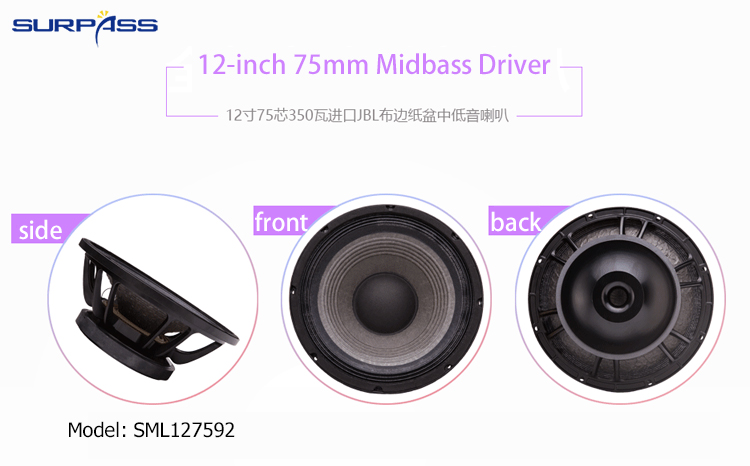

12-inch 75mm Midbass Driver Specification:
Model | SML127592 |
Description | 12-inch 75-core midbass speaker |
Installation aperture | About 282mm |
Diagonal screw hole | About 298mm |
Height | About 140mm |
Magnet material | Ferrite 190 Magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 97.5 dB/1W/1m |
Frequency range | 55-3K Hz |
Resonant frequency | 54Hz |
Electrical Quality Factor Number | 0.18 |
Mechanical Quality Factor Value | 6.8 |
Total Quality Factor Number | 0.17 |
Effective Volume | 45 liters |
Vibration Area | 562.0cm2 |
Magnetic Force | 26 Txm |
Effective Mobile Quality | 75g |
Place of Origin | Guangzhou, China |
Net Weight | About 6.8KG (No packaging) |
12-inch 75mm Midbass Driver Features:
1. Light up the quality of your passion
The bass is loud and clear, strong penetration, and the overload capacity is very high. It is not easy to damage.
2. Excellent craftsmanship and meticulous work
Use high temperature resistance imported silver stranded conductor, guarantee that long-term high-power operation will not fracture.
3. High performance magnets
Fully symmetrical magnetic circuit design, cast aluminium basin frame, exquisite workmanship, excellent comprehensive strength.
4. Quality imported paper basin
Manufacturers use new synthetic materials to improve the original conical vibration basin.

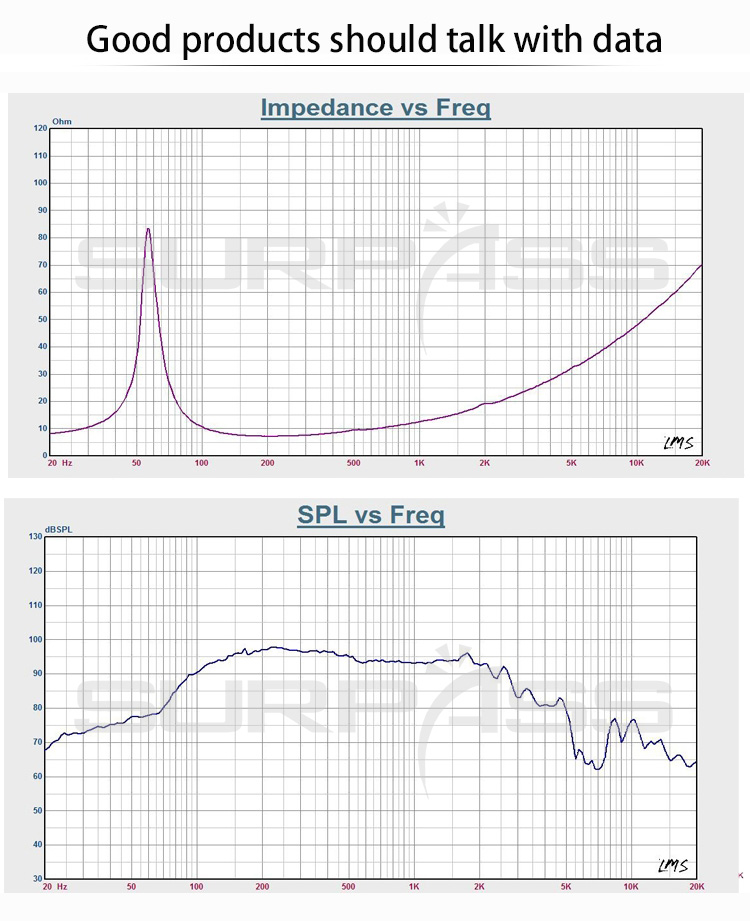

High Definition Pictures:
Brochure/Data Sheet:
SML127592 12-inch 75mm Midbass Driver.pdf、
Operation Manual:
