12-inch 75mm Midbass Driver Specification:
Model | SML127577 |
Description | 12-inch 75-core midbass speaker |

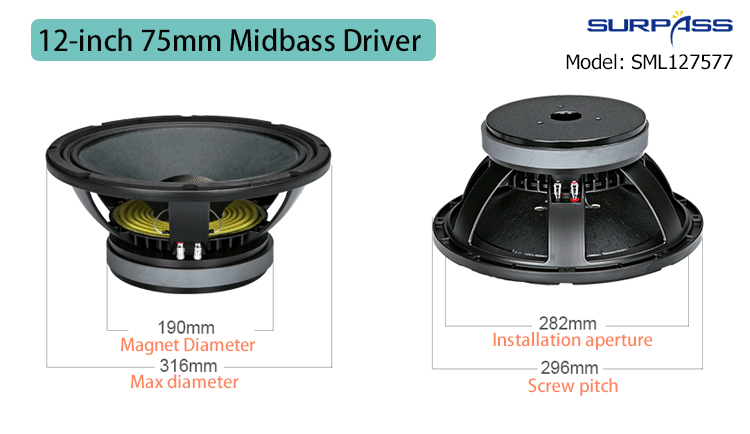

Installation aperture | About 282mm |
Diagonal screw hole | About 296mm |
Height | About 130mm |
Magnet material | Ferrite 190 Magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 99 dB/1W/1m |
Frequency range | 50-3K Hz |
Resonant frequency | 53Hz |
Electrical Quality Factor Number | 0.2 |
Mechanical Quality Factor Value | 7.2 |
Total Quality Factor Number | 0.19 |
Effective Volume | 63 liters |
Vibration Area | 544.0cm2 |
Magnetic Force | 22 Txm |
Effective Mobile Quality | 54g |
Place of Origin | Guangzhou, China |
Net Weight | About 6.35KG (No packaging) |
12-inch 75mm Midbass Driver Features:
1. Fine workmanship material, durable
Use high temperature resistance imported silver stranded conductor, enjoy full and real music.
2. Excellent craftsmanship and meticulous work
Guarantee that long-term high-power operation will not fracture.
3. High performance magnets
In order to increase the magnetic field strength, we use Y35 high performance magnetic steel.
4. Imported loosely pressed edged paper basin
The edge of a conical vibration basin is called a folded ring. It is durable to use the edge of cloth folding rings.

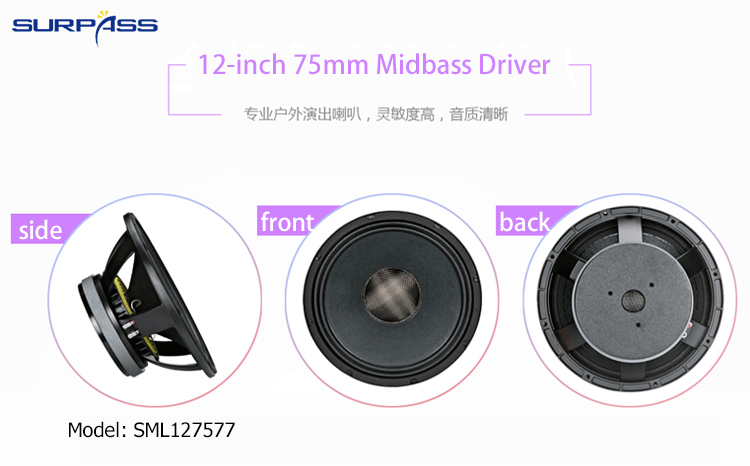

High Definition Pictures:
Brochure/Data Sheet:
SML127577 12-inch 75mm Midbass Driver.pdf、
Operation Manual:
