SML127572 12-inch 75mm Midbass Driver Specification:
Model | SML127572 |
Description | 12-inch 75-core midbass speaker |

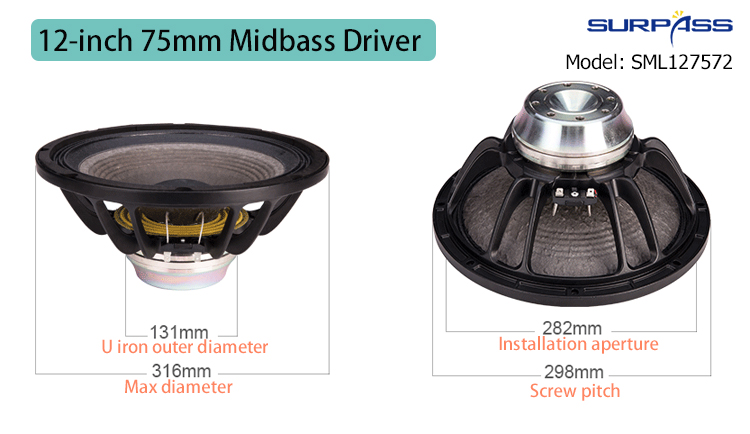

Installation aperture | About 282mm |
Diagonal screw hole | About 298mm |
Height | About 145mm |
Magnet material | NdFeB 131 magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 400 Watts |
Maximum power | 800 Watts |
Sensitivity | 96 dB/1W/1m |
Frequency range | 40-2.5K Hz |
Resonant frequency | 53Hz |
Electrical Quality Factor Number | 0.43 |
Mechanical Quality Factor Value | 14.9 |
Total Quality Factor Number | 0.42 |
Effective Volume | 67 liters |
Vibration Area | 520.0cm2 |
Magnetic Force | 15.6 Txm |
Effective Mobile Quality | 56.4g |
Place of Origin | Guangzhou, China |
Net Weight | About 4.9KG (No packaging) |
SML127572 12-inch 75mm Midbass Driver Features:
1. Fine workmanship material, durable
Neodymium magnetic materials have many advantages and can be driven by very small power.
2. Strong sense of strength, medium frequency permeability and nature
Sweet tone, mellow, high temperature resistant SV voice coil, high power withstand, small low frequency distortion.
3. High performance magnets
Using high-performance Nd-magnet steel. It has many advantages and can be used as a stage speaker.
4. Imported loosely pressed edged paper basin
Special imported fabric edge, full material, full component, strong voice reduction.

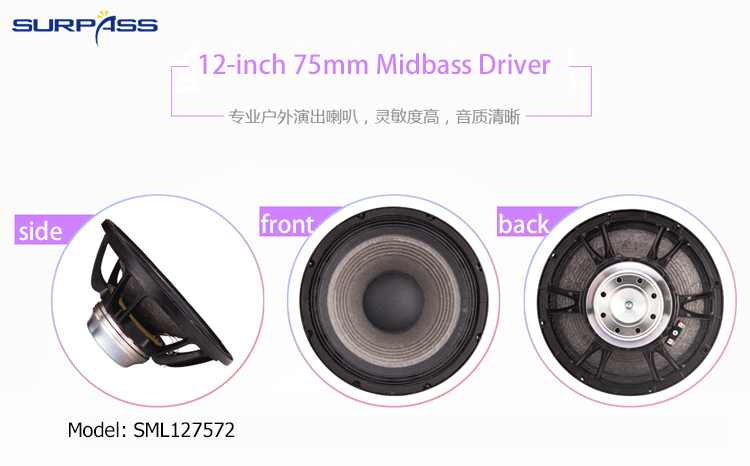

High Definition Pictures:
Brochure/Data Sheet:
SML127572 12-inch 75mm Midbass Driver.pdf、
Operation Manual:
