SML127570 12-inch 75mm Midbass Driver Specification:
Model | SML127570 |
Description | 12-inch 75-core midbass speaker |

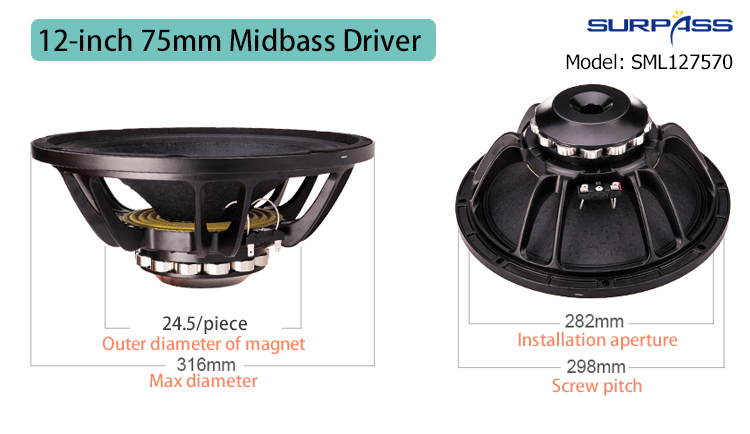

Installation aperture | About 282mm |
Diagonal screw hole | About 298mm |
Height | About 130mm |
Magnet material | Granular magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 99 dB/1W/1m |
Frequency range | 45-3K Hz |
Resonant frequency | 45Hz |
Electrical Quality Factor Number | 0.35 |
Mechanical Quality Factor Value | 4.49 |
Total Quality Factor Number | 0.34 |
Effective Volume | 40.7 liters |
Vibration Area | 530.0cm2 |
Magnetic Force | 20.5 Txm |
Effective Mobile Quality | 56g |
Place of Origin | Guangzhou, China |
Net Weight | About 3.5KG (No packaging) |
SML127570 12-inch 75mm Midbass Driver Features:
1. High sensitivity, large sound radiation angle
Enjoy singing as if you were there in the scene, restore the real voice
2. Quality imported paper basin, strong and durable, processing more optimally high frequency and low frequency of the loudspeaker, which makes the midbass frequency more imaginative.
3. Plum blossom magnetism, professional linear array
Maintain the original sound, greatly reduce distortion, strong bass, widely used in high-end audio.
4. Thickened cast Aluminum basin frame, better sound quality
Low loss of sound quality, higher quality of sound, high sensitivity, easy to drive, low requirement for power amplifier input.

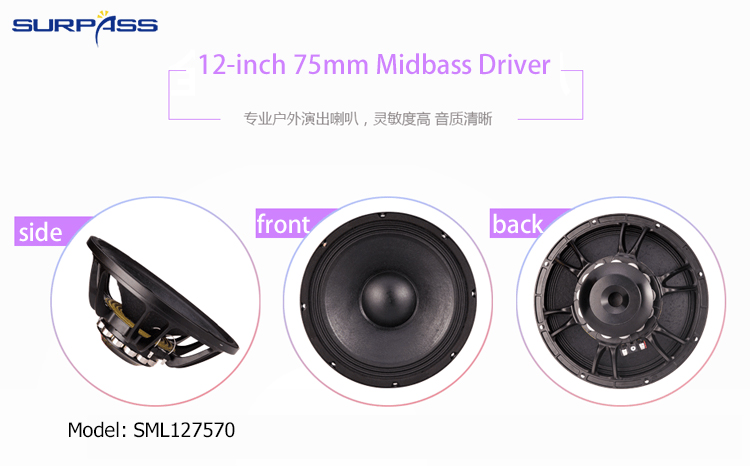

High Definition Pictures:
Brochure/Data Sheet:
SML127570 12-inch 75mm Midbass Driver.pdf、
Operation Manual:
