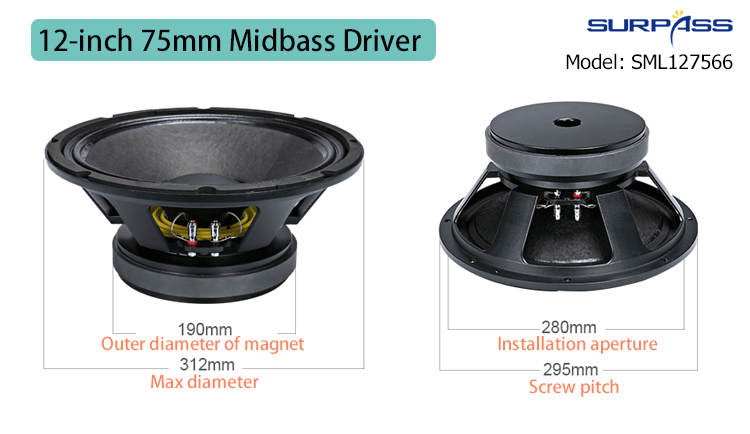

12-inch 75mm Midbass Driver Specification:
Model | SML127566 |
Description | 12-inch 75-core midbass speaker |
Installation aperture | About 280mm |
Diagonal screw hole | About 295mm |
Height | About 130mm |
Magnet material | Ferrite |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 97 dB/1W/1m |
Frequency range | 55-3K Hz |
Resonant frequency | 55Hz |
Electrical Quality Factor Number | 0.38 |
Mechanical Quality Factor Value | 2.44 |
Total Quality Factor Number | 0.33 |
Effective Volume | 89.6 liters |
Vibration Area | 531.0cm2 |
Magnetic Force | 15.7 Txm |
Effective Mobile Quality | 62.3g |
Place of Origin | Guangzhou, China |
Net Weight | About 6.2KG (No packaging) |
12-inch 75mm Midbass Driver Features:
1. Speaker magnet ferrite
The size and quality of magnet directly determine the capability of driving system.
2. Conical diaphragm, very light material
In loudspeaker units, conical diaphragms are actually used to push air directly.
3. High performance magnets
High-performance Aerospace magnet steel, high magnetic field intensity, keep current stable transmission process undistorted.
4. Edged paper basin, Better than excellent
With the continuous improvement of technology, the material of conical vibration basin strives to achieve a better proportion between the extremely light mass and rigidity.

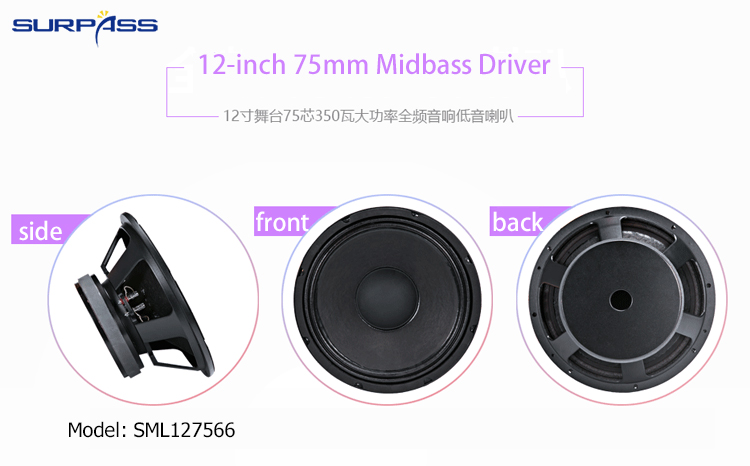

High Definition Pictures:
Brochure/Data Sheet:
SML127566 12-inch 75mm Midbass Driver.pdf、
