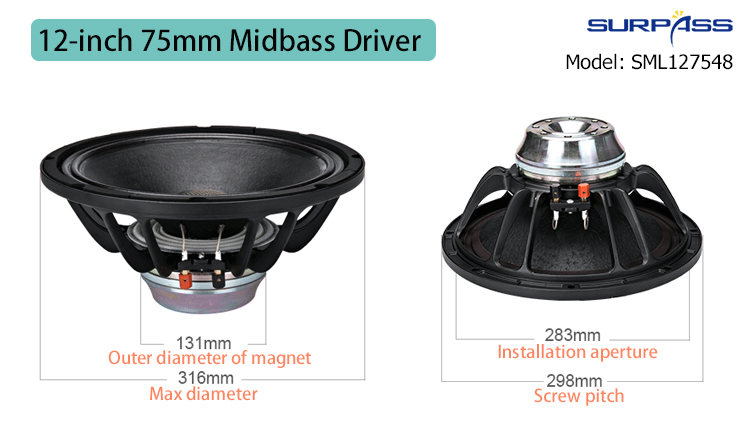

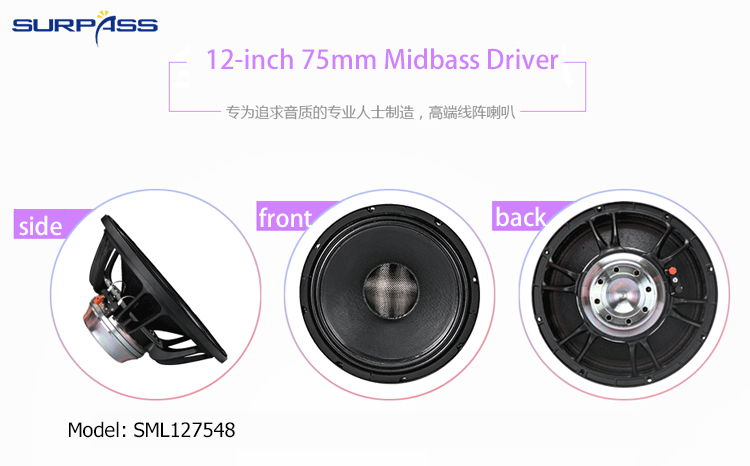

12-inch 75mm Midbass Driver Specification:
Model | SML127548 |
Description | 12-inch 75-core midbass speaker |
Installation aperture | About 283mm |
Diagonal screw hole | About 298mm |
Height | About 145mm |
Magnet material | NdFeB 131 magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 400 Watts |
Maximum power | 800 Watts |
Sensitivity | 98.5 dB/1W/1m |
Frequency range | 40-2.3K Hz |
Resonant frequency | 40Hz |
Electrical Quality Factor Number | 0.17 |
Mechanical Quality Factor Value | 3.7 |
Total Quality Factor Number | 0.16 |
Effective Volume | 76 liters |
Vibration Area | 522.0cm2 |
Magnetic Force | 25.5 Txm |
Effective Mobile Quality | 77g |
Place of Origin | Guangzhou, China |
Net Weight | About 4.8KG (No packaging) |
12-inch 75mm Midbass Driver Features:
1. Creating high quality audio enjoyment
High sound quality, excellent material, new design, strong quality and great shock
2. Loose-pressed paper basin, durable
Quality imported paper basin, strong and durable, greatly enhance sensitivity and directivity, enhance the sense of scene and space.
3. Neodymium Ferrite material, brand sound quality
Using 12-inch 75-core full frequency band performing DJ speaker.
4. Cloud sound quality, originated from brand
All use high-power materials, the overall bearing power is greater, professional fine workmanship manufacturing.
High Definition Pictures:
Brochure/Data Sheet:
SML127548 12-inch 75mm Midbass Driver.pdf、
Operation Manual:
