12-inch 75mm Midbass Driver Specification:
Model | SML127541 |
Description | 12-inch 75-core midbass speaker |

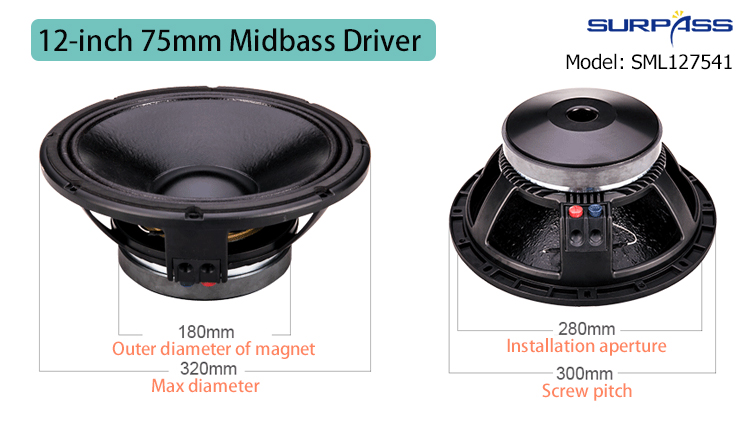

Installation aperture | About 280mm |
Diagonal screw hole | About 300mm |
Height | About 140mm |
Magnet material | Ferrite |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 400 Watts |
Maximum power | 800 Watts |
Sensitivity | 98 dB/1W/1m |
Frequency range | 50-3K Hz |
Resonant frequency | 53Hz |
Electrical Quality Factor Number | 0.28 |
Mechanical Quality Factor Value | 4.7 |
Total Quality Factor Number | 0.27 |
Effective Volume | 72 liters |
Vibration Area | 530.0cm2 |
Magnetic Force | 17 Txm |
Effective Mobile Quality | 48g |
Place of Origin | Guangzhou, China |
Net Weight | About 6.8KG (No packaging) |
12-inch 75mm Midbass Driver Features:
1. The sound effect is snappy and powerful
Strong and forceful, shock enough, and selling well in physical stores.
2. Imported 7DF paper basin, durable
Quality imported paper basin, strong and durable, greatly enhance sensitivity and directivity, enhance the sense of scene and space.
3. High Performance Y35 Magnets
High-performance Aerospace magnet steel, high magnetic field intensity, keep current stable transmission process undistorted.
4. KTV special use, shocking sound quality
Designers and acousticians make the professional speakers focusing on acoustic performance.

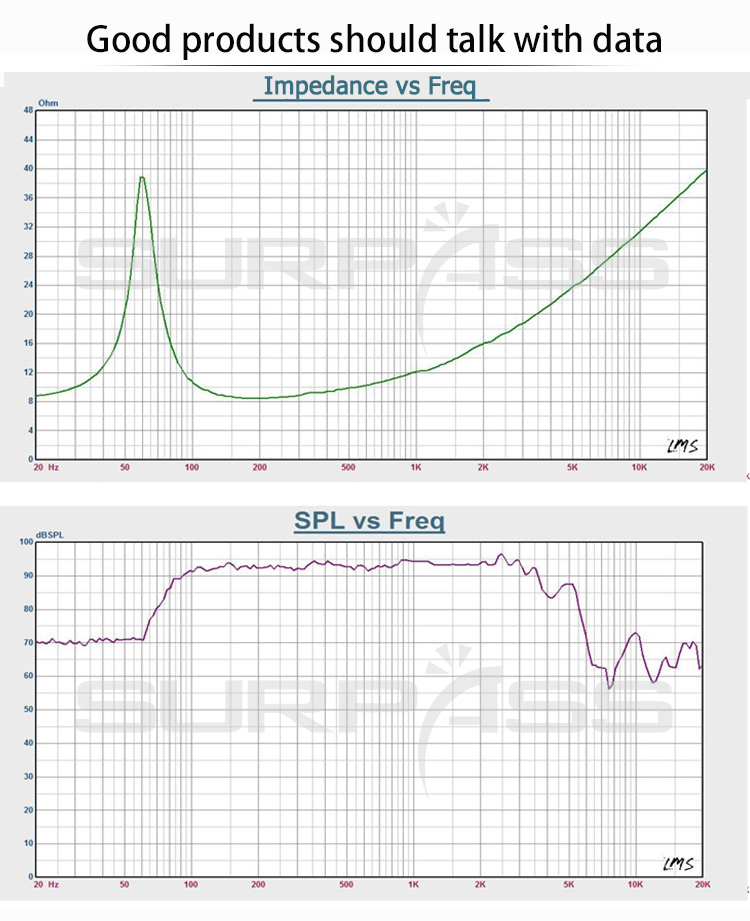

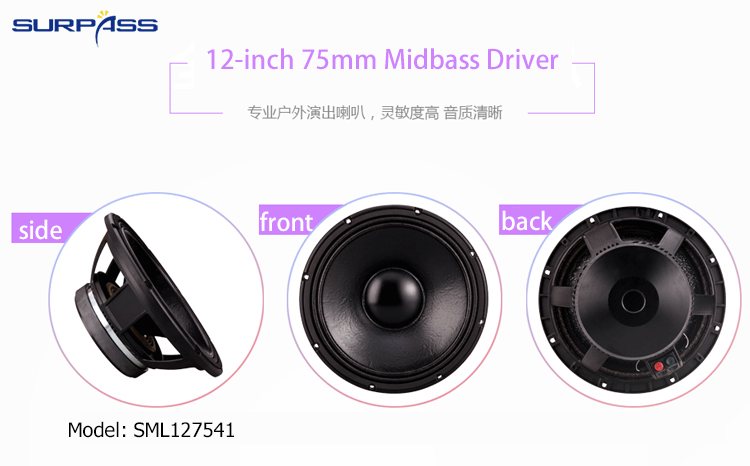

High Definition Pictures:
Brochure/Data Sheet:
SML127541 12-inch 75mm Midbass Driver.pdf、
Operation Manual:
