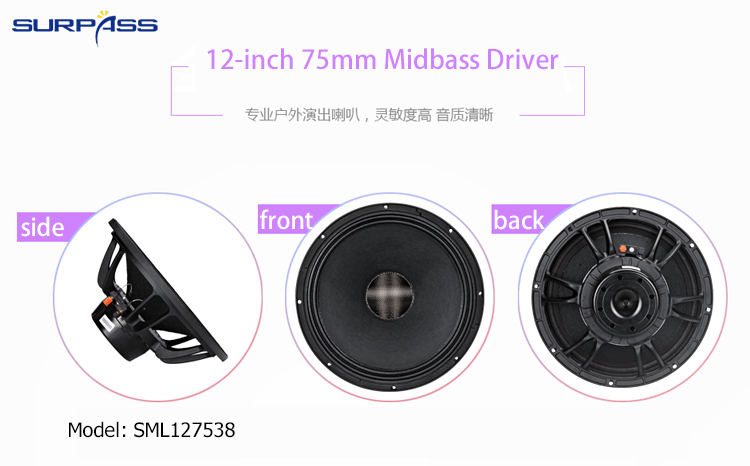

12-inch 75mm Midbass Driver Specification:
Model | SML127538 |
Description | 12-inch 75-core midbass speaker |

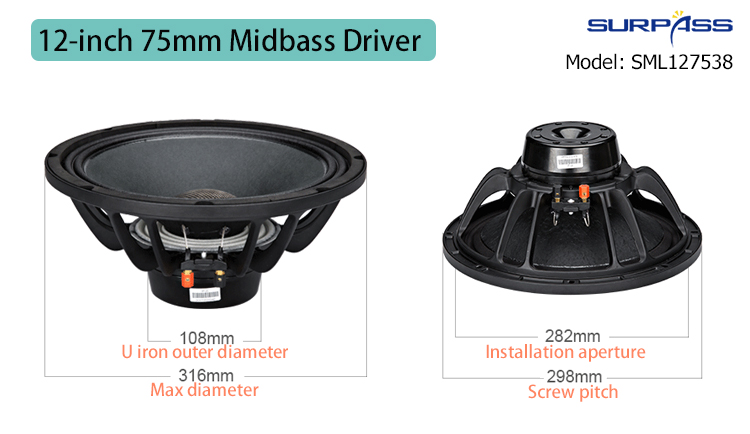

Installation aperture | About 282mm |
Diagonal screw hole | About 298mm |
Height | About 145mm |
Magnet material | NdFeB 74 magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 96 dB/1W/1m |

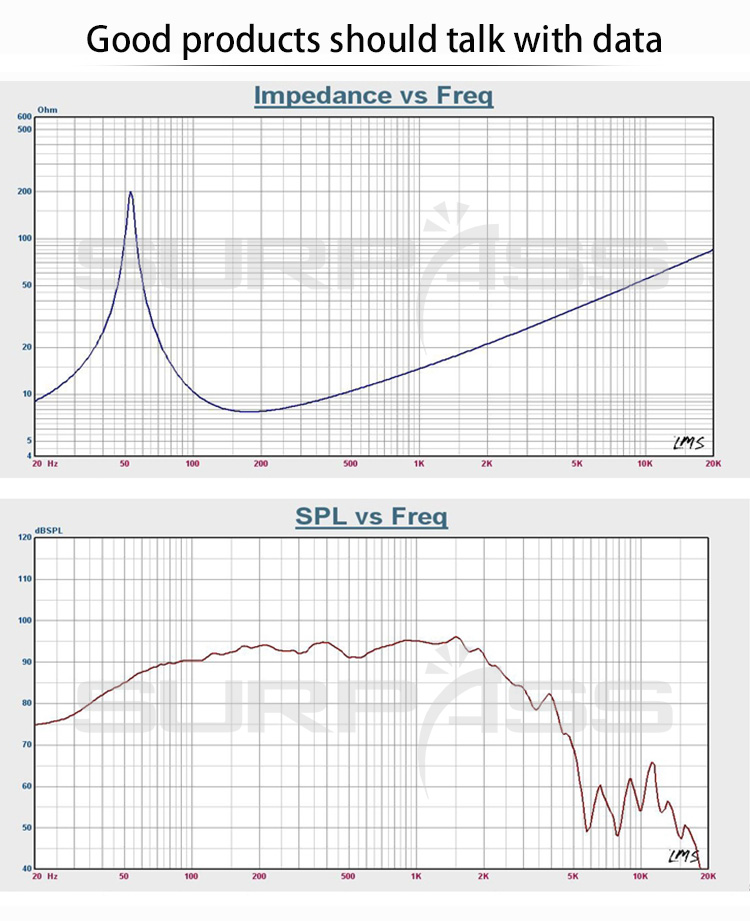

Frequency range | 50-2.5K Hz |
Resonant frequency | 53Hz |
Electrical Quality Factor Number | 0.43 |
Mechanical Quality Factor Value | 14.3 |
Total Quality Factor Number | 0.42 |
Effective Volume | 67 liters |
Vibration Area | 544.0cm2 |
Magnetic Force | 15.6 Txm |
Effective Mobile Quality | 56g |
Place of Origin | Guangzhou, China |
Net Weight | About 4.2KG (No packaging) |
12-inch 75mm Midbass Driver Features:
1. Excellent chemical stability
High sound pressure, strong shock, high sensitivity, small volume and small distortion.
2. Using high performance carbon fiber dust cap
This unit uses high performance fibre dust cap, which strengthens the rigidity and toughness of the speaker and makes the voice clearer. High Neodymium magnet U iron models, using Nd-Fe-B N40SH magnet, high density and strong magnetism, in favor of better burst of sound.
3. Audio experience, shock voice
75-core U-iron round performing speaker keep the original sound, reduce the distortion rate by a large margin, bass strong and powerful.
4. Imported loosely pressed edged paper basin
DuPont 75 core high temperature resistant pure aluminium wire voice coil, 24 strands of high strength braided line, use imported loosely pressed edged paper basin, Moisture-proof, corrosion-proof and oxidation-proof, effectively enhance the service life of speaker at high power.
High Definition Pictures:
Brochure/Data Sheet:
SML127538 12-inch 75mm Midbass Driver.pdf、
