12-inch 75mm Midbass Driver Specification:
Model | SML127534 |
Description | 12-inch 75-core midbass speaker |

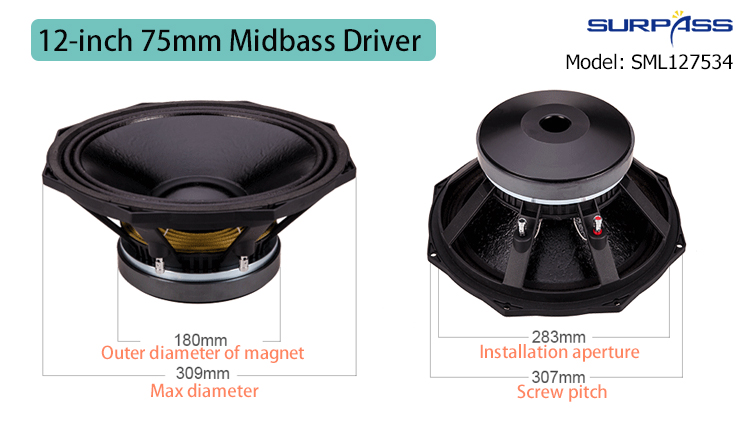

Installation aperture | About 283mm |
Diagonal screw hole | About 307mm |
Height | About 140mm |
Magnet material | Ferrite |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 97 dB/1W/1m |
Frequency range | 45-3K Hz |
Resonant frequency | 45Hz |
Electrical Quality Factor Number | 0.26 |
Mechanical Quality Factor Value | 9.3 |
Total Quality Factor Number | 0.25 |
Effective Volume | 85 liters |
Vibration Area | 735.0cm2 |
Magnetic Force | 17 Txm |
Effective Mobile Quality | 58g |
Place of Origin | Guangzhou, China |
Net Weight | About 7KG (No packaging) |
12-inch 75mm Midbass Driver Features:
1. High-quality Aerospace magnetic materials
Sticking to strict selection standards for raw materials is responsible to consumers。
2. Waterproof paper basin, 3 times durable
Special imported paper basin, strong and durable, greatly enhance sensitivity and directivity, enhance the sense of scene and space.
3. High performance magnets
Using high performance Aerospace magnet steel, the magnetic field strength is high, the current is stable, and the transmission process will not distorted.
4. Smooth basin, better than excellent
Sound quality loss is small, sound quality is higher, high sensitivity and easy to drive, and power amplifier input requirements are small.

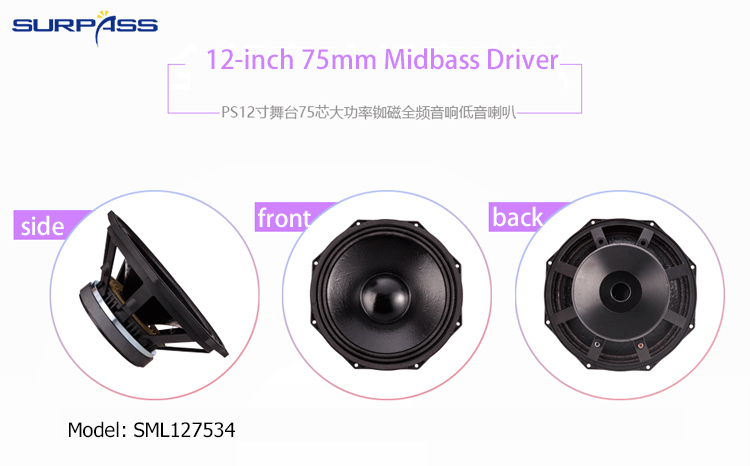

High Definition Pictures:
Brochure/Data Sheet:
SML127534 12-inch 75mm Midbass Driver.pdf、
