12-inch 75mm Midbass Driver Specification:
Model | SML127527 |
Description | 12-inch 75-core midbass speaker |

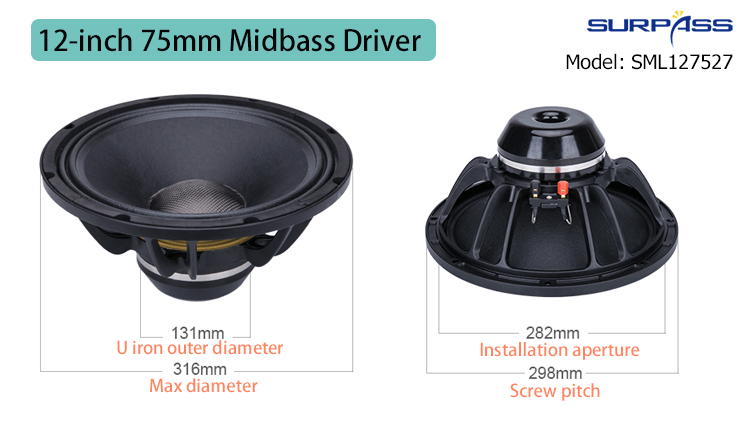

Installation aperture | About 282mm |
Diagonal screw hole | About 298mm |
Height | About 152mm |
Magnet | NdFeB 131 magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 97.5 dB/1W/1m |
Frequency range | 40-3K Hz |
Resonant frequency | 54Hz |
Electrical Quality Factor Number | 0.36 |
Mechanical Quality Factor Value | 7.7 |
Total Quality Factor Number | 0.34 |
Effective Volume | 54 liters |
Vibration Area | 522.0cm2 |
Magnetic Force | 18.9 Txm |
Effective Mobile Quality | 67g |
Place of Origin | Guangzhou, China |
Net Weight | About 5.4KG (Include packaging) |
12-inch 75mm Midbass Driver Features:
1. Excellent chemical stability
High sound pressure, strong shock, high sensitivity, small volume and small distortion
2. Use high penetration carbon fiber dust cap
High performance fibre dust cap is used in this unit. It strengthen the rigidity and toughness of the speaker and makes the voice clearer. High Neodymium Magnet U iron models use Nd-Fe-B 40SH magnet, high density and strong magnetism, which is conducive to better sound explosion.
3. Audio Experience, Shock Sounding
The 75-core U-iron roundness performances speaker retains the original sound, greatly reduces the distortion rate, and the bass is strong and powerful.
4. Imported loosely pressed edged paper basin
DuPont 75 core high temperature resistant pure aluminium wire voice coil, 24 strands of high strength braided line, use imported loosely pressed edged paper basin, Moisture-proof, corrosion-proof and oxidation-proof, effectively enhance the service life of speaker at high power.

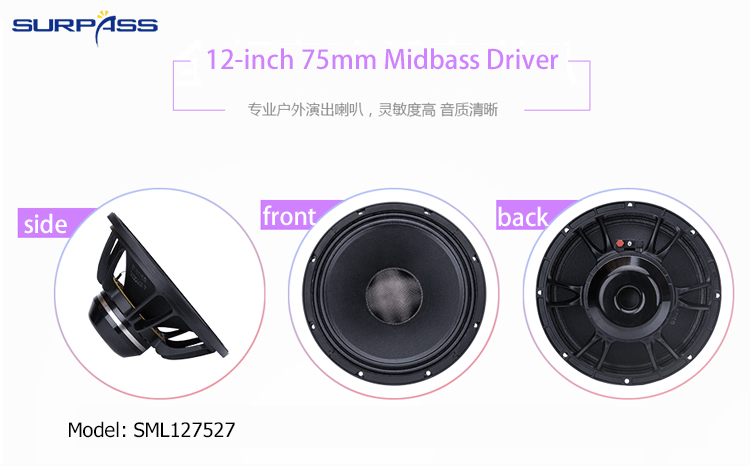

High Definition Pictures:
