SML107521 10-inch 75mm Medium Plum Blossom Driver
medium plum blossom speaker 10-inch 75mm Medium Plum Blossom Driver
10-inch 75mm Medium Plum Blossom Driver Specification:
Model | SML107521 |
Description | 10-inch 75-core medium plum blossom speaker |

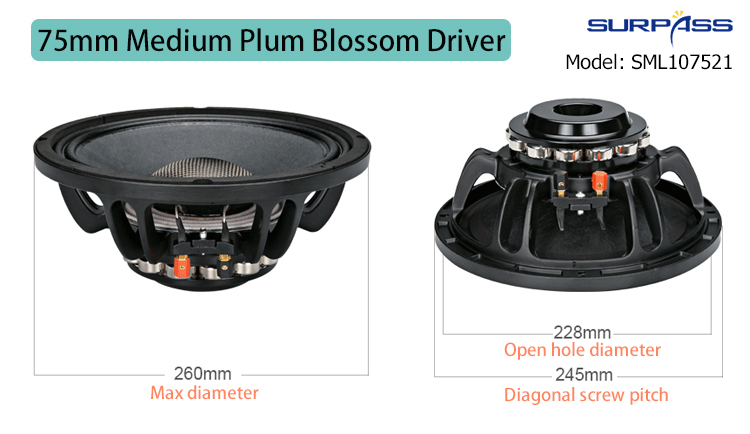

Installation aperture | About 228mm |
Diagonal screw hole | About 245mm |
Outer Diameter | About 260mm |
Magnet | Neodymium magnetic 24.5 magnet*13P |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 99 dB/1W/1m |
Frequency range | 60-3.4K Hz |
Resonant frequency | 65Hz |
Electrical Quality Factor Number | 0.53 |
Mechanical Quality Factor Value | 8.25 |
Total Quality Factor Number | 0.52 |
Effective Volume | 24 liters |
Vibration Area | 380.0cm2 |
Magnetic Force | 21.3 Txm |
Effective Mobile Quality | 39g |
Place of Origin | Guangzhou, China |
Net Weight | About 3.2KG (No packaging) |
10-inch 75mm Medium Plum Blossom Driver Features:
1. High sensitivity, high sound radiation angle
Enjoy singing as if you were personally on the scene. Restore the real voice.
2. Excellent sound quality, auditory enjoyment
Speciality imported paper basin, strong and durable, more optimized handling of the horn's high and low frequency combination to make the mid-bass more imaginative.
3. Plum blossom magnetism professional linear array
10 inch 75 core can be used for waterproofing, special for linear array speaker, keeping original sound and greatly reducing distortion rate.
4. Let music touch your soul
Very thick midfrequency, combined with the same volume box, the bass is very shocking, heavy enough, strong enough, fast enough, it is a good outdoor performance linear speaker unit.
