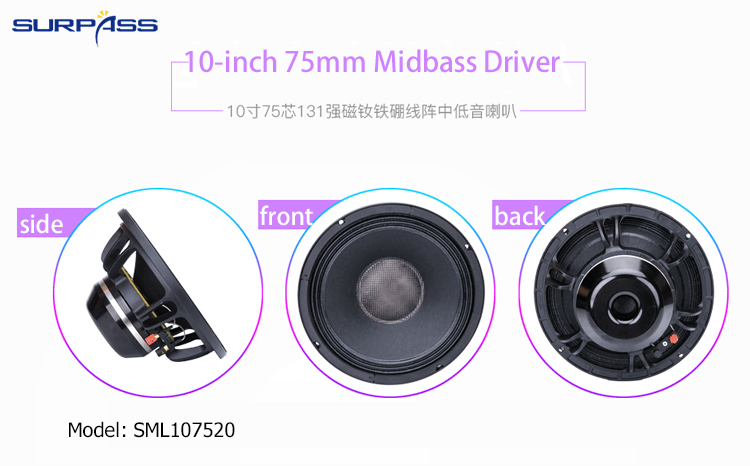

SML107520 10-inch 75mm Midbass Driver
10-inch 75-core midbass speaker 10-inch 75mm Midbass Driver
10-inch 75mm Midbass Driver Specification:
Model | SML107520 |
Description | 10-inch 75-core midbass speaker |

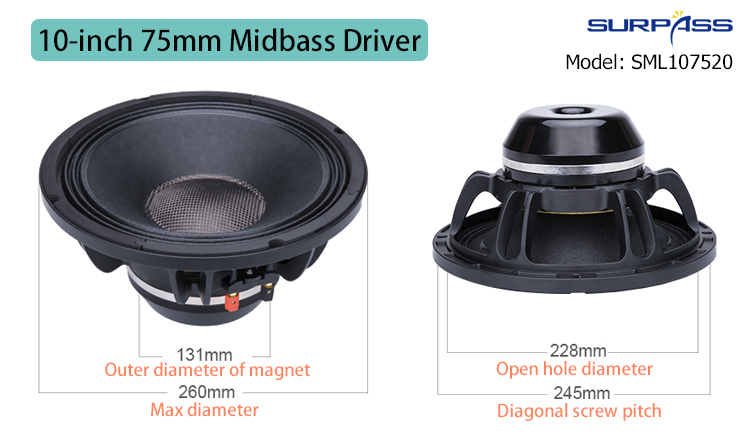

Installation aperture | About 228mm |
Diagonal screw hole | About 245mm |
Outer Diameter | About 260mm |
Magnet | NdFeB 131 magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 99 dB/1W/1m |

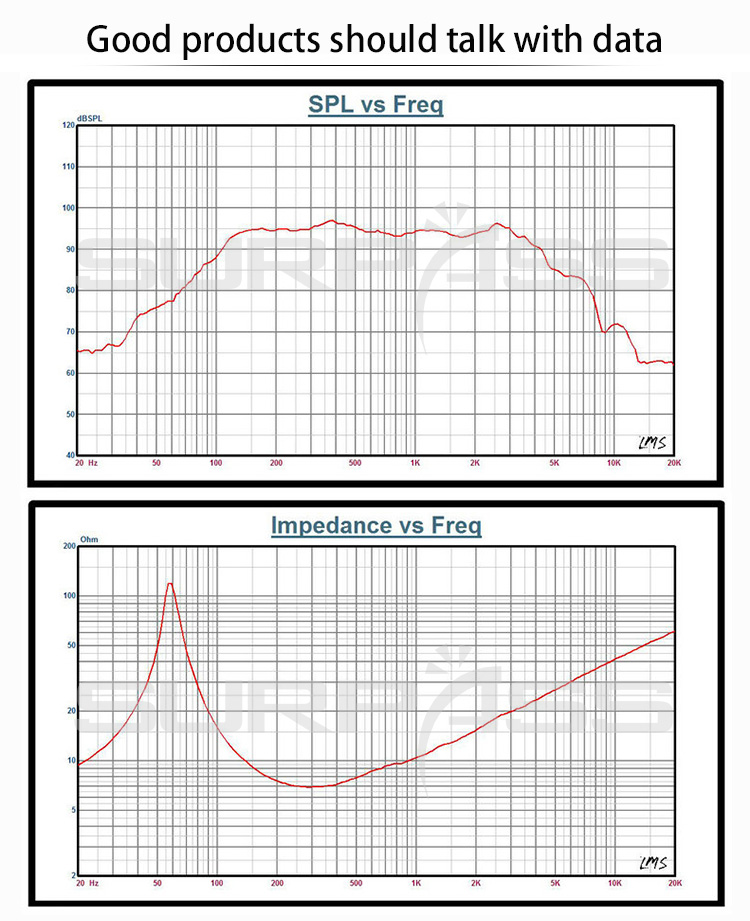

Frequency range | 45-3.8K Hz |
Resonant frequency | 65Hz |
Electrical Quality Factor Number | 0.28 |
Mechanical Quality Factor Value | 4 |
Total Quality Factor Number | 0.26 |
Effective Volume | 26 liters |
Vibration Area | 346.0cm2 |
Magnetic Force | 17.1 Txm |
Effective Mobile Quality | 33g |
Place of Origin | Guangzhou, China |
Net Weight | About 5.2KG (No packaging) |
10-inch 75mm Midbass Driver Features:
1. Experience the Beauty of Shock
10-inch large-caliber fibre bass unit, super dynamic
2. Light and thin imported varnish paper tray
Neodymium-magnetized bass units also use Malaysian paper trays to make the sound quality clearer and more exquisite. The paper tray is light paper tray, is a practical material match Nd magnetism, which makes the speaker more sensitive.
3. Nd magnetic horn unit
High quality neodymium magnetic material, high sensitivity and low distortion.
4. Strong motivation, shock feeling
Medium-bass loudspeaker, loose edge press paper basin, high elasticity modulus, round and solid tone; High-performance elastic wave, accurate location, antifatigue, good heat dissipation and ventilation.
