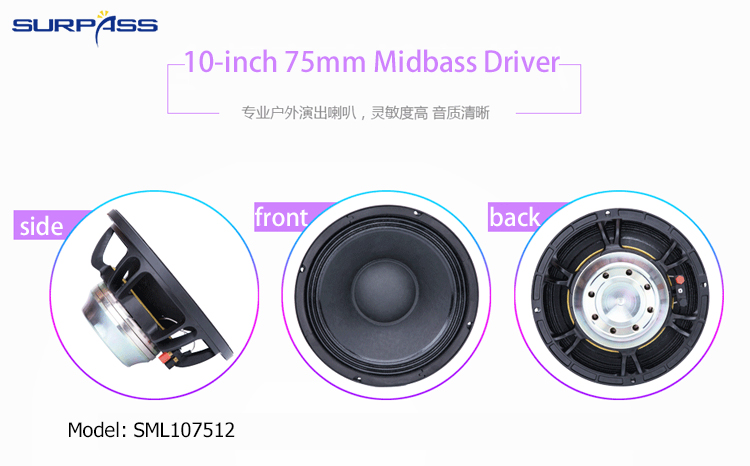

SML107512 10-inch 75mm Midbass Driver
10-inch 75-core midbass speaker 10-inch 75mm Midbass Driver
10-inch 75mm Midbass Driver Specification:
Model | SML107512 |
Description | 10-inch 75-core midbass speaker |

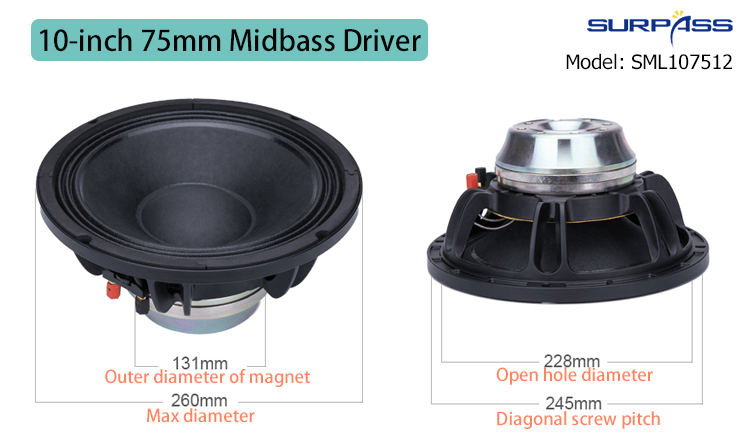

Installation aperture | About 228mm |
Diagonal screw hole | About 245mm |
Outer Diameter | About 260mm |
Magnet | NdFeB 131 magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 99.5 dB/1W/1m |
Frequency range | 45-3.5K Hz |
Resonant frequency | 57Hz |
Electrical Quality Factor Number | 0.23 |
Mechanical Quality Factor Value | 8.34 |
Total Quality Factor Number | 0.22 |
Effective Volume | 22.6 liters |
Vibration Area | 351.0cm2 |
Magnetic Force | 22.3 Txm |
Effective Mobile Quality | 59g |
Place of Origin | Guangzhou, China |
Net Weight | About 4.4KG (No packaging) |
10-inch 75mm Midbass Driver Features:
1. fine workmanship material texture, durable
Neodymium magnetic material is a very strong magnetic material. Its sound quality is higher than that of ordinary magnetic steel.
2. Imported edged paper basin
High-power imported selvage Neodymium magnetic speaker, made of imported paper basin high elastic modulus speaker and match perfect Neodymium magnetic material to make the tone mellow and firm. Accurate location, little distortion and releases natural sound.
3. Nd magnetic horn unit
High quality neodymium magnetic material, high sensitivity and low distortion.
4. Experience the real sound
Different auditory enjoyment, like the sounds of nature, high-performance linear sound quality, reduce distortion, only to meet the discerning ears. All products use high-power materials, the overall bearing power is greater.
