10-inch 75mm Midbass Driver Specification:
Model | SML107501 |
Description | 10-inch 75-core midbass speaker |

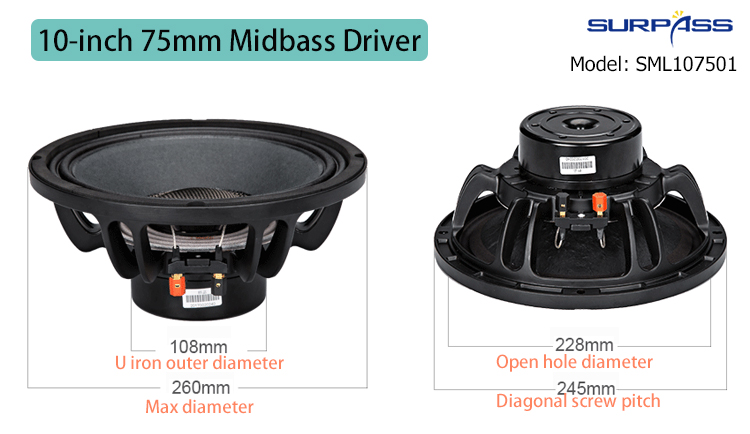

Installation aperture | About 228mm |
Diagonal screw hole | About 245mm |
Outer Diameter | About 260mm |
Magnet | Neodymium magnetic 74 magnetic |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 97 dB/1W/1m |

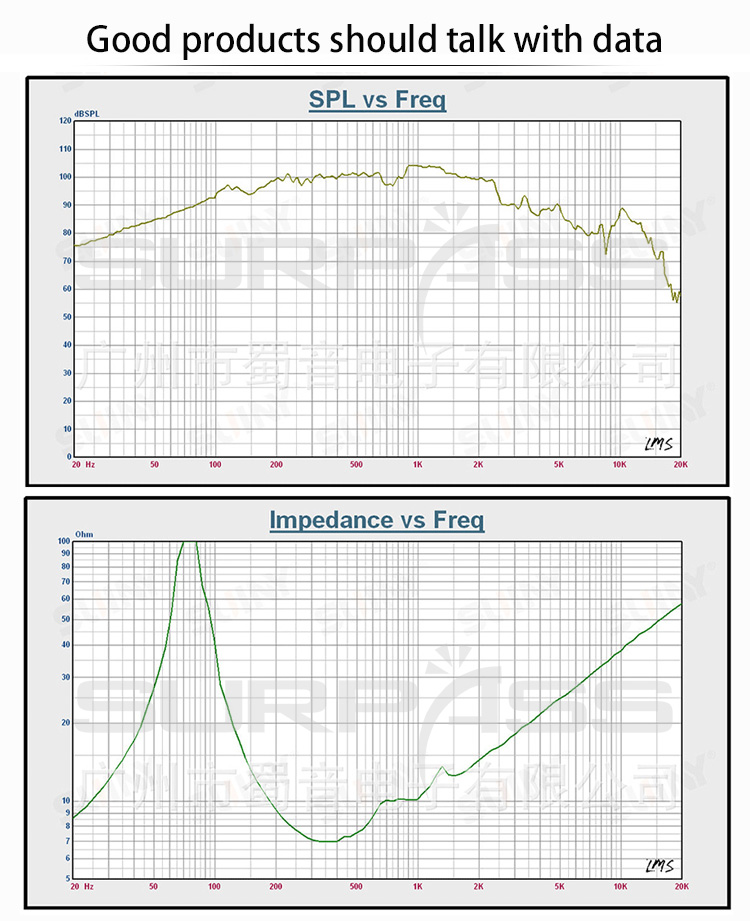

Frequency range | 50-3K Hz |
Resonant frequency | 56Hz |
Electrical Quality Factor Number | 0.29 |
Mechanical Quality Factor Value | 3.4 |
Total Quality Factor Number | 0.28 |
Effective Volume | 61 liters |
Vibration Area | 340.0cm2 |
Magnetic Force | 16 Txm |
Effective Mobile Quality | 37g |
Place of Origin | Guangzhou, China |
Net Weight | About 3.2KG (No packaging) |
10-inch 75mm Midbass Driver Features:
1. Because of profession, so worth to trust
Linear array loudspeaker unit, long-distance stage loudspeaker, medium and bass texture super stick, with excellent stability.
2. Imported loosely pressed edged paper basin
Waterproof, moisture-proof, anti-corrosion and anti-oxidation; Effectively enhance the service life of speaker at high power.
3. High-end Nd-magnet U-iron
N40SH Neodymium magnet with high density and strong magnetism is used to improve the explosive power of sound.
4. High performance Carbon Fiber dust cap
This unit uses a high performance carbon fiber dust cap, which strengthens the rigidity and toughness of the speaker and makes it clearer.

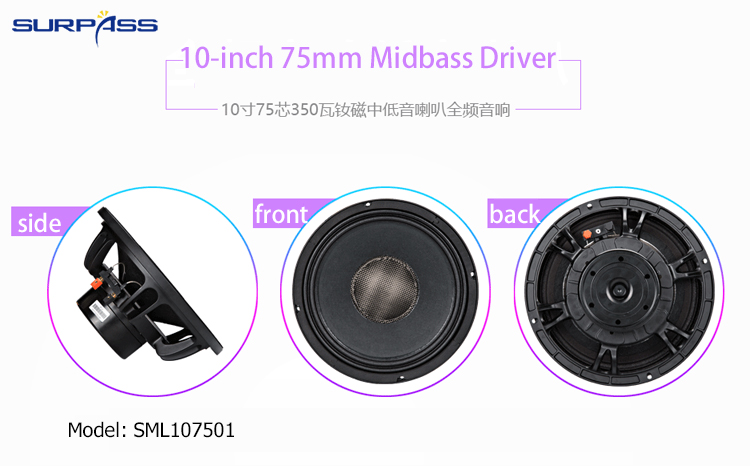

High Definition Pictures:
