75mm Neodymium Magnetic HF Driver Specification:
Model | SH7564 |
Description | 75-core Neodymium Magnetic tweeter |

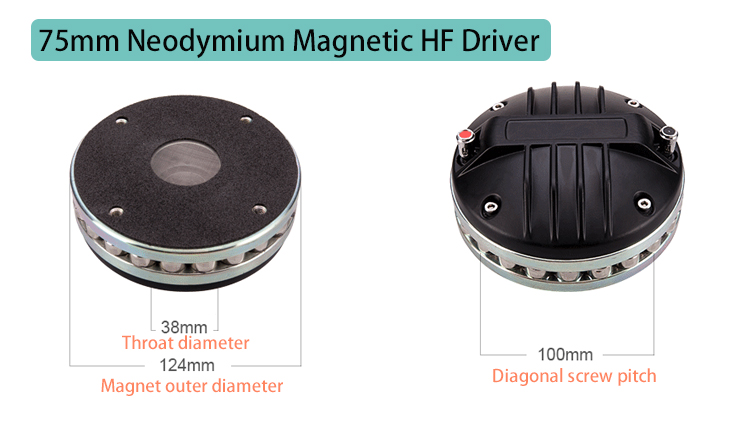

Throat diameter | 38mm |
Diagonal screw hole | 100mm |
Magnet | NdFeB |
Voice coil | 75-core copper clad aluminium coil |
Height | 5.5cm |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 80 Watts |
Maximum power | 160 Watts |

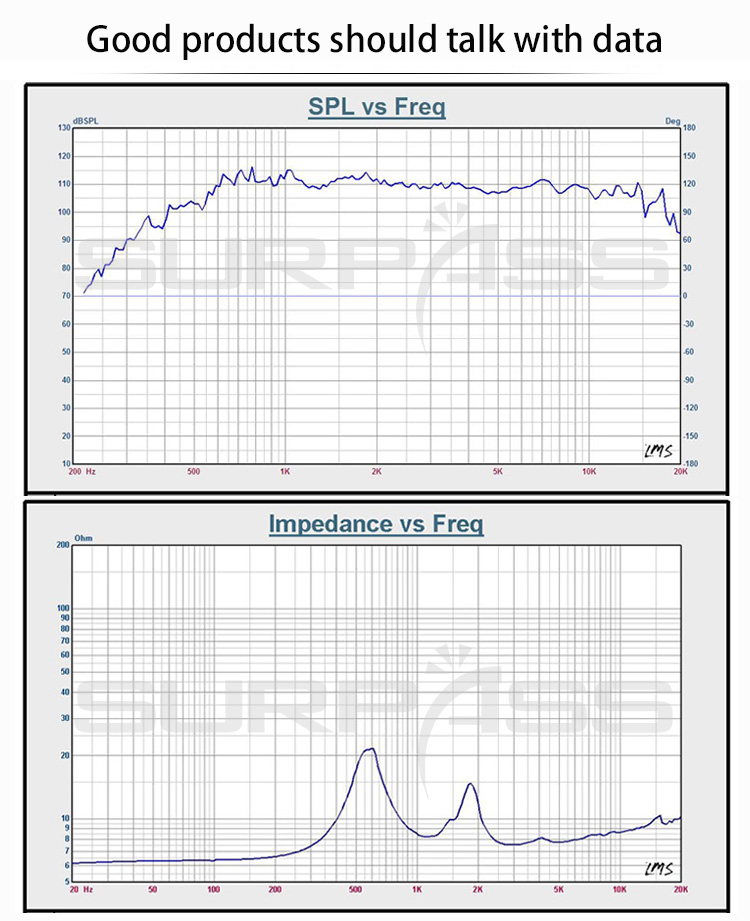

Sensitivity | 109 dB/1W/1m |
Frequency range | 0.7K-18K Hz |
Place of Origin | Guangzhou, China |
Net Weight | About 2.3KG |
75mm Neodymium Magnetic HF Driver Features:
1. High frequency and exquisite, strong penetration
Composite titanium film, more clear and exquisite tweeter, soft and non-harsh tone.
2. Linear array driver head, high quality material
Using active noise reduction technology, the surface of the tweeter film is made of polymer material, which will cancel the frequency of environmental noise, suppress and relieve the noise with almost no distortion.
3. Rubidium magnetic tweeter
Unique appearance design, all use Italian BNC original import unit process design and manufacture.
4. Brand workmanship, enough power
Designers and acoustics experts create loudspeakers that focus on acoustic performance, bringing you two enjoyments of vision and hearing.

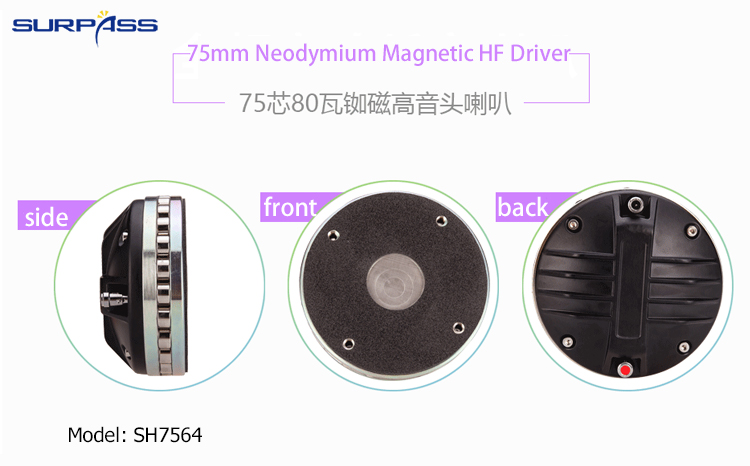

High Definition Pictures:
Brochure/Data Sheet:
SH7564 75mm Neodymium Magnetic HF Driver.pdf、
Operation Manual:
