SH7544 75mm Core Common Magnetic HF Driver
Titanium 75mm Core Common Magnetic HF Driver
75mm Core Common Magnetic HF Driver Specification:
Model | SH7544 |
Description | 75 Core Common Magnetic Tweeter |

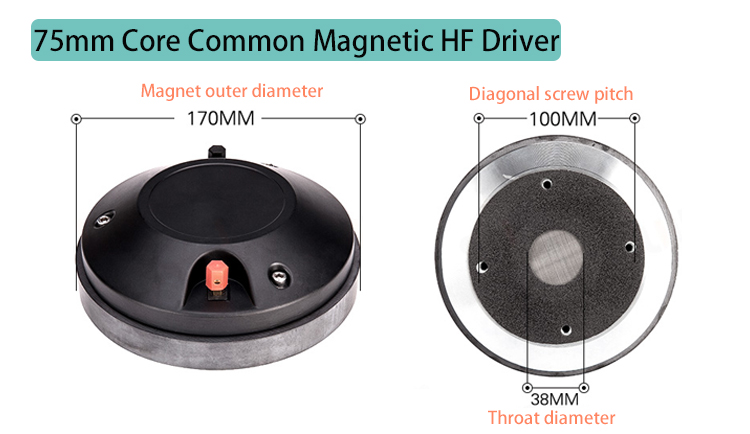

Outer diameter of magnetic steel | 170mm |
Diagonal screw hole | 100mm |
Throat diameter | 38mm |
Diaphragm material | Titanium |
Magnet | 170 magnetism of ferrite |
Voice coil | 75-core copper clad aluminium coil |
Height | About 6.4cm |
Magnetic steel material | Ferrite Y35 |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 80 Watts |
Maximum power | 160 Watts |
Sensitivity | 109 dB/1W/1m |
Frequency range | 0.5K-18K Hz |
Place of Origin | Guangzhou, China |
Net Weight | About 1.5KG |
75mm Core Common Magnetic HF Driver Features:
1. High sensitivity, mature and stable sound quality
Powered by a magnetic steel material that is well known in the electroacoustic field. Sensitivity is stronger than ordinary loudspeaker, with better response and lower distortion.
2. Thickened cast aluminium back cover, better sound quality
170 magnetic 75 core tweeter head, aluminum die-casting rear cover, good heat dissipation. High temperature resistance copper clad aluminium flat wire, high polymer Titanium film, clear and bright sound, high quality magnetic steel, strong magnetic force and long-term non-demagnetization.
3. Excellent sound quality, shock enjoyment
The audio feast stir up your auditory nerves and performed wonderful melodies everywhere. Lightweight material, exquisite workmanship, shock experience from the selection of materials, everything is just for better music.
