SH10036 100mm Neodymium Magnetic HF Driver
100-core Nd-Magnetic tweeter 100mm Neodymium Magnetic HF Driver
100mm Neodymium Magnetic HF Driver Specification:
Model | SH10036 |
Description | 100-core Neodymium Magnetic tweeter |

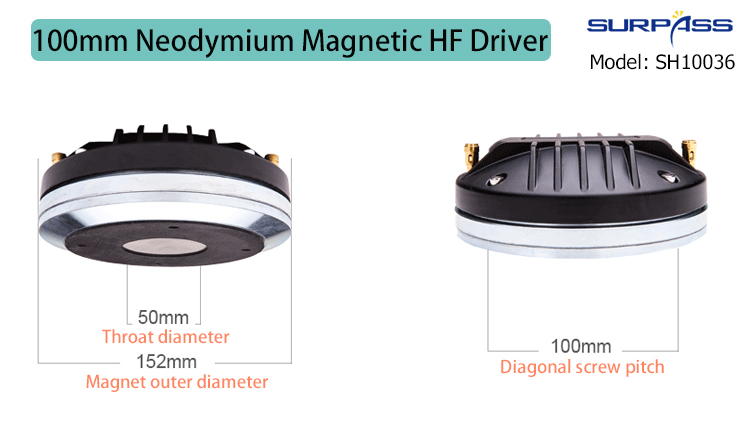

Throat diameter | 50mm |
Diagonal screw hole | 100mm |
Magnet | Nd magnetic 152 outer diameter |
Voice coil | 100-core copper clad aluminium coil |
Height | 5.5cm |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 120 Watts |
Maximum power | 240 Watts |
Sensitivity | 108 dB/1W/1m |
Frequency range | 0.5K-20K Hz |
Place of Origin | Guangzhou, China |
Net Weight | 4.2KG |
100mm Neodymium Magnetic HF Driver Features:
1. High frequency and exquisite, strong penetration
The improved 100-core tweeter has more excellent analytical ability and high sensitivity.
2. Copper-clad Aluminum flat wire voice coil
The tweeter is thick without noise, rich in sound quality, clear and clean, bright and prominent, rich and full and not stiff.
3. Professional 100-core Nd-Fe-B tweeter
100-core Neodymium magnetic space magnetism, design of symmetrical magnetic circuit, using cast aluminium back cover, more natural tone, closer to the original sound.
4. Thickening Neodymium magnetism, Ultra high power
This tweeter is designed with 100 voice coils and has high temperature resistance. The high-frequency effect of the large 50mm throat tweeter is incomparable to that of the small tweeter. The tweeter is clear loud and penetrating.
