SH4463 44mm Plum Blossom Magnetic HF Driver
44-core pure aluminum flat wire 44mm Plum Blossom Magnetic HF Driver
44mm Plum Blossom Magnetic HF Driver Specification:
Model | SH4463 |
Description | 44-core plum blossom magnetic tweeter |

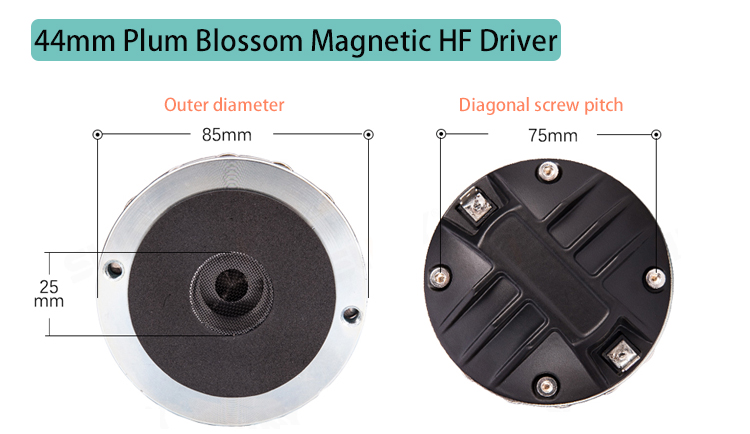

Outer diameter of magnetic steel | 85mm |
Diagonal screw hole | 75mm |
Throat diameter | 25mm |
Diaphragm material | Aluminium |
Magnet | NdFeB 85 magnetism |
Voice coil | 44-core pure aluminum flat wire |
Height | About 4.4cm |
Magnetic steel material | N38H |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 50 Watts |
Maximum power | 100 Watts |
Sensitivity | 109 dB/1W/1m |
Frequency range | 1.2K-18K Hz |
Place of Origin | Guangzhou, China |
Net Weight | About 1.5KG |
44mm Plum Blossom Magnetic HF Driver Features:
1. Ultra-high sound pressure, High-end imported Aluminum material
44-core Nd magnetic tweeter, N38H high quality magnetic steel, strong magnetism and will not demagnetize for a long time. Cast Aluminum rear cover copper ring with sound correction, timbre is more natural. As high as 50 W rated power, the sound is very clear and natural.
2. Tweeter control stabilized
Simple and generous appearance design, pure treble, let music touch your soul.
3. High quality aluminium ring, beautiful voice
Imported high-quality voice film (aluminium film), beautiful sound quality, strong power and able to meet different voice demand, economical and practical, high cost-effective. Stable mature sound quality performance, high quality rubidium magnetic tweeter assembly, strong and durable, more optimized the handling of the horn's high-frequency and low-frequency combination, so that the tweeter is more imaginative.
