SH4443 44mm Common Magnetic HF Driver
44 core copper clad aluminium flat wire 44mm Common Magnetic HF Driver
44mm Common Magnetic HF Driver Specification:
Model | SH4443 |
Description | 44 Core Common Magnetic Tweeter |

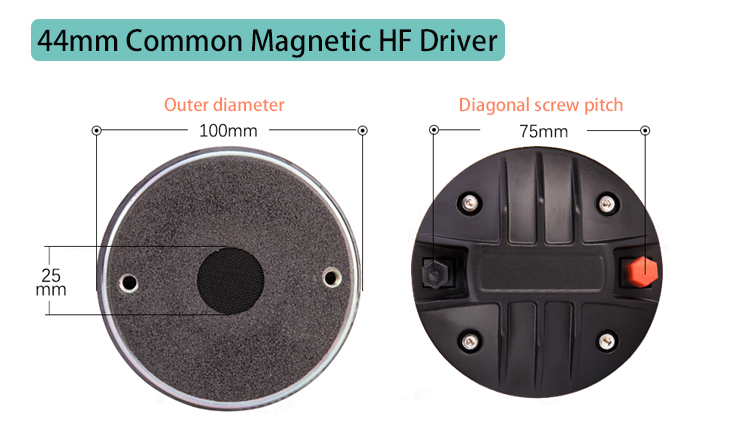

Outer diameter of magnetic steel | 100mm |
Diagonal screw hole | 75mm |
Throat diameter | 25mm |
Diaphragm material | Aluminium |
Magnet | 100 magnetism of ferrite |
Voice coil | 44-core copper clad Aluminium flat wire |
Height | About 6.1cm |
Magnetic steel material | Ferrite Y35 |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 50 Watts |
Maximum power | 100 Watts |
Sensitivity | 107 dB/1W/1m |
Frequency range | 1K-17K Hz |
Place of Origin | Guangzhou, China |
Net Weight | About 1.5KG |
44mm Common Magnetic HF DriverFeatures:
1. Voice translucent and elegant
High resolution, the voice is mellow and graceful, listened to the rhythm and reluctant to turn off
2. Sound transmission is stable and sound quality is more pleasant
Understated elegance appearance, elegant overall appearance, light gray color matching is appropriate
3. Two enjoyments of vision and hearing
Flat coils can be used for linear array or entertainment and it works very well. 44-core tweeter unit, smart sound quality and has a good musical expression.
