44mm Common Magnetic HF Driver Specification:
Model | SH4442 |
Description | 44 Core Common Magnetic Tweeter |

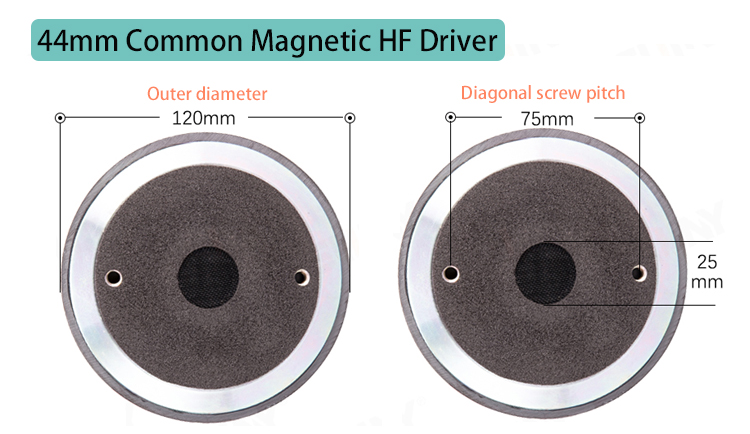

Outer diameter of magnetic steel | 120mm |
Diagonal screw hole | 75mm |
Throat diameter | 25mm |
Diaphragm material | High Polymer Albuginea |
Magnet | 120 magnetism of ferrite |
Voice coil | 44-core copper clad aluminium coil |
Height | About 4.9cm |
Magnetic steel material | Ferrite Y35 |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 50 Watts |
Maximum power | 100 Watts |
Sensitivity | 108 dB/1W/1m |
Frequency range | 1K-18K Hz |
Place of Origin | Guangzhou, China |
Net Weight | About 2.5KG |
44mm Common Magnetic HF Driver Features:
1. High restore of human voice
Let the natural melody surround the whole space and give people immersive enjoyment
2. 44 core 120 magnetic fever tweeter
China's high-end professional loudspeaker brand, buildind by 10 years of research and development chief designer and excellent imported materials
3. Making high quality audio enjoyment professionally
Strong treble is made of high quality material, pure and sweet timbre, low distortion, details appear completly, and as sweet spring pleasant to the ear, which is non-general enjoyment of innovation. Polymer white film is clearer and more delicate than general titanium film treble, soft and not harsh tone, pure treble, translucent sound quality, longer life.
4. Part of UHF section has a good sense of hierarchy
Excellent workmanship, and strict in demands. Using high performance ferrite Y36 magnet steel, easy to install, wide application range. High-end professional performance loudspeaker, wake up your ears with good sound quality.
High Definition Pictures:
Brochure/Data Sheet:
SH4442 44mm Common Magnetic HF Driver.pdf、
Operation Manual:
