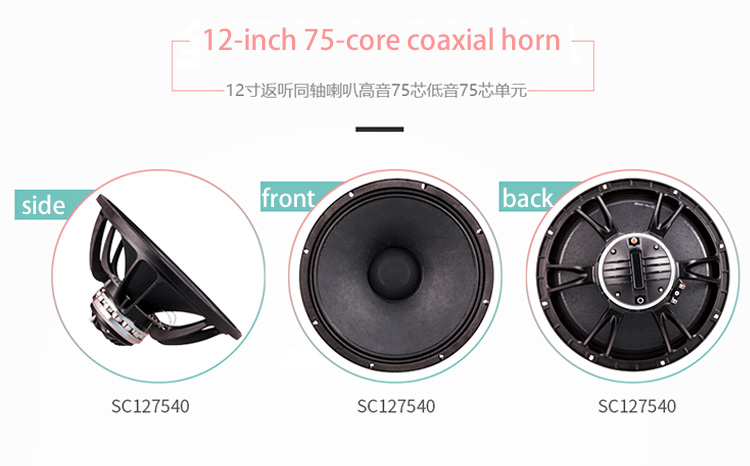

SC127540 12-inch 75-core coaxial horn
Nd-Fe-B Particle Magnetism 12-inch 75-core coaxial horn
12-inch 75-core coaxial horn Nominal specification
Product Name | 12-inch 75-core coaxial horn | Speaker Brand | Surpass |
Installation Aperture | about 282mm | Magnet | Nd-Fe-B Particle Magnetism |
Diagonal Screw Hole | about 298mm | Net Weight | 6KG (No packing,about) |
Total Height | about 170mm | Frame Material | Cast aluminum frame |
12-inch 75-core coaxial horn Technical parameter
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | Treble 80 Watts /bass 350 Watts |
Maximum power | Treble 160 Watts /bass 700 Watts |
Sensitivity | Treble 105 dB /bass 99 dB (1W/1m) |
Frequency range | 49-18000Hz |
12-inch 75-core coaxial horn T.S parameter
Resonant frequency | 45 Hz |
DC impedance | 5.6 ohm |
Number of loudspeaker electrical quality factor | 0.2 |
Mechanical Quality Factor Value of Loudspeaker | 8.0 |
Total Quality Factor Number of Speakers | 0.19 |
Effective Volume of Horn | 85 liters |
Vibration area | 532.0Cm2 |
Magnetic force | 17.6 Txm |
Effective Mobile Quality | 47g |
12-inch 75-core coaxial horn Product characteristics
1. Sound fluency and balance
Excellent in high and low extensibility, able to transmit clear-cut, detail-rich sound effects
2. Paper pots are strong and durable
Special imported paper basin, strong and durable, more optimized handling of the horn's high-frequency and low-frequency combination, so that the tweeter more imaginative
3. Out of the voice is exceptionally clear
The design of coaxial integration can easily obtain good sound effect, sound field positioning effect and clear hierarchical sense
4. Rich sense of hierarchy and permeability
The physical structure of coaxial loudspeaker is to design the tweeter and bass loudspeaker in the same speaker skillfully according to the law of sound expression
