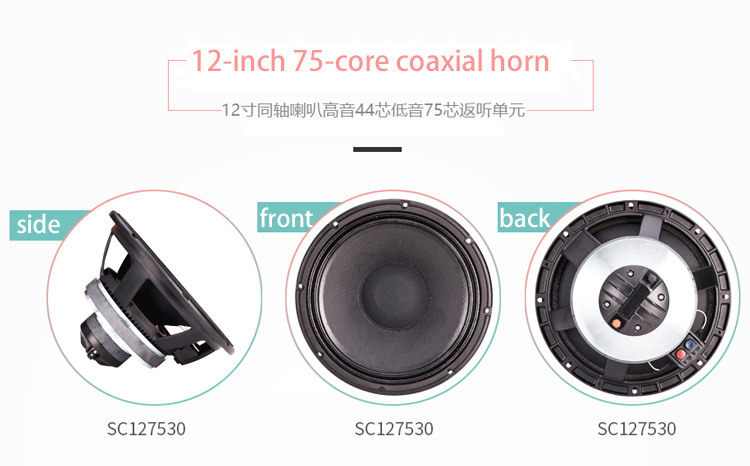

SC127530 12-inch 75-core coaxial horn
Treble 100 Magnets/Bass 190 Magnets 12-inch 75-core coaxial horn
12-inch 75-core coaxial horn Nominal specification
Product Name | 12-inch 75-core coaxial horn | Speaker Brand | Surpass |
Installation Aperture | about 280mm | Magnet | Treble 100 Magnets/Bass 190 Magnets |
Diagonal Screw Hole | about 300mm | Net Weight | 8.7KG (No packing,about) |
Total Height | about 195mm | Frame Material | Cast aluminum frame |
12-inch 75-core coaxial horn Technical parameter
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | Treble 50 Watts /bass 350 Watts |
Maximum power | Treble 100 Watts /bass 700 Watts |
Sensitivity | Treble 110 dB /bass 98 dB (1W/1m) |
Frequency range | 43-18000Hz |
12-inch 75-core coaxial horn T.S parameter
Resonant frequency | 58 Hz |
DC impedance | 5.6 ohm |
Number of loudspeaker electrical quality factor | 0.1 |
Mechanical Quality Factor Value of Loudspeaker | 5.4 |
Total Quality Factor Number of Speakers | 0.20 |
Effective Volume of Horn | 47 liters |
Vibration area | 530.0Cm2 |
Magnetic force | 25 Txm |
Effective Mobile Quality | 62g |
12-inch 75-core coaxial horn Product characteristics
1. Enjoyment as personally on the scene
The coaxial horn's strong expressiveness on the bass makes its sound level more distinct and details more prominent
2. Soft and pleasant to listen, the sound quality of big international Brands
Excellent sound quality comes from Brand
3. Special frequency division horn: coaxial
It has the characteristic of full-frequency horn in structure, that is, two dividing-frequency horns are on the same axis, and the vibration diaphragm surface is overlapped. In fact, it is equivalent to forming a point sound source by combining them
4. Extremely high phase fidelity
It has the characteristics of high phase fidelity of full-frequency horn and can output more natural sound in the form of standard point source
5. German craftsmanship is impeccable
Chief Designer and Acoustic Experts Create Professional Speakers with Acoustic Performance to Enjoy Visual and Audio Enjoyment
