SML1210007 12-inch 100-core Bass Speaker
Aerospace magnet 12-inch 100-core Bass Speaker
Aerospace magnet 12-inch 100-core Bass Speaker
Aerospace magnet 12-inch 100-core Bass Speaker Specification:
Model | SML1210007 |
Description | 12-inch 100-core Bass Speaker |
Installation aperture | About 284mm |
Outer diameter | About 316mm |
Diagonal screw hole | About 302mm |
Height | About 137mm |
Magnet | Aerospace magnet 220 magnet |
Voice Coil | 100 core flat wire winding |
Drum paper | Imported Taiwan paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
Minimum Impedance | 6 ohm |
Rated power | 500 Watts |
Maximum power | 1000 Watts |
Sensitivity | 95 dB (1W/1m) |
Frequency range | 50-2.2K Hz |
DC impedance | 5.2 ohm |
Resonant frequency | 51Hz |
Electrical Quality Factor Number | 0.33 |
Mechanical Quality Factor Value | 8.11 |
Total Quality Factor Number | 0.31 |
Effective Volume | 39 liters |
Vibration Area | 547 cm2 |
Magnetic Force | 23 Txm |
Effective Mobile Quality | 104g |
Place of Origin | Guangzhou, China |
Net Weight | About 11.3KG |

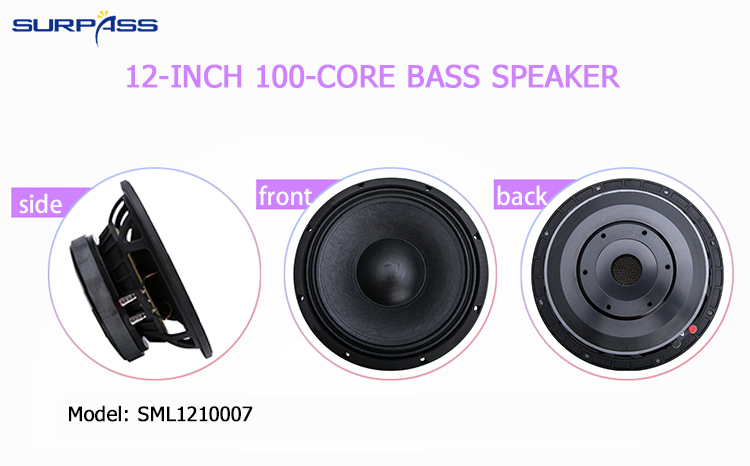

Aerospace magnet 12-inch 100-core Bass Speaker

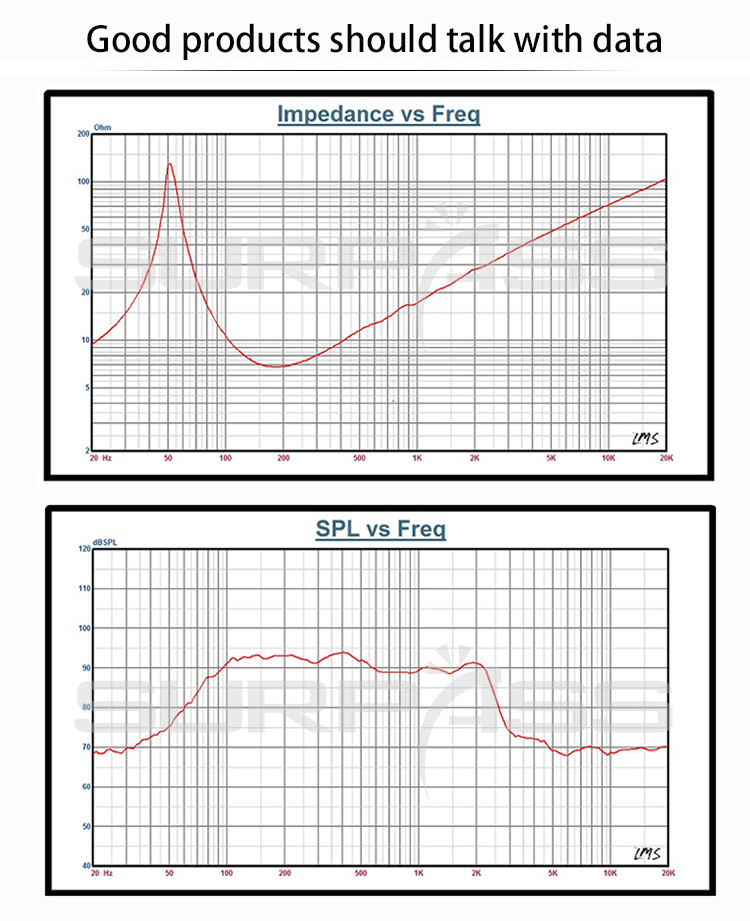

Aerospace magnet 12-inch 100-core Bass Speaker detail images:
Aerospace magnet 12-inch 100-core Bass Speaker
Aerospace magnet 12-inch 100-core Bass Speaker
