SML127582 12-inch 75-core Neodymium Magnet Midbass Driver
12-inch 75-core Neodymium Magnet Midbass Driver
12-inch 75-core Neodymium Magnet Midbass Driver
12-inch 75-core Neodymium Magnet Midbass Driver Specification:
Model | SML127582 |
Description | 12-inch 75-core Neodymium Magnet Midbass Driver |
Installation aperture | About 275mm |
Outer diameter | About 310mm |
Diagonal screw hole | About 296mm |
Height | About 183mm |
Magnet | NdFeB 74 magnetic |
Voice Coil | 75 core double section flat wire |
Drum paper | Imported JBL paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
Minimum Impedance | 6 ohm |
Rated power | 500 Watts |
Maximum power | 1000 Watts |
Sensitivity | 97 dB (1W/1m) |
Frequency range | 58-3.5K Hz |
DC impedance | 5.3 ohm |
Resonant frequency | 58Hz |
Electrical Quality Factor Number | 0.39 |
Mechanical Quality Factor Value | 4.3 |
Total Quality Factor Number | 0.36 |
Effective Volume | 68.1 liters |
Vibration Area | 544 cm2 |
Magnetic Force | 17.7 Txm |
Effective Mobile Quality | 59g |
Place of Origin | Guangzhou, China |
Net Weight | About 3.3KG |
12-inch 75-core Neodymium Magnet Midbass Driver

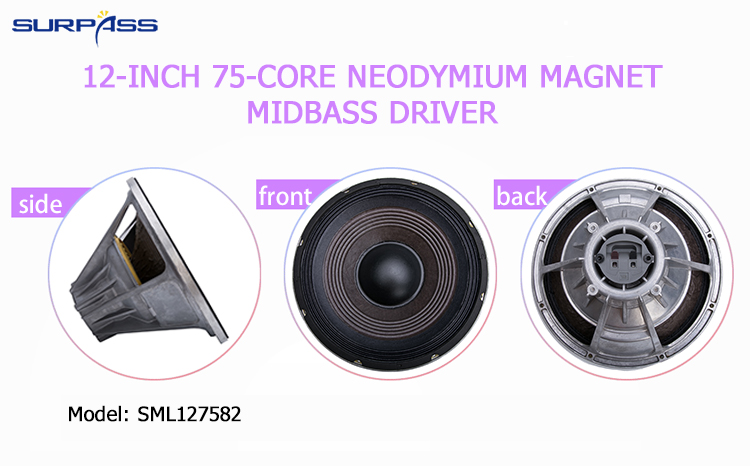

12-inch 75-core Neodymium Magnet Midbass Driver detail images:
12-inch 75-core Neodymium Magnet Midbass Driver
12-inch 75-core Neodymium Magnet Midbass Driver
