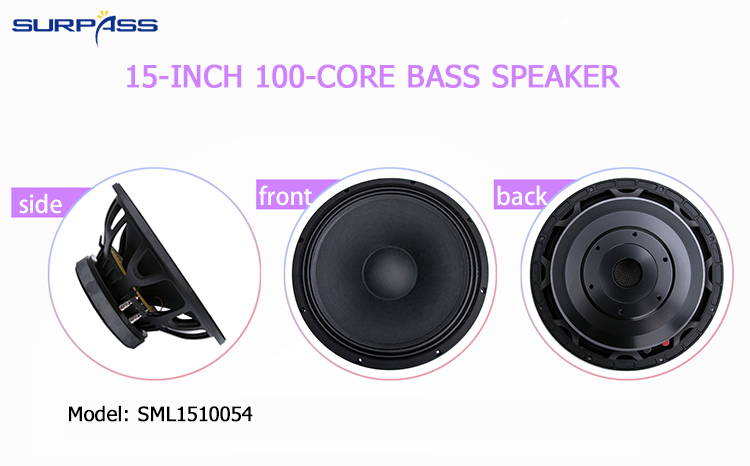

SML1510054 15-inch 100-core Bass Speaker
100 Core Flat Wire Winding 15-inch 100-core Bass Speaker
100 Core Flat Wire Winding 15-inch 100-core Bass Speaker
100 Core Flat Wire Winding 15-inch 100-core Bass Speaker Specification:
Model | SML1510054 |
Description | 15-inch 100-core Bass Speaker |
Installation aperture | About 360mm |
Outer diameter | About 393mm |
Diagonal screw hole | About 373mm |
Height | About 179mm |
Magnet | Aerospace magnet 220 magnet |
Voice Coil | 100 core flat wire winding |
Drum paper | Imported Taiwan paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
Minimum Impedance | 6 ohm |
Rated power | 600 Watts |
Maximum power | 1200 Watts |
Sensitivity | 98 dB (1W/1m) |
Frequency range | 42-2.3K Hz |
DC impedance | 5.5 ohm |
Resonant frequency | 42Hz |
Electrical Quality Factor Number | 0.35 |
Mechanical Quality Factor Value | 22.5 |
Total Quality Factor Number | 0.34 |
Effective Volume | 161 liters |
Vibration Area | 886 cm2 |
Magnetic Force | 19.9 Txm |
Effective Mobile Quality | 197g |
Place of Origin | Guangzhou, China |
Net Weight | About 11.8KG |
100 Core Flat Wire Winding 15-inch 100-core Bass Speaker

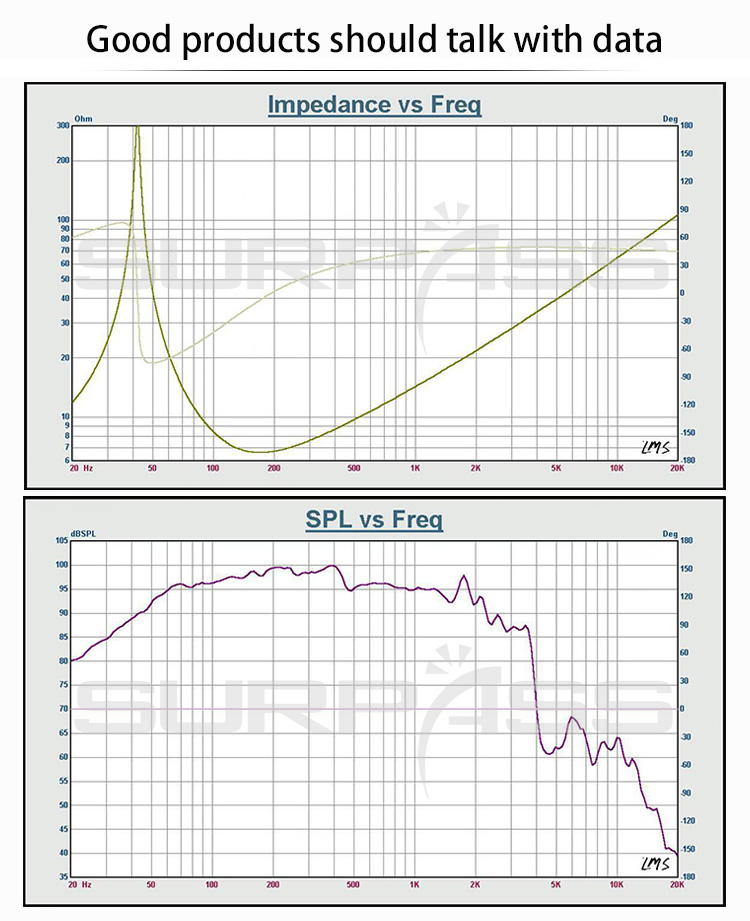

100 Core Flat Wire Winding 15-inch 100-core Bass Speaker detail images:
100 Core Flat Wire Winding 15-inch 100-core Bass Speaker
100 Core Flat Wire Winding 15-inch 100-core Bass Speaker
