Five Zone PA Mixer Amplifier Independent Volume Control
SP-60FU(60W), SP-80FU(80W), SP-120FU(120W), SP-200FU(200W),
SP-300FU(300W), SP-400FU(400W), SP-500FU(500W), SP-650FU(650W)
Feature:
▪ 5 Zones Mixer Amplifier with audio source inputs for paging & background music system.
▪ 5 Zones speaker outputs independent volume control, elegant appearance and high reliable performance.
▪ Rack-mount design 19’’ 2U height for commercial and industrial public address.
▪ This 5 Zone Mixer Amplifier integrate pre amplifier and power amplifier.
▪ Ideal for classroom, retail store, small restaurant, or office background music and paging system .
▪ Rated power from 60W, 80W, 120W, 200W, 300W, 400W, 500W, 650W.
▪ 70V-100V and low impedance 4Ω-16Ω speaker outputs for versatile connections.
▪ Built-in Bluetooth, USB, Mp3 and FM.
▪ Mic 1 with priority function.
▪ 2 Mic inputs (6.3mm jack), 2 AUX inputs by RCA on rear panel.
▪ One RCA AUX output on the rear panel.
▪ 12 knobs with individual volume control for Zone 1-5, Mic1-2, AUX1-2, Mp3, bass and treble.
▪ LED indicators for power, protect and signals.
▪ With natural cooling fan to control internal temperature.
▪ Overall protection of short-circuit, overload and high temperature to avoid any damage.
▪ Warranty of 3 years with CE certificate.
Specification:
Model | SP-60FU | SP-80FU | SP-120FU | SP-200FU | SP-300FU | SP-400FU | SP-500FU | SP-650FU |
Description | 5 Zone PA Mixer Amplifier |
Rated Power | 60W | 80W | 120W | 200W | 300W | 400W | 500W | 650W |
Built-in Sources | Bluetooth, USB/Mp3 & FM, 2 Mic, 2 Aux |
Speaker Output | 100V-70V & 4Ω-16Ω |
Frequency Response | 80Hz~16KHz(±3dB) |
THD | <0.1% at MIC1 and 2: 66dB; Aux1 and 2: 70dB |
S/N Ratio | Microphone 1and 2: 66dB; Aux1 and 2: 70dB |
Input | MIC1-2: 600Ω 2.0--4.0MV, AUX1-2: 15KΩ 775MV imbalance |
AUX Output | 600Ω 1V (0dB) |
Volume Control | Zone 1-5, Mic1-2, AUX1-2, Mp3 |
Tone Control | BASS: 100Hz (±10dB), TREBLE: 15kHz (±10dB) |
Mute Function | MIC 1 signal controls other input signals |
Cooling Method | Automatic FAN strong air cooling method |
Protection | Overheating,overload,short circuit,alarm protection |
Power Supply | AC 220~240V, 50/60Hz |
Power Consumption | 90W | 120W | 180W | 280W | 430W | 580W | 700W | 900W |

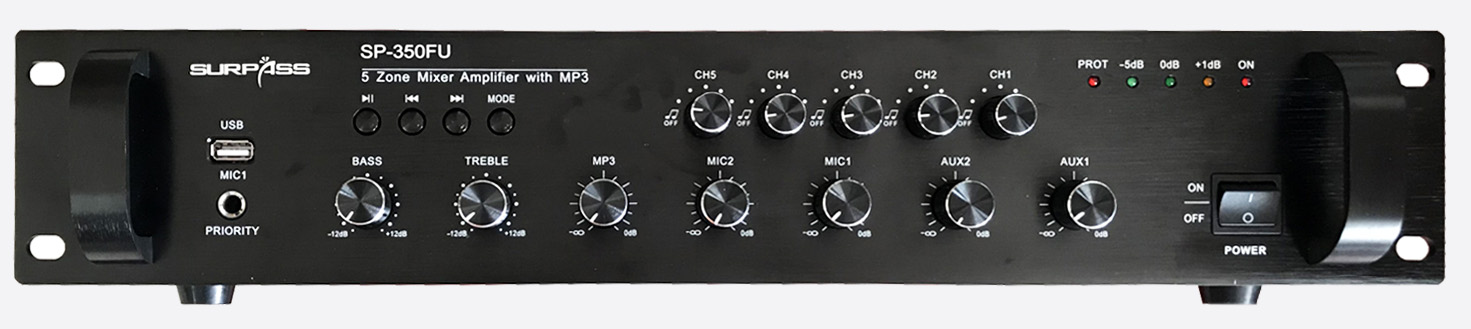

High Definition Pictures:
