SP-MR460,SP-MR4150,SP-MR4200 Four Zone PA Mixer Amplifier Independent Volume Control
60W,150W,200W 4 channel public address mixing amplifier with Bluetooth,USB,Mp3,FM
Four Zone PA Mixer Amplifier Independent Volume Control
SP-MR460(60W), SP-MR4150(150W)/SP-MR4200(200W)
Feature:
▪ 4 Zones mixer amplifier with audio source inputs for paging & background music system.
▪ 4 Zones speaker outputs independent volume control, elegant appearance and high reliable performance.
▪ Desktop design 1.5U height for commercial and industrial public address.
▪ This 4 Zone Mixer Amplifier integrate pre amplifier and power amplifier.
▪ Ideal for classroom, retail store, small restaurant, or office background music and paging system .
▪ Rated power from 60W, 150W, 200W.
▪ Built-in Bluetooth, USB & Mp3/FM with IR remote control.
▪ 70V-100V and low impedance 4Ω-16Ω speaker outputs for versatile connections.

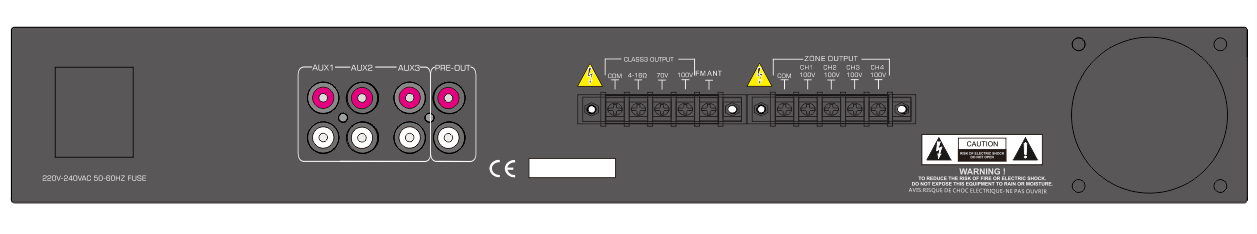

▪ 2 Mic inputs on front panel (6.3mm jack), 3 AUX inputs by RCA on rear panel.
▪ One RCA line output for external mixer or amplifier.

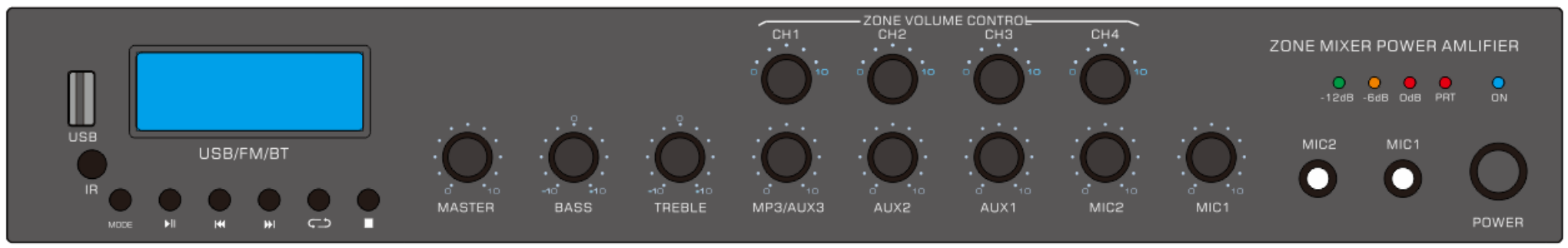

▪ 12 knobs with individual volume control for Zone 1-4, Mic1-2, AUX1-2, AUX3/Mp3, master, bass and treble.
▪ LED indicators for power, protect and signal.
▪ With natural cooling fan to control internal temperature.
▪ Adopt new circuit design, all double-sided PCB, and SMT manufacturing technique, greatly improve stability.
▪ Overall protection of short-circuit, overload and high temperature to avoid any damage.
▪ Warranty of 3 years with CE certificate.
Specification:
Model | SP-MR460 | SP-MR4150 | SP-MR4200 |
Description | 4 Zone PA Mixer Amplifier | ||
Rated Power Output | 60W | 150W | 200W |
Built-in Sources | Bluetooth,USB/Mp3 on front panel, with IR remote control FM tuner with ANT on rear panel, with IR remote control | ||
Speaker Output | 100V-70V & 4Ω-16Ω | ||
Frequency Response | 80Hz~20KHz | ||
THD | <0.5% at 1kHz 100V -3dB | ||
S/N Ratio | 75 dB | ||
AUX/MIC | AUX1-3: 500mV/10KΩ, MIC1-2: 1-6mV, PRE-Out: 0.775V(0dB) | ||
Volume Control | Zone 1-4, Mic1-2, AUX1-2, AUX3/Mp3 | ||
Tone Adjustment Range | BASS: 100Hz (±10dB), TREBLE: 10kHz (±10dB) | ||
Cooling Method | Automatic FAN strong air cooling method | ||
Power Supply | AC 110~240V, 50/60Hz | ||
Power Consumption | 84W | 198W | 265W |
Finishing | Metal panel, 1.5U, silk-printed black | ||
Net Weight | 7.2kg | 9.6kg | 10.6kg |
Product Dimension | 450(W)×250(D)×66(H)mm | ||
