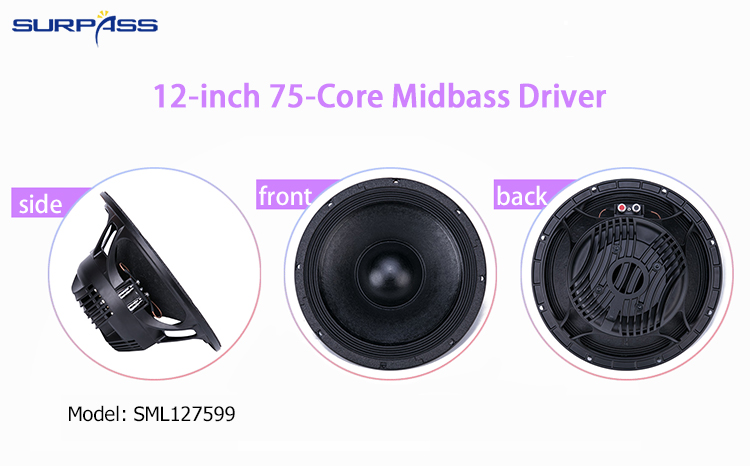

SML127599 12-inch 75-Core Midbass Driver

Neodymium Internal magnetism 12-inch 75-Core Midbass Driver

SML127599 12-inch 75-Core Midbass Driver Specification:

Model	SML127599
Description	12-inch 75-core midbass speaker
Installation aperture	About 283mm
Diagonal screw hole	About 303mm
Outer Diameter	About 315mm
Height	About 135mm
Magnet material	Neodymium Internal magnetism
Voice coil	75-core Copper clad aluminium inner and outer winding
Cone paper	Import paper basin
Frame material	Cast aluminum frame
Rated Impedance	8 ohm
DC Impedance	6 ohm
Rated Power	350 Watts
Maximum power	700 Watts
Sensitivity	99 dB/1W/1m
Frequency range	53-4.5K Hz
Resonant frequency	55Hz
Electrical Quality Factor Number	0.3
Mechanical Quality Factor Value	5.15
Total Quality Factor Number	0.28
Effective Volume	72 liters
Vibration Area	531 cm2
Magnetic Force	17.6 Txm
Effective Mobile Quality	46g
Place of Origin	Guangzhou, China
Net Weight	About 4.4KG (No packaging)
