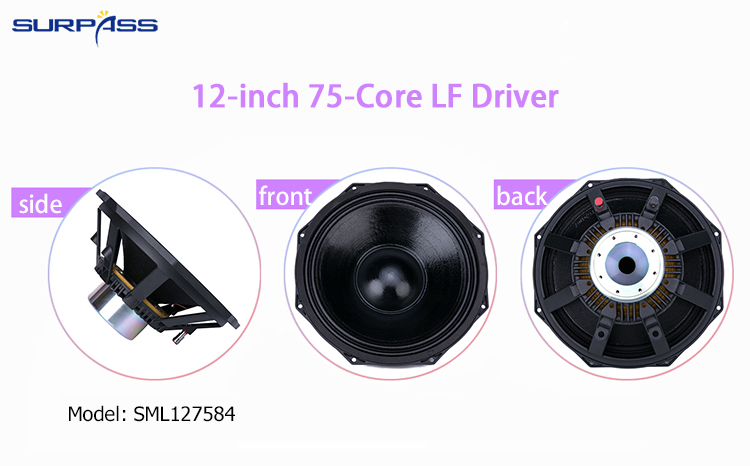

SML127584 12-inch 75-Core LF Driver
NdFeB Internal magnetism 74mm 12-inch 75-Core LF Driver
NdFeB Internal magnetism 74mm 12-inch 75-Core LF Driver
SML127584 12-inch 75-Core LF Driver Specification:
Model | SML127584 |
Description | 12-inch 75-core bass speaker |
Installation aperture | About 282mm |
Diagonal screw hole | About 315mm |
Outer Diameter | About 310mm |
Height | About 140mm |
Magnet material | NdFeB Internal magnetism 74mm |
Voice coil | 75-core inner and outer winding circle wire |
Cone paper | Malaysia paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 98 dB/1W/1m |
Frequency range | 48-3K Hz |
Resonant frequency | 51Hz |
Electrical Quality Factor Number | 0.3 |
Mechanical Quality Factor Value | 5.2 |
Total Quality Factor Number | 0.28 |
Effective Volume | 70.4 liters |
Vibration Area | 539 cm2 |
Magnetic Force | 17.6 Txm |
Effective Mobile Quality | 56g |
Place of Origin | Guangzhou, China |
Net Weight | About 3KG (No packaging) |
