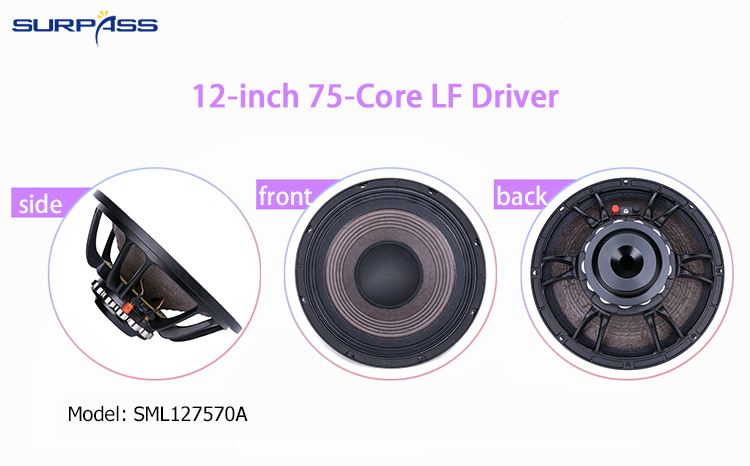

SML127570A 12-inch 75-Core LF Driver
Granular magnetism(Neodymium) 12-inch 75-Core LF Driver
Granular magnetism(Neodymium) 12-inch 75-Core LF Driver
SML127570A 12-inch 75-Core LF Driver Specification:
Model | SML127570A |
Description | 12-inch 75-core bass speaker |
Installation aperture | About 282mm |
Diagonal screw hole | About 298mm |
Outer Diameter | About 316mm |
Height | About 130mm |
Magnet material | Granular magnetism(Neodymium) |
Voice coil | 75-core Copper clad aluminium inner and outer winding |
Cone paper | Import JBL paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 99 dB/1W/1m |
Frequency range | 55-3K Hz |
Resonant frequency | 54Hz |
Electrical Quality Factor Number | 0.28 |
Mechanical Quality Factor Value | 3.8 |
Total Quality Factor Number | 0.27 |
Effective Volume | 45 liters |
Vibration Area | 522 cm2 |
Magnetic Force | 26.4 Txm |
Effective Mobile Quality | 75g |
Place of Origin | Guangzhou, China |
Net Weight | About 3.5KG (No packaging) |
